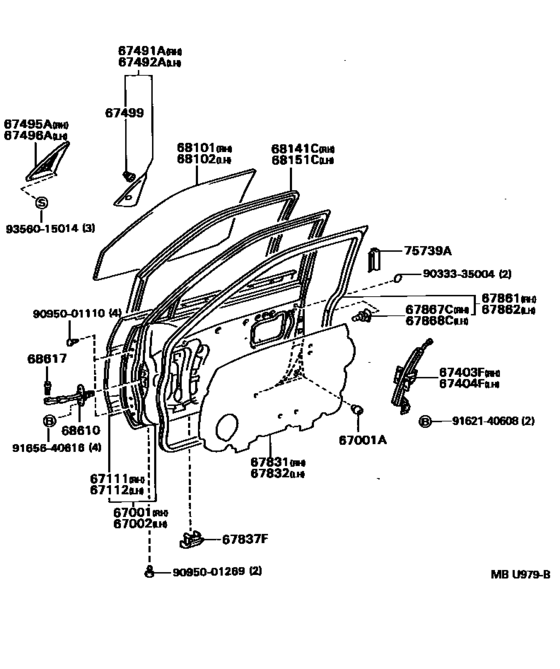

Front Door Panel & Glass ([09.1990 - ] (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-16490 Panel Sub-Assy, Front Door, Rh[09.1990 - 05.1992] EL40 |
67001-16490 |
US $761.49 |
||
| replacement | |||||
|
67001
|
67001
67001-16491 Panel Sub-Assy, Front Door, Rh[09.1990 - 05.1992] EL40 |
67001-16491 |
US $761.49 |
||
|
67001
|
67001
67001-16491 Panel Sub-Assy, Front Door, Rh[05.1992 - 08.1992] EL40 |
67001-16491 |
US $761.49 |
||
|
67001
|
67001
67001-16561 Panel Sub-Assy, Front Door, Rh[08.1992 - 09.1994] EL40 |
67001-16561 |
US $793.52 |
||
|
67001A
|
67001A
90541-09079 Cushion(For Luggage Compartment Door Panel)[09.1990 - 09.1994] EL40 |
90541-09079 |
US $3.20 |
||
|
67002
|
67002
67002-16430 Panel Sub-Assy, Front Door, Lh[09.1990 - 05.1992] EL40 |
67002-16430 |
US $761.49 |
||
| replacement | |||||
|
67002
|
67002
67002-16431 Panel Sub-Assy, Front Door, Lh[09.1990 - 05.1992] EL40 |
67002-16431 |
US $761.49 |
||
|
67002
|
67002
67002-16431 Panel Sub-Assy, Front Door, Lh[05.1992 - 08.1992] EL40 |
67002-16431 |
US $761.49 |
||
|
67002
|
67002
67002-16501 Panel Sub-Assy, Front Door, Lh[08.1992 - 09.1994] EL40 |
67002-16501 |
US $793.52 |
||
|
67111
|
67111
67111-16250 Panel, Front Door, Outer Rh[09.1990 - 09.1994] EL40 |
67111-16250 |
US $324.69 |
||
|
67112
|
67112
67112-16210 Panel, Front Door, Outer Lh[09.1990 - 09.1994] EL40 |
67112-16210 |
US $324.69 |
||
|
67403F
|
67403F
67403-16110 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [09.1990 - 03.1992] EL40 |
67403-16110 |
US $29.99 |
||
| replacement | |||||
|
67403F
|
67403F
67403-16100 Frame Sub-Assy, Front Door, Rear Lower Rh[09.1990 - 03.1992] EL40 |
67403-16100 |
US $27.08 |
||
|
67403F
|
67403F
67403-16111 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [03.1992 - 06.1992] EL40 |
67403-16111 |
US $29.99 |
||
| replacement | |||||
|
67403F
|
67403F
67403-16100 Frame Sub-Assy, Front Door, Rear Lower Rh[03.1992 - 06.1992] EL40 |
67403-16100 |
US $27.08 |
||
|
67403F
|
67403F
67403-16112 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [06.1992 - 09.1994] EL40 |
67403-16112 |
US $29.99 |
||
| replacement | |||||
|
67403F
|
67403F
67403-16100 Frame Sub-Assy, Front Door, Rear Lower Rh[06.1992 - 09.1994] EL40 |
67403-16100 |
US $27.08 |
||
|
67404F
|
67404F
67404-16110 Frame Sub-Assy, Front Door, Rear Lower LhFRONT DOOR, REAR LOWER LH [09.1990 - 03.1992] EL40 |
67404-16110 |
US $29.99 |
||
| replacement | |||||
|
67404F
|
67404F
67404-16100 Frame Sub-Assy, Front Door, Rear Lower Lh[09.1990 - 03.1992] EL40 |
67404-16100 |
US $27.08 |
||
|
67404F
|
67404F
67404-16111 Frame Sub-Assy, Front Door, Rear Lower LhFRONT DOOR, REAR LOWER LH [03.1992 - 06.1992] EL40 |
67404-16111 |
US $29.99 |
||
| replacement | |||||
|
67404F
|
67404F
67404-16100 Frame Sub-Assy, Front Door, Rear Lower Lh[03.1992 - 06.1992] EL40 |
67404-16100 |
US $27.08 |
||
|
67404F
|
67404F
67404-16112 Frame Sub-Assy, Front Door, Rear Lower LhFRONT DOOR, REAR LOWER LH [06.1992 - 09.1994] EL40 |
67404-16112 |
US $29.99 |
||
| replacement | |||||
|
67404F
|
67404F
67404-16100 Frame Sub-Assy, Front Door, Rear Lower Lh[06.1992 - 09.1994] EL40 |
67404-16100 |
US $27.08 |
||
|
67491A
|
67491A
67491-16130
Garnish, Front Door Lower Frame Bracket, Rh
[09.1990 - 09.1994] EL40 |
67491-16130 |
— | ||
|
67491A
|
67491A
67491-16140 Garnish, Front Door Lower Frame Bracket, RhFRONT DOOR LOWER FRAME BRACKET, RH [09.1990 - 09.1994] EL40..LHD W(OUTER RR VIEW MIRROR) |
67491-16140 |
US $18.64 |
||
|
67492A
|
67492A
67492-16130
Garnish, Front Door Lower Frame Bracket, Lh
[09.1990 - 09.1994] EL40 |
67492-16130 |
— | ||
|
67492A
|
67492A
67492-16140 Garnish, Front Door Lower Frame Bracket, LhFRONT DOOR LOWER FRAME BRACKET, LH [09.1990 - 09.1994] EL40..LHD W(OUTER RR VIEW MIRROR) |
67492-16140 |
US $18.64 |
||
|
67495A
|
67495A
67495-16080 Cover, Front Door Front Lower Frame, Upper Rh[09.1990 - 09.1994] EL40 |
67495-16080 |
US $34.36 |
||
|
67496A
|
67496A
67496-16080 Cover, Front Door Front Lower Frame, Upper Lh[09.1990 - 09.1994] EL40 |
67496-16080 |
US $34.36 |
||
|
67499
|
67499
67499-16010
Retainer, Front Door Lower Frame Bracket Garnish
[12.1992 - 09.1994] EL40 |
67499-16010 |
— | ||
|
67499
|
67499
67499-32010
Retainer, Front Door Lower Frame Bracket Garnish
[09.1990 - 12.1992] EL40 |
67499-32010 |
— | ||
|
67831
|
67831
67831-16260 Cover, Front Door Service Hole, RhFRONT DOOR SERVICE HOLE, RH [08.1992 - 09.1994] EL40..LHD..GEN W(POWER WINDOW) |
67831-16260 |
US $15.58 |
||
|
67831
|
67831
67831-16270 Cover, Front Door Service Hole, Rh[09.1990 - 11.1990] EL40 |
67831-16270 |
US $12.52 |
||
|
67831
|
67831
67831-16330 Cover, Front Door Service Hole, RhFRONT DOOR SERVICE HOLE, RH [11.1990 - 09.1994] EL40 |
67831-16330 |
US $15.58 |
||
|
67831
|
67831
67831-16340 Cover, Front Door Service Hole, Rh[11.1990 - 08.1992] EL40..RHD W(RADIO); EL40..LHD W(RADIO) |
67831-16340 |
US $15.58 |
||
|
67831
|
67831
67831-16350 Cover, Front Door Service Hole, Rh[08.1992 - 09.1994] EL40..LHD..GEN W(POWER WINDOW & SPEAKER) |
67831-16350 |
US $15.58 |
||
|
67832
|
67832
67832-16140 Cover, Front Door Service Hole, Lh[09.1990 - 11.1990] EL40 |
67832-16140 |
US $12.52 |
||
|
67832
|
67832
67832-16200 Cover, Front Door Service Hole, Lh[11.1990 - 09.1994] EL40 |
67832-16200 |
US $15.58 |
||
|
67832
|
67832
67832-16210 Cover, Front Door Service Hole, Lh[08.1992 - 09.1994] EL40..LHD..GEN W(POWER WINDOW) |
67832-16210 |
US $15.58 |
||
|
67832
|
67832
67832-16220 Cover, Front Door Service Hole, Lh[11.1990 - 08.1992] EL40..RHD W(RADIO); EL40..LHD W(RADIO) |
67832-16220 |
US $15.58 |
||
|
67832
|
67832
67832-16230 Cover, Front Door Service Hole, Lh[08.1992 - 09.1994] EL40..LHD..GEN W(POWER WINDOW & SPEAKER) |
67832-16230 |
US $15.58 |
||
|
67837F
|
67837F
67837-16030 Seal, Rear Door Dust Proof[09.1990 - 09.1991] EL40 |
67837-16030 |
US $2.18 |
||
|
67861
|
67861
67861-16270 Weatherstrip, Front Door, Rh[09.1990 - 09.1994] EL40 |
67861-16270 |
US $113.57 |
||
|
67862
|
67862
67862-16270 Weatherstrip, Front Door, Lh[09.1990 - 09.1994] EL40 |
67862-16270 |
US $113.57 |
||
|
67867C
|
67867C
67868-20130 Retainer, Front Door Weatherstrip, Rh[10.1990 - 09.1994] EL40 |
67868-20130 |
US $2.88 |
||
|
67867C
|
67867C
67868-30050
Retainer(For Front Door Weatherstrip)
[09.1990 - 10.1990] EL40 |
67868-30050 |
— | ||
| replacement | |||||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[09.1990 - 10.1990] EL40 |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67868-20130 Retainer, Front Door Weatherstrip, Rh[10.1990 - 09.1994] EL40 |
67868-20130 |
US $2.88 |
||
|
67868C
|
67868C
67868-30050
Retainer(For Front Door Weatherstrip)
[09.1990 - 10.1990] EL40 |
67868-30050 |
— | ||
| replacement | |||||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[09.1990 - 10.1990] EL40 |
67867-12150 |
from US $1.60 |
||
|
68101
|
68101
68110-16040 Glass Sub-Assy, Front Door, Rh[09.1990 - 09.1994] EL40 *TEM,T=3.5,CLEAR |
68110-16040 |
US $235.87 |
||
| replacement | |||||
|
68101
|
68101
68110-16051 Glass Sub-Assy, Front Door, Rh[09.1990 - 09.1994] EL40 *TEM,T=3.5,CLEAR |
68110-16051 |
US $243.15 |
||
|
68101
|
68101
68110-16050
Glass Sub-Assy, Front Door, Rh
[09.1990 - 09.1994] EL40 *TT,T=3.5,BLUE |
68110-16050 |
— | ||
| replacement | |||||
|
68101
|
68101
68110-16051 Glass Sub-Assy, Front Door, Rh[09.1990 - 09.1994] EL40 *TT,T=3.5,BLUE |
68110-16051 |
US $243.15 |
||
|
68102
|
68102
68120-16040
Glass Sub-Assy, Front Door, Lh
[09.1990 - 09.1994] EL40 *TEM,T=3.5,CLEAR |
68120-16040 |
— | ||
| replacement | |||||
|
68102
|
68102
68120-16051 Glass Sub-Assy, Front Door, Lh[09.1990 - 09.1994] EL40 *TEM,T=3.5,CLEAR |
68120-16051 |
US $243.15 |
||
|
68102
|
68102
68120-16050
Glass Sub-Assy, Front Door, Lh
[09.1990 - 09.1994] EL40 *TT,T=3.5,BLUE |
68120-16050 |
— | ||
| replacement | |||||
|
68102
|
68102
68120-16051 Glass Sub-Assy, Front Door, Lh[09.1990 - 09.1994] EL40 *TT,T=3.5,BLUE |
68120-16051 |
US $243.15 |
||
|
68141C
|
68141C
68141-16190 Run, Front Door Glass, Rh[09.1990 - 09.1994] EL40 |
68141-16190 |
US $52.42 |
||
|
68151C
|
68151C
68151-16020 Run, Front Door Glass, Lh[09.1990 - 09.1994] EL40 |
68151-16020 |
US $52.42 |
||
|
68610
|
68610
68610-16050 Check Assy, Front Door[09.1990 - 08.1992] EL40 |
68610-16050 |
US $42.37 |
||
| replacement | |||||
|
68610
|
68610
68610-16080 Check Assy, Front Door[09.1990 - 08.1992] EL40 |
68610-16080 |
US $49.94 |
||
|
68610
|
68610
68610-16070 Check Assy, Front Door[08.1992 - 09.1994] EL40 |
68610-16070 |
US $49.94 |
||
|
68617
|
68617
68617-12030 Pin, Front Door Check[09.1990 - 09.1994] EL40 |
68617-12030 |
US $3.67 |
||
|
75739A
|
75739A
75739-30030 Moulding, Door Edge Protection[09.1990 - 08.1992] EL40 |
75739-30030 |
US $2.77 |
||
| replacement | |||||
|
75739A
|
75739A
75739-12011 Moulding, Door Edge Protection[09.1990 - 08.1992] EL40 |
75739-12011 |
US $2.08 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.12 |
||
|
9095001110
|
9095001110
90950-01110
New Genuine Part
|
90950-01110 |
— | ||
|
9095001269
|
9095001269
90950-01269 New Genuine Part |
90950-01269 |
US $2.18 |
||
| replacement | |||||
|
9095001269
|
9095001269
90950-01453 New Genuine Part |
90950-01453 |
US $1.46 |
||
|
9162140608
|
9162140608
91621-40608 New Genuine Part |
91621-40608 |
US $0.42 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
