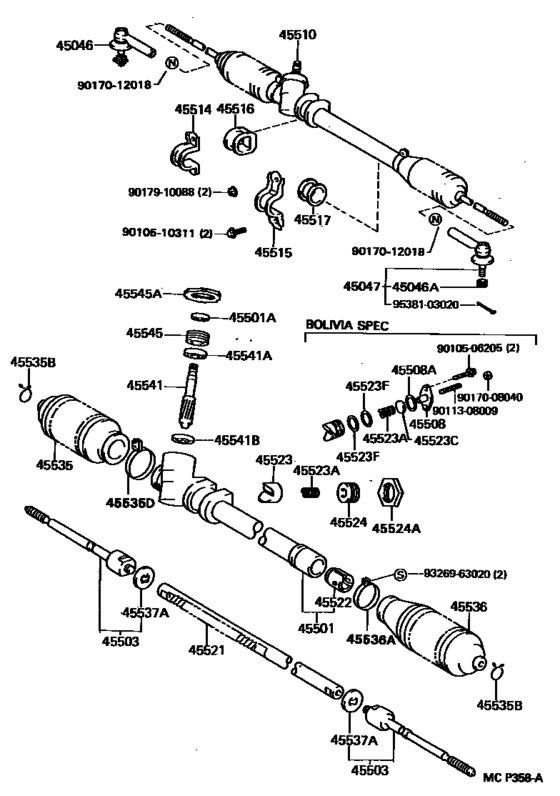

Front Steering Gear & Link ([09.1990 - ] (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19205
End Sub-Assy, Tie Rod, Rh
[09.1990 - 01.1991] EL40 |
45046-19205 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod[09.1990 - 01.1991] EL40 |
45046-19206 |
from US $48.63 |
||
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod[01.1991 - 09.1994] EL40 |
45046-19206 |
from US $48.63 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[09.1990 - 09.1994] EL40 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19205
End Sub-Assy, Tie Rod, Rh
[09.1990 - 01.1991] EL40 |
45046-19205 |
— | ||
| replacement | |||||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod[09.1990 - 01.1991] EL40 |
45046-19206 |
from US $48.63 |
||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod[01.1991 - 09.1994] EL40 |
45046-19206 |
from US $48.63 |
||
|
45501
|
45501
45501-10120 Housing Sub-Assy, Steering RackSTEERING RACK [09.1990 - 09.1994] EL40..LHD |
45501-10120 |
US $141.23 |
||
|
45501
|
45501
45501-10130 Housing Sub-Assy, Steering RackSTEERING RACK [08.1992 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
45501-10130 |
US $141.23 |
||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[09.1990 - 09.1994] EL40 |
90311-15002 |
from US $2.06 |
||
|
45503
|
45503
45503-19155
End Sub-Assy, Steering Rack
[09.1990 - 09.1994] EL40 |
45503-19155 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-19195 End Sub-Assy, Steering Rack[09.1990 - 09.1994] EL40 |
45503-19195 |
US $74.95 |
||
|
45508
|
45508
45508-10010 Cover Sub-Assy, Steering Rack Guide Spring[08.1992 - 02.1994] EL40..LHD..GEN BOLIVIA SPEC |
45508-10010 |
US $10.19 |
||
| replacement | |||||
|
45508
|
45508
45546-10011 Cover Sub-Assy, Steering Rack Guide Spring[08.1992 - 02.1994] EL40..LHD..GEN BOLIVIA SPEC |
45546-10011 |
US $10.19 |
||
|
45508
|
45508
45546-10011 Cover Sub-Assy, Steering Rack Guide Spring[02.1994 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
45546-10011 |
US $10.19 |
||
|
45508A
|
45508A
90301-31007 Ring, O(For Steering Rack Guide Spring Cover)[08.1992 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
90301-31007 |
US $3.64 |
||
|
45510
|
45510
45510-16130
Gear Assy, Steering
[09.1990 - 09.1994] EL40..LHD |
45510-16130 |
— | ||
| replacement | |||||
|
45510
|
45510
45510-16170
Gear Assy, Steering
[09.1990 - 09.1994] EL40..LHD |
45510-16170 |
— | ||
|
45510
|
45510
45510-16150 Gear Assy, Steering[08.1992 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
45510-16150 |
US $640.64 |
||
| replacement | |||||
|
45510
|
45510
45510-16180 Gear Assy, Steering[08.1992 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
45510-16180 |
US $642.10 |
||
|
45514
|
45514
45514-16050
Bracket, Steering Rack Housing, No.1
[09.1990 - 09.1994] EL40 |
45514-16050 |
— | ||
|
45514
|
45514
45514-16060 Bracket, Steering Rack Housing, No.1[09.1990 - 09.1994] EL40 W(POWER STEERING) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[09.1990 - 09.1994] EL40 W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-16060 Bracket, Steering Rack Housing, No.1[09.1990 - 09.1994] EL40 W(POWER STEERING) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[09.1990 - 09.1994] EL40 W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45515-10050
Bracket, Steering Rack Housing, No.2
[09.1990 - 09.1994] EL40 |
45515-10050 |
— | ||
|
45516
|
45516
45516-16050
Grommet, Steering Rack Housing, No.1
[09.1990 - 09.1994] EL40 |
45516-16050 |
— | ||
|
45516
|
45516
45516-16060 Grommet, Steering Rack Housing, No.1[09.1990 - 09.1994] EL40 W(POWER STEERING) |
45516-16060 |
from US $21.43 |
||
|
45517
|
45517
45517-10070 Grommet, Steering Rack Housing, No.2[09.1990 - 09.1994] EL40 W(POWER STEERING) |
45517-10070 |
US $17.63 |
||
|
45517
|
45517
45517-10080 Grommet, Steering Rack Housing, No.2[09.1990 - 09.1994] EL40 |
45517-10080 |
US $13.10 |
||
|
45521
|
45521
45521-16210 Rack, SteeringSTEERING [09.1990 - 09.1994] EL40..LHD |
45521-16210 |
from US $84.45 |
||
|
45522
|
45522
45522-10050 Bush, Steering Rack[09.1990 - 09.1994] EL40 |
45522-10050 |
US $28.13 |
||
|
45522
|
45522
45522-10080 Bush, Steering Rack[08.1992 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
45522-10080 |
US $6.64 |
||
|
45523
|
45523
45523-10040 Guide, Rack(For Steering Gear)[09.1990 - 09.1994] EL40 |
45523-10040 |
US $21.69 |
||
| replacement | |||||
|
45523
|
45523
45523-10041 Guide, Rack(For Steering Gear)RACK(FOR STEERING GEAR) [09.1990 - 09.1994] EL40 |
45523-10041 |
US $21.84 |
||
|
45523
|
45523
45523-16060 Guide, Rack(For Steering Gear)RACK(FOR STEERING GEAR) [09.1990 - 09.1994] EL40..LHD W(POWER STEERING) |
45523-16060 |
US $15 |
||
|
45523A
|
45523A
90501-26042 Spring(For Power Steering Rack Guide)[09.1990 - 09.1994] EL40 |
90501-26042 |
US $2.04 |
||
|
45523A
|
45523A
90501-32032 Spring(For Steering Gear Rack Guide)[08.1992 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
90501-32032 |
US $3.35 |
||
|
45523C
|
45523C
45542-17010 Spacer(For Rack Guide)[08.1992 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
45542-17010 |
US $2.33 |
||
|
45523F
|
45523F
90301-24005 Ring, O(For Steering Gear Guide)[08.1992 - 09.1994] EL40..LHD..GEN BOLIVIA SPEC |
90301-24005 |
US $2.77 |
||
|
45524
|
45524
45524-10040 Cap, Rack Guide Spring(For Power Steering)STEERING RACK GUIDE SPRING [08.1994 - 09.1994] EL40..LHD W(POWER STEERING) |
45524-10040 |
US $9.03 |
||
| replacement | |||||
|
45524
|
45524
45524-12041
Cap, Steering Rack Guide Spring
[08.1994 - 09.1994] EL40..LHD W(POWER STEERING) |
45524-12041 |
— | ||
|
45524
|
45524
45524-12010 Cap, Rack Guide Spring(For Power Steering)[09.1990 - 08.1994] EL40..LHD W(POWER STEERING) |
45524-12010 |
US $9.03 |
||
| replacement | |||||
|
45524
|
45524
45524-12041
Cap, Steering Rack Guide Spring
[09.1990 - 08.1994] EL40..LHD W(POWER STEERING) |
45524-12041 |
— | ||
|
45524
|
45524
45524-16040 Cap, Steering Rack Guide Spring[09.1990 - 09.1994] EL40 |
45524-16040 |
US $7.13 |
||
|
45524A
|
45524A
90179-30002 Nut(For Power Steering Rack Guide Cap)[09.1990 - 09.1994] EL40 |
90179-30002 |
US $2.62 |
||
|
45535
|
45535
45535-10021 Boot, Steering Rack, No.1[09.1990 - 09.1994] EL40 |
45535-10021 |
US $25.68 |
||
|
45535
|
45535
45535-16010 Boot, Steering Rack, No.1STEERING RACK, NO.1 [09.1990 - 09.1994] EL40..LHD W(POWER STEERING) |
45535-16010 |
US $25.68 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[09.1990 - 09.1994] EL40 |
90467-18003 |
from US $1.92 |
||
|
45535D
|
45535D
90460-56002 Clamp(For Steering Rack Boot No.1)[09.1990 - 09.1994] EL40..LHD W(POWER STEERING) |
90460-56002 |
US $5.39 |
||
|
45535D
|
45535D
90461-10273 Clamp(For Steering Rack Boot)[09.1990 - 09.1994] EL40 |
90461-10273 |
from US $4.96 |
||
|
45536
|
45536
45535-16010 Boot, Steering Rack, No.1STEERING RACK, NO.1 [09.1990 - 09.1994] EL40..LHD W(POWER STEERING) |
45535-16010 |
US $25.68 |
||
|
45536
|
45536
45536-10060 Boot, Steering Rack, No.2[09.1990 - 09.1994] EL40 |
45536-10060 |
US $26.38 |
||
|
45536A
|
45536A
90460-56002 Clamp(For Steering Rack Boot No.1)[09.1990 - 09.1994] EL40..LHD W(POWER STEERING) |
90460-56002 |
US $5.39 |
||
|
45536A
|
45536A
90461-10646 Clamp(For Steering Rack Boot)[09.1990 - 09.1994] EL40 |
90461-10646 |
US $4.35 |
||
|
45537A
|
45537A
90214-12002
Washer, Claw(For Power Steering Rack End)
[09.1990 - 09.1994] EL40 |
90214-12002 |
— | ||
|
45541
|
45541
45541-16100 Pinion, SteeringSTEERING [09.1990 - 09.1994] EL40..LHD |
45541-16100 |
US $52.85 |
||
|
45541A
|
45541A
90363-15015 Bearing, Radial Ball(For Steering Pinion Upper)[09.1990 - 09.1994] EL40 |
90363-15015 |
US $12.23 |
||
|
45541B
|
45541B
90363-13004 Bearing, Radial Ball(For Steering Pinion Upper)[09.1990 - 09.1994] EL40 |
90363-13004 |
from US $12.23 |
||
|
45545
|
45545
45545-10020 Screw, Pinion Bearing Adjusting[09.1990 - 09.1994] EL40 |
45545-10020 |
US $14.56 |
||
|
45545A
|
45545A
90179-38001 Nut(For Pinion Bearing Adjusting Screw)[09.1990 - 09.1994] EL40 |
90179-38001 |
US $8.91 |
||
|
9010506205
|
9010506205
90105-06205 New Genuine Part |
90105-06205 |
US $1.60 |
||
|
9010510311
|
9010510311
90105-10311 New Genuine Part |
90105-10311 |
US $2.62 |
||
|
9011308009
|
9011308009
90113-08009 New Genuine Part |
90113-08009 |
US $2.04 |
||
|
9017008040
|
9017008040
90170-08040 New Genuine Part |
90170-08040 |
US $2.62 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
