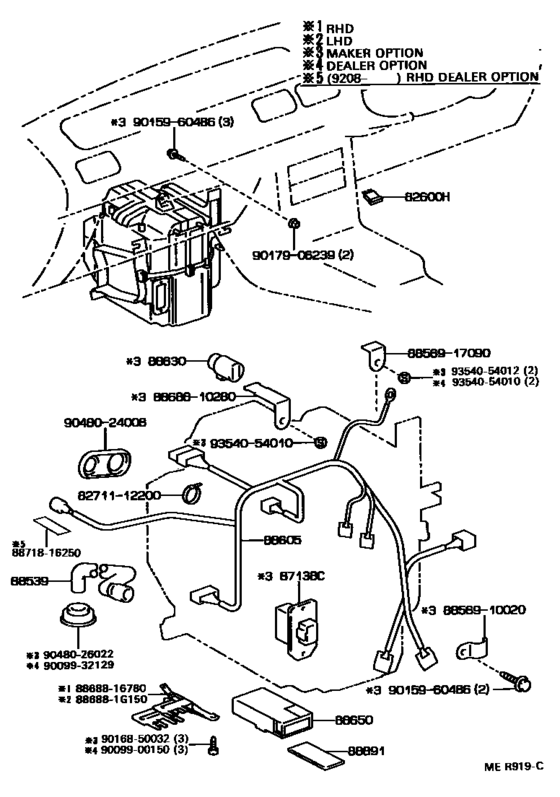

Heating & Air Conditioning - Cooler Unit ([09.1990 - ] (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600H
|
82600H
90982-09002 Fusible Link[09.1990 - 09.1994] EL40 10A |
90982-09002 |
from US $0.90 |
||
|
87138C
|
87138C
87138-16130
Resistor, Heater Blower
[09.1990 - 09.1994] EL40 |
87138-16130 |
— | ||
|
88539
|
88539
88539-10100
Hose, Cooler Unit Drain, No.1
[09.1990 - 09.1994] EL40..LHD |
88539-10100 |
— | ||
|
88605
|
88605
88605-1G310
Harness Sub-Assy, Cooler Wiring, No.1
[09.1990 - 08.1992] EL40..RHD W(POWER STEERING & HEATER); EL40..LHD W(POWER STEERING & HEATER) |
88605-1G310 |
— | ||
|
88605
|
88605
88605-1G311
Harness Sub-Assy, Cooler Wiring, No.1
[08.1992 - 08.1993] EL40 W(HEATER),MAKER OPTION |
88605-1G311 |
— | ||
|
88605
|
88605
88605-1G312
Harness Sub-Assy, Cooler Wiring, No.1
[08.1993 - 09.1994] EL40..LHD W(HEATER),MAKER OPTION |
88605-1G312 |
— | ||
|
88605
|
88605
88605-1G320
Harness Sub-Assy, Cooler Wiring, No.1
[09.1990 - 08.1992] EL40..RHD W(HEATER); EL40..LHD W(HEATER) |
88605-1G320 |
— | ||
|
88605
|
88605
88605-1G330
Harness Sub-Assy, Cooler Wiring, No.1
[09.1990 - 08.1992] EL40 W(POWER STEERING & BOOST VENTILATOR) |
88605-1G330 |
— | ||
|
88605
|
88605
88605-1G331
Harness Sub-Assy, Cooler Wiring, No.1
[08.1992 - 08.1993] EL40 W(BOOST VENTILATOR),MAKER OPTION |
88605-1G331 |
— | ||
|
88605
|
88605
88605-1G332
Harness Sub-Assy, Cooler Wiring, No.1
[08.1993 - 09.1994] EL40..LHD W(BOOST VENTILATOR),MAKER OPTION |
88605-1G332 |
— | ||
|
88605
|
88605
88605-1G340
Harness Sub-Assy, Cooler Wiring, No.1
[09.1990 - 08.1992] EL40 W(BOOST VENTILATOR) |
88605-1G340 |
— | ||
|
88605
|
88605
88605-1G720
Harness Sub-Assy, Cooler Wiring, No.1
[08.1992 - 08.1993] EL40..LHD W(POWER STEERING & HEATER) |
88605-1G720 |
— | ||
|
88605
|
88605
88605-1G721
Harness Sub-Assy, Cooler Wiring, No.1
[08.1993 - 09.1994] EL40..LHD..GEN W(POWER STEERING & HEATER) |
88605-1G721 |
— | ||
|
88605
|
88605
88605-1G820
Harness Sub-Assy, Cooler Wiring, No.1
[08.1992 - 08.1993] EL40 W(POWER STEERING & BOOST VENTILATER) |
88605-1G820 |
— | ||
|
88605
|
88605
88605-1G821
Harness Sub-Assy, Cooler Wiring, No.1
[08.1993 - 09.1994] EL40..GEN W(POWER STEERING & BOOST VENTILATER) |
88605-1G821 |
— | ||
|
88605
|
88605
88605-1G840
Harness Sub-Assy, Cooler Wiring, No.1
[08.1992 - 08.1993] EL40..LHD W(HEATER),DEALER OPTION |
88605-1G840 |
— | ||
|
88605
|
88605
88605-1G841
Harness Sub-Assy, Cooler Wiring, No.1
[08.1993 - 09.1994] EL40..LHD..GEN W(HEATER),DEALER OPTION |
88605-1G841 |
— | ||
|
88605
|
88605
88605-1G850
Harness Sub-Assy, Cooler Wiring, No.1
[08.1992 - 08.1993] EL40 W(BOOST VENTILATOR),DEALER OPTION |
88605-1G850 |
— | ||
|
88605
|
88605
88605-1G851
Harness Sub-Assy, Cooler Wiring, No.1
[08.1993 - 09.1994] EL40..GEN W(BOOST VENTILATOR),DEALER OPTION |
88605-1G851 |
— | ||
|
88630
|
88630
88630-95702
Relay, Heater Radiator
[09.1990 - 09.1994] EL40 |
88630-95702 |
— | ||
|
88650
|
88650
88650-16420
Amplifier Assy, Cooler Stabilizer
[09.1990 - 09.1994] EL40 |
88650-16420 |
— | ||
|
88891
|
88891
88578-10090
Packing (For Cooler)
[09.1990 - 09.1994] EL40..GEN MAKER OPTION |
88578-10090 |
— | ||
|
88891
|
88891
88578-16190
Packing (For Cooler)
[09.1990 - 09.1994] EL40..RHD DEALER OPTION; EL40..LHD..GEN DEALER OPTION |
88578-16190 |
— | ||
| replacement | |||||
|
88891
|
88891
88578-10130
Packing (For Cooler)
[09.1990 - 09.1994] EL40..RHD DEALER OPTION; EL40..LHD..GEN DEALER OPTION |
88578-10130 |
— | ||
|
886881G150
|
886881G150
88688-1G150
Bracket, Cooler Diaphragm
|
88688-1G150 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8856910020
|
8856910020
88569-10020
Clamp (for Cooler Relay)
|
88569-10020 |
— | ||
|
8856917090
|
8856917090
88569-17090
Clamp (for Cooler Relay)
|
88569-17090 |
— | ||
|
8868810280
|
8868810280
88688-10280
Bracket, Cooler Diaphragm
|
88688-10280 |
— | ||
|
8868816780
|
8868816780
88688-16780
Bracket, Cooler Diaphragm
|
88688-16780 |
— | ||
|
8871816250
|
8871816250
88718-16250
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16250 |
— | ||
|
9009900150
|
9009900150
90099-00150
New Genuine Part
|
90099-00150 |
— | ||
|
9009932129
|
9009932129
90099-32129
Grommet (For Cooler Unit Drain Hose)
|
90099-32129 |
— | ||
|
9015960486
|
9015960486
90159-60486 New Genuine Part |
90159-60486 |
US $1.46 |
||
|
9016850032
|
9016850032
90168-50032 New Genuine Part |
90168-50032 |
US $1.60 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9048024008
|
9048024008
90480-24008
Grommet (For Cooler Unit)
|
90480-24008 |
— | ||
| replacement | |||||
|
9048024008
|
9048024008
90099-32137 Grommet (For Cooler Unit) |
90099-32137 |
US $5.39 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
