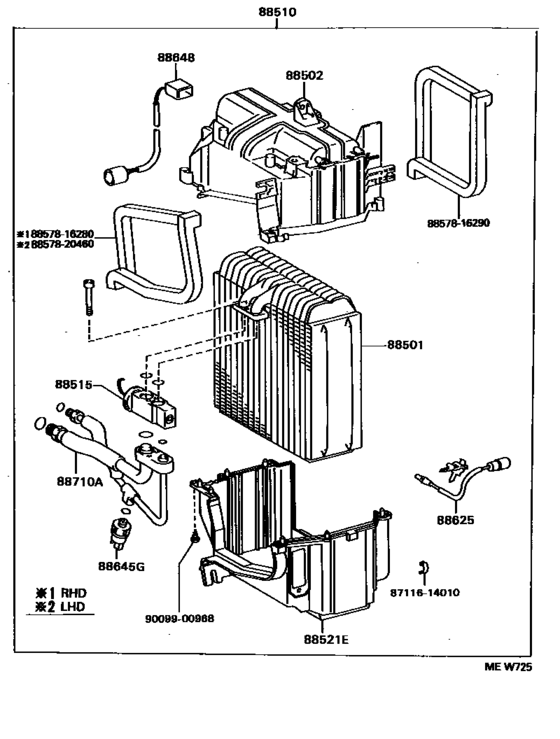

Heating & Air Conditioning - Cooler Unit ([09.1990 - ] (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-10110
Evaporator Sub-Assy, Cooler, No.1
[09.1990 - 08.1993] EL40..LHD |
88501-10110 |
— | ||
|
88501
|
88501
88501-16120
Evaporator Sub-Assy, Cooler, No.1
[08.1993 - 09.1994] EL40..LHD |
88501-16120 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-16121
Evaporator Sub-Assy, Cooler, No.1
[08.1993 - 09.1994] EL40..LHD |
88501-16121 |
— | ||
|
88502
|
88502
88502-16130
Case Sub-Assy, Cooling Unit
[09.1990 - 08.1993] EL40..LHD |
88502-16130 |
— | ||
|
88502
|
88502
88502-16160
Case Sub-Assy, Cooling Unit
[08.1993 - 09.1994] EL40..LHD |
88502-16160 |
— | ||
|
88510
|
88510
88510-10250
Unit Assy, Cooler
[09.1990 - 08.1993] EL40..LHD |
88510-10250 |
— | ||
|
88510
|
88510
88510-16490
Unit Assy, Cooler
[08.1993 - 09.1994] EL40..LHD |
88510-16490 |
— | ||
|
88515
|
88515
88515-14061 Valve, Cooler Expansion[09.1990 - 08.1991] EL40 MAKER OPTION |
88515-14061 |
US $142.69 |
||
| replacement | |||||
|
88515
|
88515
88515-33010 Valve, Cooler Expansion[09.1990 - 08.1991] EL40 MAKER OPTION |
88515-33010 |
from US $132.72 |
||
|
88515
|
88515
88515-14062
Valve, Cooler Expansion
[09.1990 - 08.1991] EL40..RHD DEALER OPTION; EL40..LHD DEALER OPTION |
88515-14062 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-33010 Valve, Cooler Expansion[09.1990 - 08.1991] EL40..RHD DEALER OPTION; EL40..LHD DEALER OPTION |
88515-33010 |
from US $132.72 |
||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[08.1993 - 09.1994] EL40 |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[08.1993 - 09.1994] EL40 |
88515-22240 |
from US $132.85 |
||
|
88521E
|
88521E
88502-16140
Case Sub-Assy, Cooling Unit
[09.1990 - 09.1994] EL40..LHD |
88502-16140 |
— | ||
|
88625
|
88625
88625-24050
Thermistor, Cooler, No.1
[09.1990 - 09.1994] EL40 |
88625-24050 |
— | ||
|
88645G
|
88645G
88645-30320
Switch, Pressure
[09.1990 - 08.1993] EL40 |
88645-30320 |
— | ||
| replacement | |||||
|
88645G
|
88645G
88645-30281
Switch, Pressure
[09.1990 - 08.1993] EL40 |
88645-30281 |
— | ||
|
88648
|
88648
88648-10290
Wiring, Cooler, No.1
[09.1990 - 08.1993] EL40 |
88648-10290 |
— | ||
|
88710A
|
88710A
88710-10070
Tube Assy, Air Conditioner
[09.1990 - 08.1993] EL40..LHD |
88710-10070 |
— | ||
|
88710A
|
88710A
88710-16240
Tube Assy, Air Conditioner
[08.1993 - 09.1994] EL40..LHD |
88710-16240 |
— | ||
|
8711614010
|
8711614010
87116-14010
Spring, Heater Case Fastening
|
87116-14010 |
— | ||
|
8857816280
|
8857816280
88578-16280
Paking, Cooler Air Duct
|
88578-16280 |
— | ||
|
8857816290
|
8857816290
88578-16290
Paking, Cooler Air Duct
|
88578-16290 |
— | ||
|
8857820460
|
8857820460
88578-20460
Packing, Cooling Unit, No.1
|
88578-20460 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
