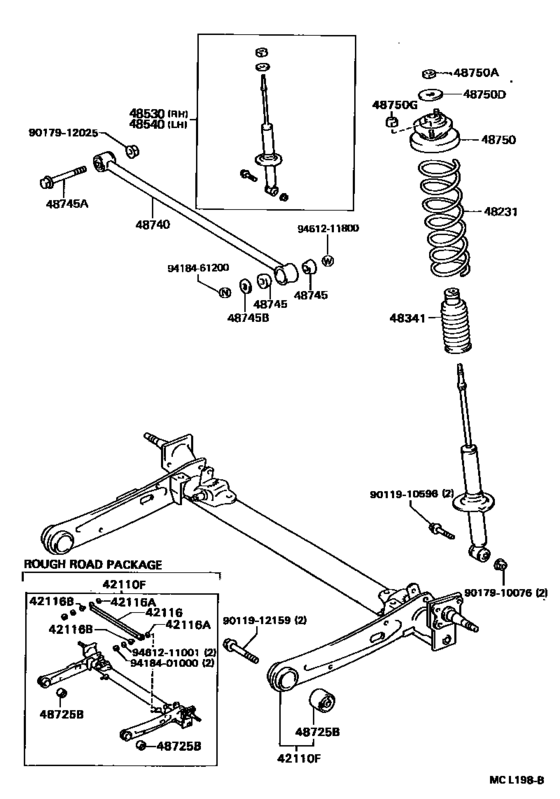

Rear Spring & Shock Absorber ([09.1990 - ] (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42110-16110 Beam Assy, Rear Axle[09.1990 - 09.1994] EL40 |
42110-16110 |
US $869.23 |
||
| replacement | |||||
|
42110F
|
42110F
42110-16170
Beam Assy, Rear Axle
[09.1990 - 09.1994] EL40 |
42110-16170 |
— | ||
|
42110F
|
42110F
42110-16140 Beam Assy, Rear Axle[09.1990 - 08.1993] EL40..LHD..MTM ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
42110-16140 |
US $924.56 |
||
| replacement | |||||
|
42110F
|
42110F
42110-16170
Beam Assy, Rear Axle
[09.1990 - 08.1993] EL40..LHD..MTM ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
42110-16170 |
— | ||
|
42116
|
42116
42116-10020 Cover, Rear Axle BeamREAR AXLE BEAM [09.1990 - 08.1993] EL40..LHD..MTM ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
42116-10020 |
US $122.30 |
||
|
42116A
|
42116A
90540-14004 Cushion, No.1 (For Rear Axle Beam Cover)NO.1 (FOR REAR AXLE BEAM COVER) [09.1990 - 08.1993] EL40..LHD..MTM ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
90540-14004 |
US $2.62 |
||
|
42116B
|
42116B
90540-14005 Cushion, No.2 (For Rear Axle Beam Cover)NO.2 (FOR REAR AXLE BEAM COVER) [09.1990 - 08.1993] EL40..LHD..MTM ROUGH ROAD PACKAGE,RH; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE,RH |
90540-14005 |
US $2.62 |
||
|
42116B
|
42116B
90540-14006 Cushion, No.2 (For Rear Axle Beam Cover)NO.2 (FOR REAR AXLE BEAM COVER) [09.1990 - 08.1993] EL40..LHD..MTM ROUGH ROAD PACKAGE,LH; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE,LH |
90540-14006 |
US $2.62 |
||
|
48231
|
48231
48231-16530 Spring, Coil, RearCOIL, REAR [09.1990 - 09.1994] EL40..LHD..MTM..GEN ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
48231-16530 |
US $104.83 |
||
|
48231
|
48231
48231-16600 Spring, Coil, Rear[09.1990 - 09.1994] EL40..GEN |
48231-16600 |
US $90.27 |
||
|
48341
|
48341
48341-16060 Bumper, Rear Spring[09.1990 - 09.1994] EL40 |
48341-16060 |
US $23.73 |
||
|
48530
|
48530
48530-19265 Absorber Assy, Shock, Rear Rh[09.1990 - 08.1992] EL40..RHD ROUGH ROAD PACKAGE; EL40..LHD ROUGH ROAD PACKAGE |
48530-19265 |
US $107.74 |
||
| replacement | |||||
|
48530
|
48530
48530-19446 Absorber Assy, Shock, Rear Rh[09.1990 - 08.1992] EL40..RHD ROUGH ROAD PACKAGE; EL40..LHD ROUGH ROAD PACKAGE |
48530-19446 |
US $117.94 |
||
|
48530
|
48530
48530-19275 Absorber Assy, Shock, Rear Rh[08.1993 - 09.1994] EL40..GCC; EL40..LHD..MTM..GEN ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
48530-19275 |
US $107.74 |
||
| replacement | |||||
|
48530
|
48530
48530-19276 Absorber Assy, Shock, Rear Rh[08.1993 - 09.1994] EL40..GCC; EL40..LHD..MTM..GEN ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
48530-19276 |
US $116.48 |
||
|
48530
|
48530
48530-19295 Absorber Assy, Shock, Rear Rh[09.1990 - 09.1994] EL40..GEN |
48530-19295 |
US $107.74 |
||
| replacement | |||||
|
48530
|
48530
48530-19296 Absorber Assy, Shock, Rear Rh[09.1990 - 09.1994] EL40..GEN |
48530-19296 |
US $116.48 |
||
|
48540
|
48540
48530-19265 Absorber Assy, Shock, Rear Rh[09.1990 - 08.1992] EL40..RHD ROUGH ROAD PACKAGE; EL40..LHD ROUGH ROAD PACKAGE |
48530-19265 |
US $107.74 |
||
| replacement | |||||
|
48540
|
48540
48530-19446 Absorber Assy, Shock, Rear Rh[09.1990 - 08.1992] EL40..RHD ROUGH ROAD PACKAGE; EL40..LHD ROUGH ROAD PACKAGE |
48530-19446 |
US $117.94 |
||
|
48540
|
48540
48530-19275 Absorber Assy, Shock, Rear Rh[08.1993 - 09.1994] EL40..GCC; EL40..LHD..MTM..GEN ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
48530-19275 |
US $107.74 |
||
| replacement | |||||
|
48540
|
48540
48530-19276 Absorber Assy, Shock, Rear Rh[08.1993 - 09.1994] EL40..GCC; EL40..LHD..MTM..GEN ROUGH ROAD PACKAGE; EL40..RHD;EL40..LHD..ATM ROUGH ROAD PACKAGE |
48530-19276 |
US $116.48 |
||
|
48540
|
48540
48530-19295 Absorber Assy, Shock, Rear Rh[09.1990 - 09.1994] EL40..GEN |
48530-19295 |
US $107.74 |
||
| replacement | |||||
|
48540
|
48540
48530-19296 Absorber Assy, Shock, Rear Rh[09.1990 - 09.1994] EL40..GEN |
48530-19296 |
US $116.48 |
||
|
48725B
|
48725B
48725-10031
Bush, Rear Suspension Arm, No.1
[09.1990 - 09.1994] EL40 |
48725-10031 |
— | ||
| replacement | |||||
|
48725B
|
48725B
48725-10040 Bush, Rear Suspension Arm, No.1[09.1990 - 09.1994] EL40 |
48725-10040 |
US $33.72 |
||
|
48740
|
48740
48740-10020
Rod Assy, Rear Lateral Control
[09.1990 - 09.1994] EL40 |
48740-10020 |
— | ||
|
48745
|
48745
90385-18015 Bush, Lateral Control Rod[09.1990 - 09.1994] EL40 |
90385-18015 |
US $4.54 |
||
|
48745A
|
48745A
90105-12070 Bolt(For Rear Suspension Arm)[09.1990 - 09.1994] EL40 |
90105-12070 |
US $5.76 |
||
|
48745B
|
48745B
90201-12037 Washer, Plate, No.1(For Rear Lateral Control Rod)[09.1990 - 09.1994] EL40 |
90201-12037 |
US $4.96 |
||
|
48750
|
48750
48750-16060 Support Assy, Rear Suspension[09.1990 - 06.1991] EL40 |
48750-16060 |
US $59.84 |
||
| replacement | |||||
|
48750
|
48750
48750-16080 Support Assy, Rear Suspension[09.1990 - 06.1991] EL40 |
48750-16080 |
US $59.40 |
||
|
48750
|
48750
48750-16080 Support Assy, Rear Suspension[06.1991 - 09.1994] EL40 |
48750-16080 |
US $59.40 |
||
|
48750A
|
48750A
90179-12061 Nut(For Rear Support To Rear Shock Absorber)[09.1990 - 09.1994] EL40 |
90179-12061 |
US $0.87 |
||
|
48750D
|
48750D
90948-02100
Retainer(For Rear Support To Rear Shock Absorber)
[09.1990 - 09.1994] EL40 |
90948-02100 |
— | ||
|
48750G
|
48750G
90179-08206 Nut(For Front Suspension Support)[09.1990 - 09.1994] EL40 |
90179-08206 |
from US $0.86 |
||
|
9011910596
|
9011910596
90119-10596 New Genuine Part |
90119-10596 |
US $10.72 |
||
|
9011912159
|
9011912159
90119-12159 BOLT WWASHER |
90119-12159 |
US $5.82 |
||
|
9017910076
|
9017910076
90179-10076 NUT |
90179-10076 |
US $2.62 |
||
|
9017912025
|
9017912025
90179-12025 Nut (For Rear Axle Carrier) |
90179-12025 |
from US $1.25 |
||
|
9418401000
|
9418401000
94184-01000 Nut |
94184-01000 |
from US $1.19 |
||
|
9418461200
|
9418461200
94184-61200 Nut, Lock(For Power Steering Control Valve) |
94184-61200 |
from US $1.13 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
|
9461211800
|
9461211800
94612-11800 Washer (For Shift & Select Lever Shaft) |
94612-11800 |
US $3.20 |
||
