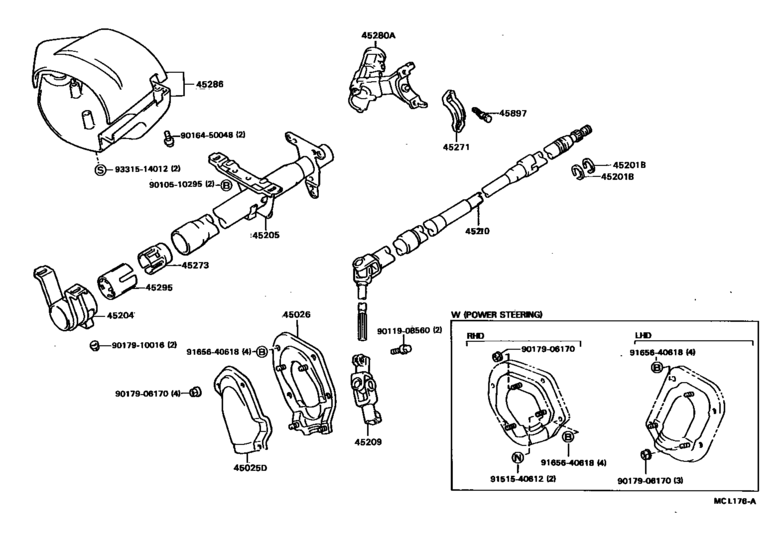

Steering Column & Shaft ([09.1990 - ] (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-10100 Cover Sub-Assy, Steering Column Hole, No.1STEERING COLUMN HOLE, NO.1 [09.1990 - 09.1994] EL40..LHD |
45025-10100 |
US $37.42 |
||
|
45025D
|
45025D
45025-16110 Cover Sub-Assy, Steering Column Hole, No.1STEERING COLUMN HOLE, NO.1 [09.1990 - 09.1994] EL40..LHD W(POWER STEERING) |
45025-16110 |
US $24.32 |
||
|
45026
|
45026
45026-10050 Cover Sub-Assy, Steering Column Hole, No.2STEERING COLUMN HOLE, NO.2 [09.1990 - 09.1994] EL40..LHD |
45026-10050 |
US $44.99 |
||
|
45026
|
45026
45026-16050 Cover Sub-Assy, Steering Column Hole, No.2STEERING COLUMN HOLE, NO.2 [09.1990 - 09.1994] EL40..LHD W(POWER STEERING) |
45026-16050 |
US $32.03 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[06.1993 - 09.1994] EL40 T=1.20,NO.1 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[09.1990 - 06.1993] EL40 T=1.35-1.45 |
90520-17196 |
US $2.97 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[06.1993 - 09.1994] EL40 T=1.20,NO.2 |
90520-17269 |
US $1.92 |
||
|
45204
|
45204
45204-16040 Tube Assy, Steering Column, LowerSTEERING COLUMN, LOWER [09.1990 - 09.1994] EL40..LHD |
45204-16040 |
US $42.66 |
||
|
45205
|
45205
45205-10190 Tube Sub-Assy, Steering Column[09.1990 - 09.1994] EL40 |
45205-10190 |
US $49.94 |
||
|
45209
|
45209
45209-16040 Yoke Sub-Assy, Steering Sliding[09.1990 - 09.1994] EL40 |
45209-16040 |
US $105.49 |
||
|
45209
|
45209
45209-16051 Yoke Sub-Assy, Steering Sliding[09.1990 - 09.1994] EL40 W(POWER STEERING) |
45209-16051 |
US $126.67 |
||
|
45210
|
45210
45210-16120 Shaft Assy, Steering MainSTEERING MAIN [09.1990 - 09.1994] EL40..LHD |
45210-16120 |
US $281.01 |
||
|
45210
|
45210
45210-16141 Shaft Assy, Steering MainSTEERING MAIN [09.1990 - 09.1994] EL40..LHD W(POWER STEERING) |
45210-16141 |
US $281.01 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[09.1990 - 09.1994] EL40 |
45271-16020 |
US $8.32 |
||
|
45273
|
45273
45273-16010 Bush, Steering Main Shaft[09.1990 - 09.1993] EL40 |
45273-16010 |
from US $7.22 |
||
|
45273
|
45273
45273-20030 Bush, Steering Main Shaft[09.1993 - 09.1994] EL40 |
45273-20030 |
US $5.82 |
||
| replacement | |||||
|
45273
|
45273
45273-16020 Bush, Steering Main Shaft[09.1993 - 09.1994] EL40 |
45273-16020 |
from US $4.60 |
||
|
45280A
|
45280A
45280-16080 Bracket Assy, Steering Column, Upper[09.1990 - 09.1994] EL40 |
45280-16080 |
US $199.18 |
||
|
45286
|
45286
45286-16915-01 Cover, Steering ColumnSTEERING COLUMN [09.1990 - 08.1992] EL40..LHD BLACK,TRIM2# |
45286-16915-01 |
US $58.82 |
||
| replacement | |||||
|
45286
|
45286
45286-16915-22
Cover, Steering Column
[09.1990 - 08.1992] EL40..LHD BLACK,TRIM2# |
45286-16915-22 |
— | ||
|
45286
|
45286
45286-16915-04 Cover, Steering ColumnSTEERING COLUMN [09.1990 - 08.1992] EL40..LHD GRAYISH BLUE,TRIM8# |
45286-16915-04 |
US $58.82 |
||
| replacement | |||||
|
45286
|
45286
45286-16915-22
Cover, Steering Column
[09.1990 - 08.1992] EL40..LHD GRAYISH BLUE,TRIM8# |
45286-16915-22 |
— | ||
|
45286
|
45286
45286-16915-22
Cover, Steering Column
[08.1992 - 09.1994] EL40..LHD BLACK,TRIM2# |
45286-16915-22 |
— | ||
|
45286
|
45286
45286-16915-W4 Cover, Steering ColumnSTEERING COLUMN [08.1992 - 09.1994] EL40..LHD EISEN BLUE,TRIM8# |
45286-16915-W4 |
US $58.82 |
||
| replacement | |||||
|
45286
|
45286
45286-16915-22
Cover, Steering Column
[08.1992 - 09.1994] EL40..LHD EISEN BLUE,TRIM8# |
45286-16915-22 |
— | ||
|
45295
|
45295
45295-10010
Bush, Steering Column Tube
[09.1990 - 09.1994] EL40 |
45295-10010 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[10.1993 - 09.1994] EL40 |
45897-12020 |
from US $3.36 |
||
|
45897
|
45897
45897-32010 Bolt, Steering Lock Set[09.1990 - 10.1993] EL40 |
45897-32010 |
US $5.82 |
||
|
9010510295
|
9010510295
90105-10295 New Genuine Part |
90105-10295 |
US $2.62 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017906170
|
9017906170
90179-06170
New Genuine Part
|
90179-06170 |
— | ||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9151540612
|
9151540612
91515-40612 New Genuine Part |
91515-40612 |
US $1.46 |
||
| replacement | |||||
|
9151540612
|
9151540612
91511-40608 New Genuine Part |
91511-40608 |
US $1.05 |
||
|
9165640618
|
9165640618
91656-40618
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91656-40618 |
— | ||
| replacement | |||||
|
9165640618
|
9165640618
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
