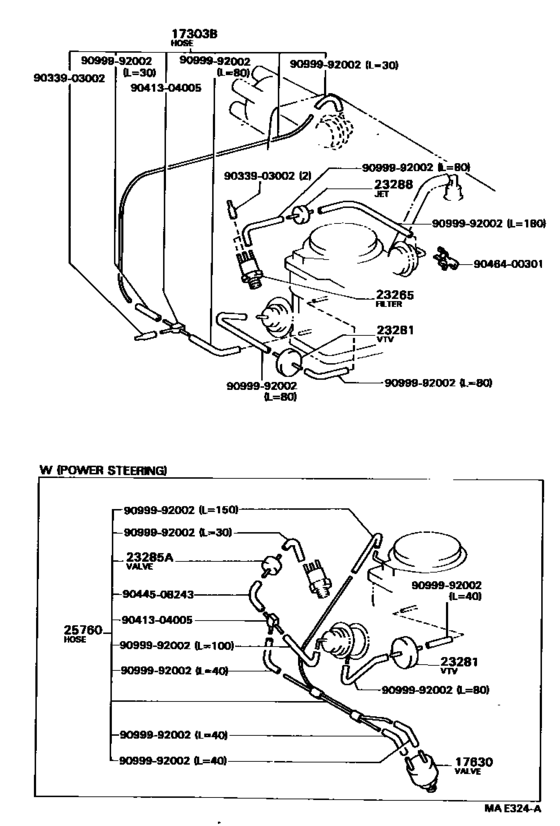

Vacuum Piping ([09.1990 - 08.1992] (9009-9208)2E..MTM) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11460 Pipe Sub-Assy, Air, No.1[08.1992 - 09.1994] 2E..EL40 NO.2 |
17303-11460 |
US $19.95 |
||
|
17303B
|
17303B
17303-11490 Pipe Sub-Assy, Air, No.1AIR, NO.1 [09.1990 - 08.1992] 2E..EL40 |
17303-11490 |
US $19.80 |
||
|
17303B
|
17303B
17303-11550 Pipe Sub-Assy, Air, No.1AIR, NO.1 [08.1992 - 09.1994] 2E..EL40 W(POWER STEERING) |
17303-11550 |
US $18.20 |
||
|
17303B
|
17303B
17303-11690 Pipe Sub-Assy, Air, No.1AIR, NO.1 [08.1992 - 09.1994] 2E..EL40 NO.1 |
17303-11690 |
US $24.90 |
||
|
17630
|
17630
17630-15030 Valve Assy, Air Control[09.1990 - 09.1994] 2E..EL40 |
17630-15030 |
US $189.28 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[09.1990 - 09.1994] 2E..EL40 |
90917-11027 |
from US $23.71 |
||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[09.1990 - 10.1991] 2E..EL40 |
90925-01041 |
— | ||
|
23281
|
23281
90925-01100
Valve, Vacuum Transmitting, No.1
[10.1991 - 08.1992] 2E..EL40 |
90925-01100 |
— | ||
|
23281
|
23281
90925-01101 Valve, Vacuum Transmitting, No.1[08.1992 - 09.1994] 2E..EL40..MTM NO.2 |
90925-01101 |
US $28.54 |
||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[08.1992 - 09.1994] 2E..EL40 |
90917-10049 |
from US $6.59 |
||
|
23285A
|
23285A
90925-01091 Valve, Vacuum Transmitting, No.1[09.1990 - 08.1992] 2E..EL40 |
90925-01091 |
US $29.35 |
||
|
23288
|
23288
90925-04006 Jet(For Opener)[09.1990 - 08.1992] 2E..EL40 |
90925-04006 |
US $15.90 |
||
|
25760
|
25760
25760-11140 Hose Assy, Vacuum TransmittingVACUUM TRANSMITTING [09.1990 - 08.1992] 2E..EL40..LHD |
25760-11140 |
US $59.55 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9044508243
|
9044508243
90445-08243 Hose Assy, Vacuum Transmitting |
90445-08243 |
US $3.20 |
||
| replacement | |||||
|
9044508243
|
9044508243
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9046400301
|
9046400301
90464-00301 Clamp |
90464-00301 |
US $1.44 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
