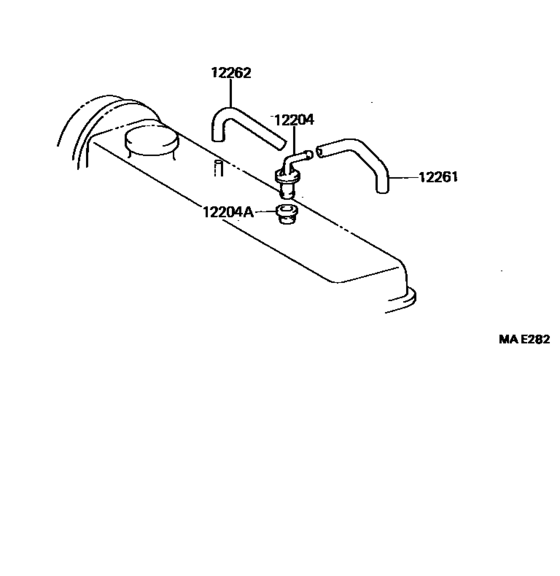

Ventilation Hose ([09.1990 - ] (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-11040 Valve Sub-Assy, Ventilation[09.1990 - 09.1994] 2E..EL40 |
12204-11040 |
from US $15.31 |
||
|
12204A
|
12204A
90480-18006 Grommet(For Ventilation System)[09.1990 - 09.1994] 2E..EL40 |
90480-18006 |
from US $2.08 |
||
|
12261
|
12261
12261-11020 Hose, Ventilation[08.1992 - 09.1994] 2E..EL40 |
12261-11020 |
US $12.06 |
||
|
12261
|
12261
12262-10020 Hose, Ventilation, No.2[09.1990 - 08.1992] 2E..EL40 |
12262-10020 |
US $8.64 |
||
|
12262
|
12262
12261-10010
Hose, Ventilation
[09.1990 - 08.1992] 2E..EL40 |
12261-10010 |
— | ||
|
12262
|
12262
12262-10020 Hose, Ventilation, No.2[08.1992 - 09.1994] 2E..EL40 |
12262-10020 |
US $8.64 |
