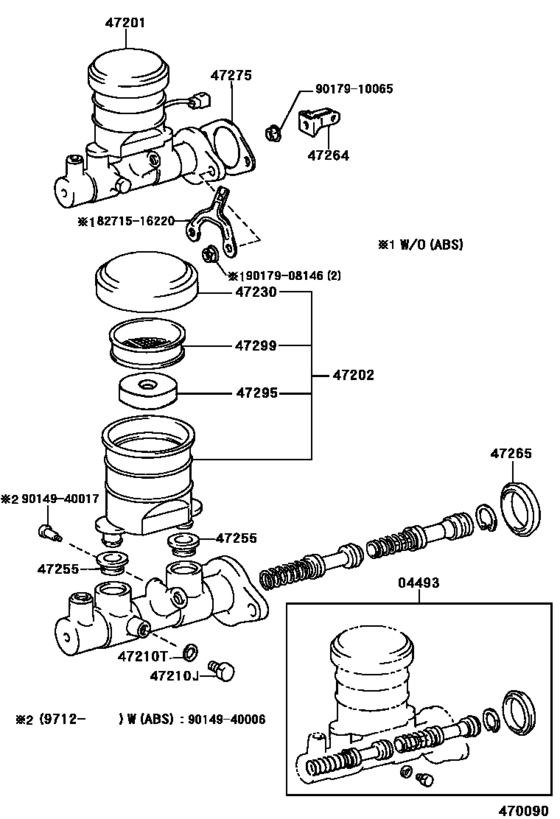

Brake Master Cylinder ([09.1994 - ] (9409- )LHD) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- EL50
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-16100 Cylinder Kit, Brake MasterBRAKE MASTER [09.1994 -] EL5#..LHD |
04493-16100 |
US $85.90 |
||
|
47201
|
47201
47201-16270
Cylinder Sub-Assy, Brake Master
[09.1994 -] EL5#..LHD |
47201-16270 |
— | ||
|
47202
|
47202
47220-16060 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [09.1994 -] EL5#..LHD |
47220-16060 |
US $131.04 |
||
|
47210J
|
47210J
90430-06002
Gasket(For Master Cylinder)
[09.1994 -] EL5#..LHD |
90430-06002 |
— | ||
|
47210T
|
47210T
90109-06123
Bolt(For Brake Master Cylinder)
[09.1994 -] EL5#..LHD |
90109-06123 |
— | ||
|
47230
|
47230
47230-16270 Cap Assy, Brake Master Cylinder Reservoir FillerBRAKE MASTER CYLINDER RESERVOIR FILLER [09.1994 -] EL5#..LHD |
47230-16270 |
US $26.21 |
||
| replacement | |||||
|
47230
|
47230
47230-16010 Cap Assy, Brake Master Cylinder Reservoir Filler[09.1994 -] EL5#..LHD |
47230-16010 |
US $9.43 |
||
|
47255
|
47255
47255-20010 Grommet, Master Cylinder Reservoir[09.1994 -] EL5#..LHD |
47255-20010 |
US $7.86 |
||
|
47264
|
47264
47264-20060 Clevis, Master Cylinder Push Rod[09.1994 - 08.1995] EL5# |
47264-20060 |
US $7.34 |
||
|
47264
|
47264
47264-20070
Clevis, Master Cylinder Push Rod
[08.1995 - 12.1997] EL5#..LHD |
47264-20070 |
— | ||
|
47265
|
47265
47265-20080 Boot, Master Cylinder[09.1994 - 08.1996] EL5#..LHD |
47265-20080 |
US $4.95 |
||
|
47275
|
47275
47275-12020 Gasket, Brake Master Cylinder[09.1994 -] EL5# |
47275-12020 |
from US $1.17 |
||
|
47295
|
47295
47295-20040 Float, Switch Operating[08.1996 -] EL5#..LHD |
47295-20040 |
US $10.63 |
||
|
47299
|
47299
47299-16020 Strainer, Brake Master Cylinder Reservoir[09.1994 -] EL5#..LHD |
47299-16020 |
US $9.17 |
||
|
8271516220
|
8271516220
82715-16220 Bracket,wiring Harness Clamp |
82715-16220 |
US $6.99 |
||
|
9014940017
|
9014940017
90149-40017 New Genuine Part |
90149-40017 |
US $1.60 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
