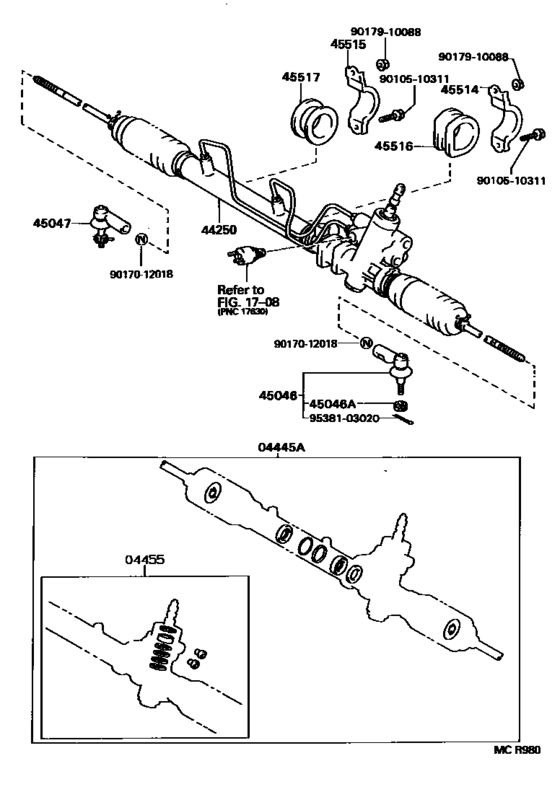

Front Steering Gear & Link ([09.1994 - ] POWER STEERING (9409- )LHD) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- EL50
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-16080
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[09.1994 - 07.1999] EL5#..LHD |
04445-16080 |
— | ||
|
04455
|
04455
04455-16080
Gasket Kit, Power Steering Control Valve Overhole
[09.1994 - 07.1999] EL5#..LHD |
04455-16080 |
— | ||
|
44250
|
44250
44250-16250 Gear Assy, Power Steering(For Rack & Pinion)[09.1994 - 07.1999] EL50..LHD |
44250-16250 |
US $1,368.64 |
||
|
44250
|
44250
44250-16260 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [09.1994 - 10.1996] EL50..LHD..GEN BOLIVIA SPEC |
44250-16260 |
US $1,361.36 |
||
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod[09.1994 - 07.1999] EL5# |
45046-19206 |
US $53.35 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[09.1994 -] EL5# |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod[09.1994 - 07.1999] EL5# |
45046-19206 |
US $53.35 |
||
|
45514
|
45514
45514-16050
Bracket, Steering Rack Housing, No.1
[09.1994 -] EL5# |
45514-16050 |
— | ||
|
45514
|
45514
45514-16060 Bracket, Steering Rack Housing, No.1[09.1994 - 07.1997] EL5# W(POWER STEERING) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[09.1994 - 07.1997] EL5# W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[07.1997 -] EL5# W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-16060 Bracket, Steering Rack Housing, No.1[08.1996 - 07.1997] EL5# W(POWER STEERING) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[08.1996 - 07.1997] EL5# W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[07.1997 -] EL5# W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45515-10050
Bracket, Steering Rack Housing, No.2
[09.1994 -] EL5# W(MANUAL STEERING) |
45515-10050 |
— | ||
|
45516
|
45516
45516-16050
Grommet, Steering Rack Housing, No.1
[09.1994 -] EL5# |
45516-16050 |
— | ||
|
45516
|
45516
45516-16060 Grommet, Steering Rack Housing, No.1[09.1994 -] EL5# W(POWER STEERING) |
45516-16060 |
US $21.43 |
||
|
45517
|
45517
45517-10070 Grommet, Steering Rack Housing, No.2[09.1994 -] EL5# W(POWER STEERING) |
45517-10070 |
US $17.63 |
||
|
45517
|
45517
45517-10080 Grommet, Steering Rack Housing, No.2[09.1994 -] EL5# |
45517-10080 |
US $13.10 |
||
|
9010510311
|
9010510311
90105-10311 New Genuine Part |
90105-10311 |
US $2.62 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
