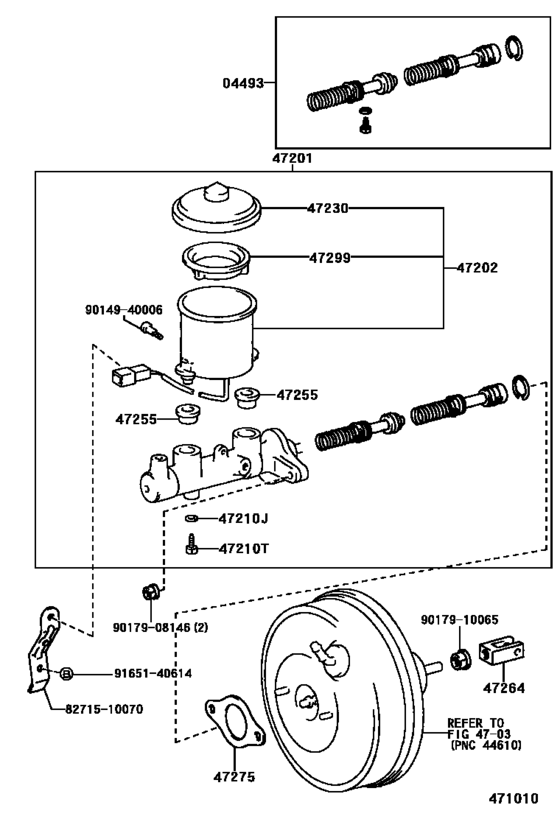

Brake Master Cylinder ([09.1994 - ] (9409- )RHD) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- EL50
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-10160 Cylinder Kit, Brake Master[09.1994 - 12.1995] EL50..RHD |
04493-10160 |
US $66.98 |
||
|
04493
|
04493
04493-10190 Cylinder Kit, Brake Master[12.1995 -] EL50..RHD |
04493-10190 |
US $85.90 |
||
|
47201
|
47201
47201-10240
Cylinder Sub-Assy, Brake Master
[12.1995 - 12.1997] EL50..RHD |
47201-10240 |
— | ||
|
47201
|
47201
47201-16180 Cylinder Sub-Assy, Brake Master[09.1994 - 12.1995] EL50..RHD |
47201-16180 |
US $352.35 |
||
|
47201
|
47201
47201-16480 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [12.1997 -] EL50..RHD |
47201-16480 |
US $346.53 |
||
|
47202
|
47202
47220-10010 Reservoir Sub-Assy, Brake Master Cylinder[09.1994 - 12.1997] EL50..RHD |
47220-10010 |
US $131.04 |
||
|
47202
|
47202
47220-16120 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [12.1997 -] EL50..RHD |
47220-16120 |
US $131.04 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[09.1994 -] EL50..RHD |
90430-06104 |
from US $1.60 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[09.1994 -] EL50..RHD |
90109-06077 |
from US $2.56 |
||
|
47230
|
47230
47230-16010 Cap Assy, Brake Master Cylinder Reservoir Filler[09.1994 -] EL50..RHD |
47230-16010 |
US $9.43 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[09.1994 -] EL50..RHD |
47255-16010 |
from US $5.76 |
||
|
47264
|
47264
47264-20060 Clevis, Master Cylinder Push Rod[09.1994 - 08.1995] EL5# |
47264-20060 |
US $7.34 |
||
|
47264
|
47264
47264-20070
Clevis, Master Cylinder Push Rod
[12.1997 -] EL5# |
47264-20070 |
— | ||
|
47275
|
47275
47275-12020 Gasket, Brake Master Cylinder[09.1994 -] EL5# |
47275-12020 |
from US $1.92 |
||
|
47299
|
47299
47299-16010 Strainer, Brake Master Cylinder Reservoir[09.1994 -] EL50..RHD |
47299-16010 |
US $8.01 |
||
|
8271510070
|
8271510070
82715-10070 Bracket,wiring Harness Clamp |
82715-10070 |
US $5.24 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
from US $1.44 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
