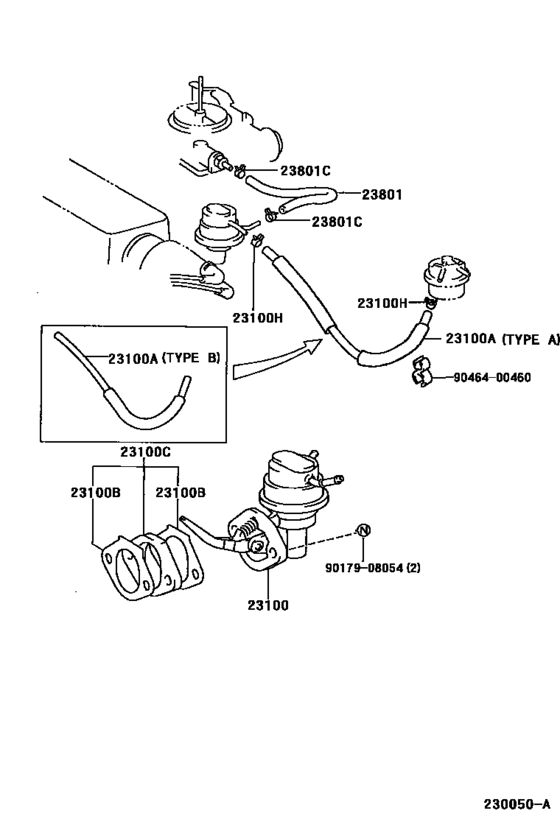

Fuel Pump & Pipe ([09.1994 - ] (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- EL50
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-11080
Pump Assy, Fuel
[09.1994 - 03.1995] 2E..EL50 |
23100-11080 |
— | ||
| replacement | |||||
|
23100
|
23100
23100-11081 Pump Assy, Fuel[09.1994 - 03.1995] 2E..EL50 |
23100-11081 |
US $117.06 |
||
|
23100
|
23100
23100-11081 Pump Assy, Fuel[03.1995 -] 2E..EL50 |
23100-11081 |
US $117.06 |
||
|
23100A
|
23100A
23271-11050
Hose, Fuel
[09.1994 -] 2E..EL50..GEN TYPE A:REFER TO ILLUSTRATION |
23271-11050 |
— | ||
|
23100B
|
23100B
90923-05024 Gasket, Fuel Pump(For Cylinder Block Plate Plug)[09.1994 -] 2E..EL50 |
90923-05024 |
US $3.49 |
||
|
23100C
|
23100C
23915-10021 Insulator, Fuel Pump[09.1994 -] 2E..EL50 |
23915-10021 |
US $8.56 |
||
|
23100H
|
23100H
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)[09.1994 -] 2E..EL50 |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[09.1994 -] 2E..EL50 |
96132-51100 |
from US $1.74 |
||
|
23801
|
23801
95334-06010 Hose, Fuel[09.1994 -] 2E..EL50 |
95334-06010 |
from US $2.96 |
||
|
23801C
|
23801C
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
[09.1994 -] 2E..EL50 |
96135-41100 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[09.1994 -] 2E..EL50 |
96135-51100 |
from US $1.93 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9046400460
|
9046400460
90464-00460 Clamp Or Clip(For Radiator Reserve Tank Hose No.2) |
90464-00460 |
US $1.60 |
||
