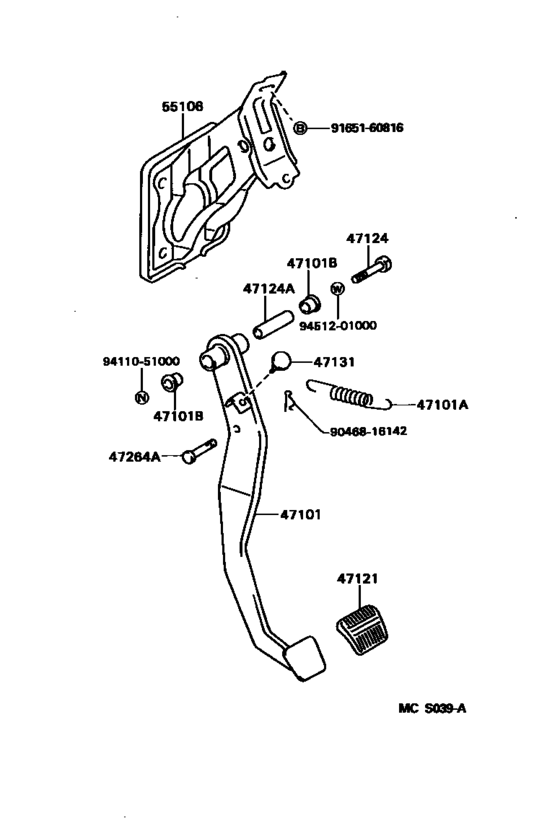

Brake Pedal & Bracket ([09.1994 - ] (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-16200 Pedal Sub-Assy, BrakeBRAKE [09.1994 - 12.1997] EL53..ATM |
47101-16200 |
US $37.56 |
||
|
47101A
|
47101A
90507-14038 Spring(For Brake Pedal Return)[09.1994 -] EL53 |
90507-14038 |
US $3.49 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[09.1994 -] EL53 |
90386-13015 |
from US $0.78 |
||
|
47121
|
47121
47121-12020 Pad, Brake Pedal[09.1994 -] EL53..ATM |
47121-12020 |
from US $5.17 |
||
|
47124
|
47124
90101-10015 Shaft, Clutch Pedal[09.1994 -] EL53 |
90101-10015 |
from US $1.27 |
||
| replacement | |||||
|
47124
|
47124
90101100151 Bolt, Hexagon[09.1994 -] EL53 |
90101100151 |
US $1.11 |
||
|
47124A
|
47124A
90387-10003 Collar, Clutch Pedal Shaft[09.1994 -] EL53 |
90387-10003 |
from US $4.11 |
||
|
47131
|
47131
90541-06036 Cushion, No.1(For Clutch Pedal)[09.1994 -] EL53 |
90541-06036 |
from US $0.98 |
||
| replacement | |||||
|
47131
|
47131
90541060361
CUSHION
[09.1994 -] EL53 |
90541060361 |
— | ||
|
47264A
|
47264A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[09.1994 -] EL53 |
90249-08051 |
US $2.72 |
||
|
55106
|
55106
55106-16160 Support Sub-Assy, Brake PedalBRAKE PEDAL [09.1994 - 12.1997] EL53 |
55106-16160 |
US $35.82 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
