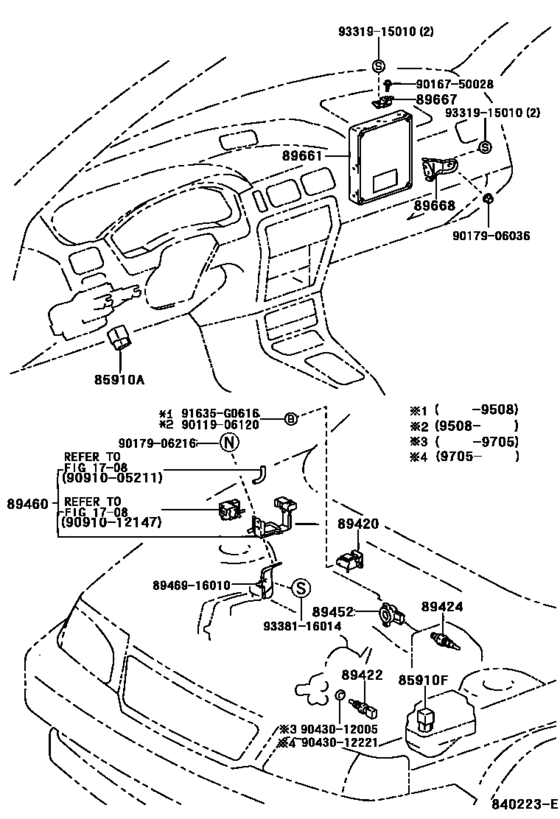

Electronic Fuel Injection System ([09.1994 - ] (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02009 Relay Assy[09.1994 -] EL53 |
90987-02009 |
US $64.60 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[09.1994 -] EL53 |
90987-02009 |
US $64.60 |
||
|
89420
|
89420
89420-0W020 Sensor Assy, VacuumVACUUM [04.1996 - 12.1997] EL53 |
89420-0W020 |
US $126.67 |
||
|
89420
|
89420
89420-16060
Sensor Assy, Vacuum
[09.1994 - 04.1996] EL53 |
89420-16060 |
— | ||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[09.1994 - 05.1997] EL53 |
89422-20010 |
from US $36.78 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[09.1994 -] EL53 |
89424-12010 |
from US $57 |
||
|
89452
|
89452
89452-22090 Sensor, Throttle Position[09.1994 - 08.1996] EL53 |
89452-22090 |
from US $138.55 |
||
|
89661
|
89661
89661-16350 Computer, Engine ControlENGINE CONTROL [09.1994 - 12.1994] EL53..3FC |
89661-16350 |
US $1,375.92 |
||
| replacement | |||||
|
89661
|
89661
89661-16352 Computer, Engine ControlENGINE CONTROL [09.1994 - 12.1994] EL53..3FC |
89661-16352 |
US $1,375.92 |
||
|
89661
|
89661
89661-16351 Computer, Engine ControlENGINE CONTROL [12.1994 - 08.1995] EL53..3FC |
89661-16351 |
US $1,375.92 |
||
| replacement | |||||
|
89661
|
89661
89661-16352 Computer, Engine ControlENGINE CONTROL [12.1994 - 08.1995] EL53..3FC |
89661-16352 |
US $1,375.92 |
||
|
89661
|
89661
89661-16352 Computer, Engine ControlENGINE CONTROL [08.1995 - 08.1996] EL53..3FC |
89661-16352 |
US $1,375.92 |
||
|
89667
|
89667
89667-16060
Bracket, Engine Control Computer
[09.1994 -] EL53 |
89667-16060 |
— | ||
|
89668
|
89668
89668-16050 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [09.1994 - 08.1996] EL53 |
89668-16050 |
US $8.15 |
||
|
91635G0616
|
91635G0616
91635-G0616 BOLTWWASHER |
91635-G0616 |
US $0.96 |
||
|
8946916010
|
8946916010
89469-16010 Bracket, Altitude Compensation Switch |
89469-16010 |
US $12.23 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.70 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
