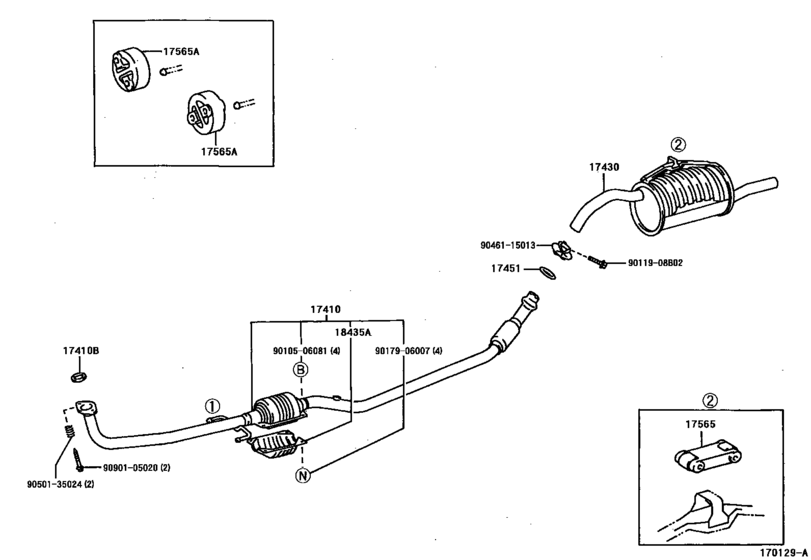

Exhaust Pipe ([09.1994 - ] (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-11690 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [09.1994 -] 5EFE..EL53..3FC,4F,5F |
17410-11690 |
US $1,108.02 |
||
|
17410B
|
17410B
90917-06080 Gasket, Exhaust Pipe[09.1994 - 03.1998] 5EFE..EL53 |
90917-06080 |
from US $16.03 |
||
|
17430
|
17430
17430-11710 Pipe Assy, Exhaust, TailEXHAUST, TAIL [09.1994 -] 5EFE..EL53 |
17430-11710 |
US $356.72 |
||
|
17451
|
17451
90917-06082 Gasket, Exhaust Pipe, Center[09.1994 -] 5EFE..EL53 |
90917-06082 |
from US $7.04 |
||
|
17565
|
17565
17566-11150 Support, Exhaust Pipe, No.5[09.1994 -] 5EFE..EL53 |
17566-11150 |
from US $16.36 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[09.1994 -] 5EFE..EL53 |
17565-11160 |
from US $9.17 |
||
|
18435A
|
18435A
18435-11020
Protector, Monolithic Converter
[09.1994 - 11.1998] 5EFE..EL53 |
18435-11020 |
— | ||
| replacement | |||||
|
18435A
|
18435A
18435-11040 Protector, Catalytic Converter[09.1994 - 11.1998] 5EFE..EL53 |
18435-11040 |
US $42.28 |
||
|
9011908B02
|
9011908B02
90119-08B02 BOLT WWASHER |
90119-08B02 |
from US $0.96 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046115013
|
9046115013
90461-15013 Clamp, Exhaust Pipe |
90461-15013 |
from US $13.79 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.52 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
