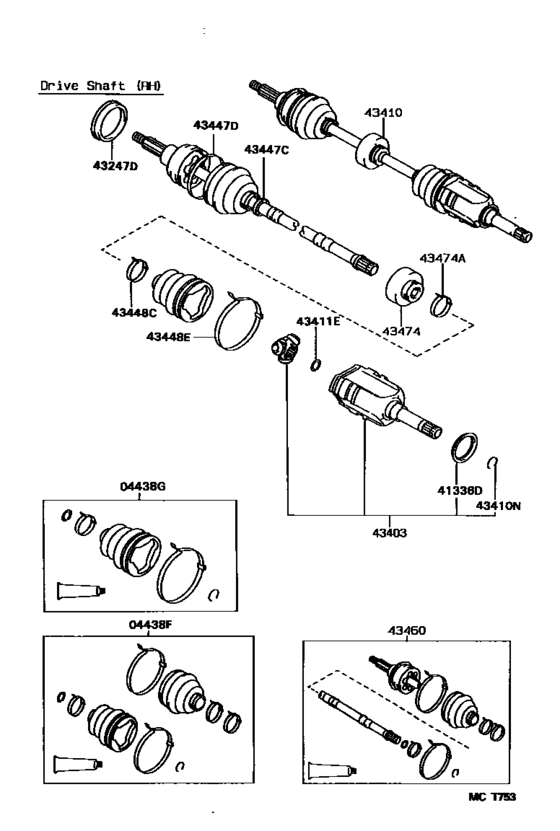

Front Drive Shaft ([09.1994 - ] (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-16090
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.1994 - 06.1998] EL53 |
04438-16090 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04438-16091 Boot Kit, Front Drive Shaft, In & Outboard[09.1994 - 06.1998] EL53 |
04438-16091 |
US $145.60 |
||
|
04438G
|
04438G
04438-16100 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.1994 - 06.1998] EL53 |
04438-16100 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04437-52140 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.1994 - 06.1998] EL53 |
04437-52140 |
from US $70.01 |
||
|
41336D
|
41336D
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[09.1994 -] EL53 |
41336-12010 |
from US $1.58 |
||
|
43247D
|
43247D
43247-16040
Deflector, Front Wheel Bearing Dust, No.2
[09.1994 -] EL53 |
43247-16040 |
— | ||
|
43403
|
43403
43403-16020 Joint Assy, Front Drive Inboard, Rh[09.1994 -] EL53 |
43403-16020 |
US $211.41 |
||
|
43410
|
43410
43410-16270 Shaft Assy, Front Drive, Rh[09.1994 - 09.1997] EL53 |
43410-16270 |
US $1,033.76 |
||
| replacements | |||||
|
43410
|
43410
43410-16290 Shaft Assy, Front Drive, Rh[09.1994 - 09.1997] EL53 |
43410-16290 |
US $1,078.90 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[09.1994 - 09.1997] EL53 |
90178-22001 |
from US $2.15 |
||
|
43410
|
43410
43410-16280 Shaft Assy, Front Drive, Rh[09.1994 - 09.1997] EL53 W(ABS) |
43410-16280 |
US $1,033.76 |
||
| replacements | |||||
|
43410
|
43410
43410-16300 Shaft Assy, Front Drive, Rh[09.1994 - 09.1997] EL53 W(ABS) |
43410-16300 |
US $1,075.98 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[09.1994 - 09.1997] EL53 W(ABS) |
90178-22001 |
from US $2.15 |
||
|
43410N
|
43410N
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[09.1994 -] EL53 |
90521-26004 |
from US $1.60 |
||
|
43411E
|
43411E
43425-16020 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[09.1994 -] EL53 |
43425-16020 |
US $0.44 |
||
|
43447C
|
43447C
42345-16140 Clamp (For Front Axle Outboard Joint Boot Rh)[09.1994 - 07.1999] EL53 ID=31.3 |
42345-16140 |
US $2.48 |
||
|
43447D
|
43447D
42345-16150 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[09.1994 -] EL53 |
42345-16150 |
US $3.20 |
||
|
43448C
|
43448C
42345-16140 Clamp (For Front Axle Outboard Joint Boot Rh)[09.1994 - 07.1999] EL53 |
42345-16140 |
US $2.48 |
||
|
43448E
|
43448E
42345-16150 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[09.1994 -] EL53 |
42345-16150 |
US $3.20 |
||
|
43460
|
43460
43460-19745 Shaft Assy, Front Drive Outboard Joint, Rh[09.1994 - 09.1997] EL53 |
43460-19745 |
US $658.11 |
||
| replacements | |||||
|
43460
|
43460
43460-80096 Shaft Assy, Front Drive Outboard Joint, Rh[09.1994 - 09.1997] EL53 |
43460-80096 |
US $659.57 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[09.1994 - 09.1997] EL53 |
90178-22001 |
from US $2.15 |
||
|
43460
|
43460
43460-19755 Shaft Assy, Front Drive Outboard Joint, Rh[09.1994 - 09.1997] EL53 W(ABS) |
43460-19755 |
US $658.11 |
||
| replacements | |||||
|
43460
|
43460
43460-80097 Shaft Assy, Front Drive Outboard Joint, Rh[09.1994 - 09.1997] EL53 W(ABS) |
43460-80097 |
US $659.57 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[09.1994 - 09.1997] EL53 W(ABS) |
90178-22001 |
from US $2.15 |
||
|
43474
|
43474
43474-16030 Damper, Drive Shaft[09.1994 -] EL53 |
43474-16030 |
US $46.01 |
||
|
43474A
|
43474A
42345-16140 Clamp (For Front Axle Outboard Joint Boot Rh)[09.1994 - 07.1999] EL53 |
42345-16140 |
US $2.48 |
||
