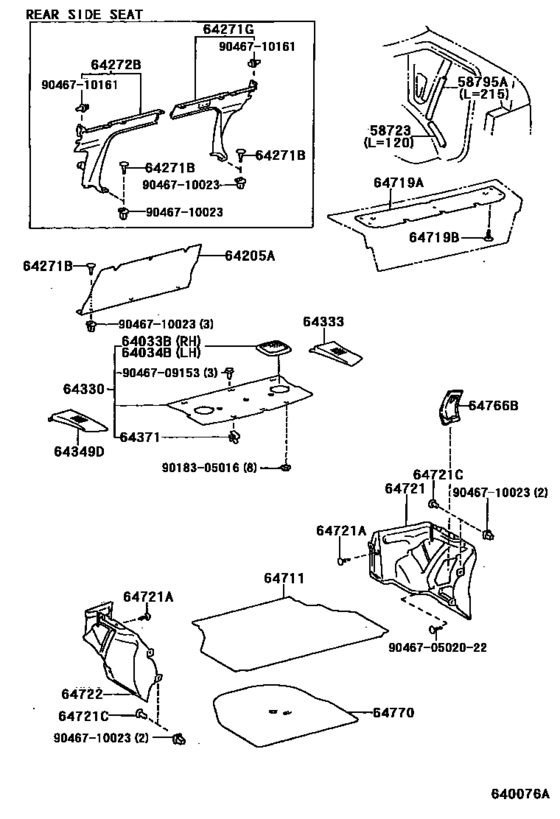

Package Tray Panel & Luggage Compartment Mat ([09.1994 - ] (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58723
|
58723
58723-16010 Protector, Luggage Compartment Service Cover, No.1LUGGAGE COMPARTMENT SERVICE COVER, NO.1 [09.1994 - 08.1996] EL53 |
58723-16010 |
US $5.39 |
||
| replacement | |||||
|
58723
|
58723
58795-16020 Trim, Jack House Opening[09.1994 - 08.1996] EL53 |
58795-16020 |
US $8.74 |
||
|
58795A
|
58795A
58795-16020 Trim, Jack House Opening[09.1994 - 08.1996] EL53 |
58795-16020 |
US $8.74 |
||
|
64205A
|
64205A
64275-16030-C0 Cover Sub-Assy, Room Partition[09.1994 - 08.1996] EL53..STD BLACK,TRIM1# |
64275-16030-C0 |
US $21.69 |
||
|
64271B
|
64271B
90467-07115-C0 Clip(For Front Floor Carpet)[09.1994 - 08.1996] EL53..STD BLACK,TRIM1# |
90467-07115-C0 |
US $1.16 |
||
|
64330
|
64330
64330-16600-B0 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [09.1994 - 08.1996] EL53 BLUISH GRAY,TRIM1# |
64330-16600-B0 |
US $165.98 |
||
| replacement | |||||
|
64330
|
64330
64330-16850-B1 Panel Assy, Package Tray Trim[09.1994 - 08.1996] EL53 BLUISH GRAY,TRIM1# |
64330-16850-B1 |
US $131.04 |
||
|
64333
|
64333
64333-16070-E0 Cover, Package Tray Trim, Side[09.1994 - 08.1996] EL53..STD OAK |
64333-16070-E0 |
US $50.09 |
||
| replacement | |||||
|
64333
|
64333
64333-16070-B1 Cover, Package Tray Trim, Side[09.1994 - 08.1996] EL53..STD OAK |
64333-16070-B1 |
US $50.09 |
||
|
64349D
|
64349D
64349-16050-E0 Cover, Package Tray Trim Side, Lh[09.1994 - 08.1996] EL53..STD OAK |
64349-16050-E0 |
US $50.09 |
||
| replacement | |||||
|
64349D
|
64349D
64349-16050-B1 Cover, Package Tray Trim Side, Lh[09.1994 - 08.1996] EL53..STD OAK |
64349-16050-B1 |
US $50.09 |
||
|
64371
|
64371
64371-16010 Retainer, Package Tray Trim[09.1994 -] EL53 |
64371-16010 |
US $5.68 |
||
|
64711
|
64711
64711-16150-C0 Mat, Luggage Compartment FloorLUGGAGE COMPARTMENT FLOOR [09.1994 - 08.1996] EL53..STD BLACK,TRIM1#; EL53..DX BLACK,TRIM1#,4# |
64711-16150-C0 |
US $144.14 |
||
|
64719A
|
64719A
64719-16030-C0 Cover, Luggage Compartment Door[09.1994 - 08.1996] EL53..STD BLACK,TRIM1# |
64719-16030-C0 |
US $46.88 |
||
|
64719B
|
64719B
90467-05096-22 Clip(For Rear Floor Finish Plate)[09.1994 - 08.1996] EL53..STD BLACK,TRIM1# |
90467-05096-22 |
from US $0.96 |
||
|
64770
|
64770
64770-16230
Cover Assy, Spare Wheel
[09.1994 -] EL53 |
64770-16230 |
— | ||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.28 |
||
|
9046709153
|
9046709153
90467-09153 Clip(For Package Tray Trim Panel) |
90467-09153 |
US $1.89 |
||
|
9046710023
|
9046710023
90467-10023 Clip(For Front Floor Mat) |
90467-10023 |
US $1.12 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
904670502022
|
904670502022
90467-05020-22 Clip, Instrument Panel (Black) |
90467-05020-22 |
US $0.96 |
||
