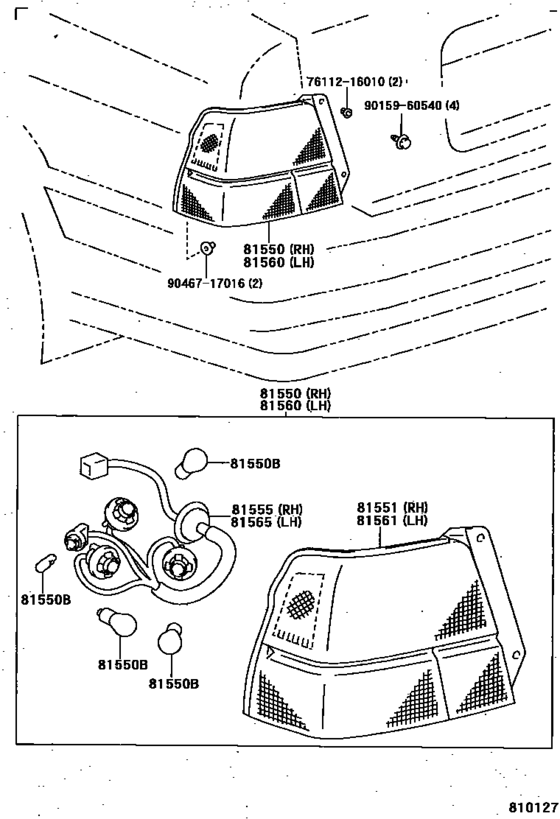

Rear Combination Lamp ([09.1994 - ] (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-16490 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [09.1994 - 12.1997] EL53 |
81550-16490 |
US $270.82 |
||
|
81550B
|
81550B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[09.1994 -] EL53 12V 5W |
90981-12010 |
from US $1.76 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[09.1994 - 12.1997] EL53 12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[09.1994 - 12.1997] EL53 12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-16490 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [09.1994 - 12.1997] EL53 |
81551-16490 |
US $227.14 |
||
|
81555
|
81555
81555-16490 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [09.1994 - 12.1997] EL53 |
81555-16490 |
US $39.17 |
||
|
81560
|
81560
81560-16530 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [09.1994 - 12.1997] EL53 |
81560-16530 |
US $270.82 |
||
|
81561
|
81561
81561-16530 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [09.1994 - 12.1997] EL53 |
81561-16530 |
US $227.14 |
||
|
81565
|
81565
81555-16490 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [09.1994 - 12.1997] EL53 |
81555-16490 |
US $39.17 |
||
|
7611216010
|
7611216010
76112-16010 CAP FLAG POLE |
76112-16010 |
US $0.96 |
||
|
9015960540
|
9015960540
90159-60540 SCREW W/WASHER |
90159-60540 |
from US $0.84 |
||
|
9046717016
|
9046717016
90467-17016 CLIP |
90467-17016 |
US $3.04 |
