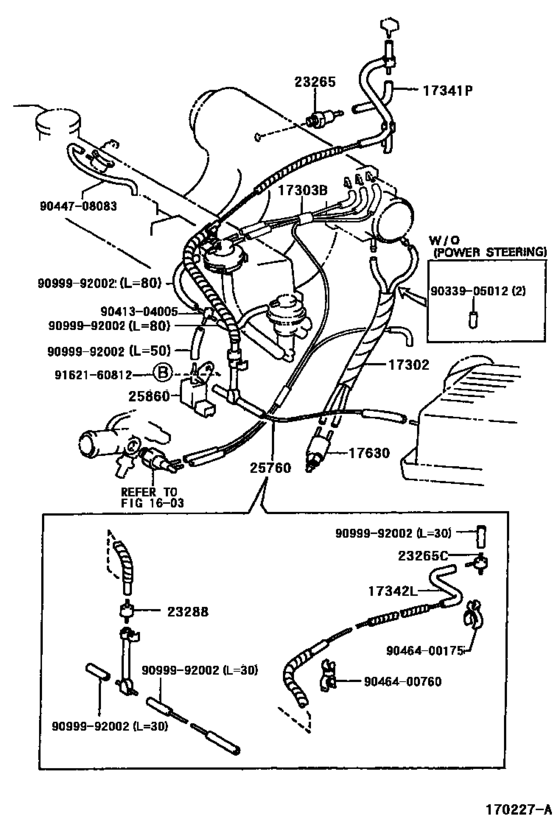

Vacuum Piping ([03.1996 - 08.1996] (9603-9608)) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-11011 Hose Sub-Assy, Air[11.1994 -] 5EFE..EL53 NO.1 |
17302-11011 |
US $29.12 |
||
|
17302
|
17302
17302-11020 Hose Sub-Assy, AirAIR [09.1994 - 11.1994] 5EFE..EL53 |
17302-11020 |
US $55.18 |
||
| replacement | |||||
|
17302
|
17302
17302-11011 Hose Sub-Assy, Air[09.1994 - 11.1994] 5EFE..EL53 |
17302-11011 |
US $29.12 |
||
|
17303B
|
17303B
17303-11820 Pipe Sub-Assy, Air, No.1AIR, NO.1 [09.1994 - 08.1996] 5EFE..EL53 |
17303-11820 |
US $21.11 |
||
|
17341P
|
17341P
17341-11380 Hose, AirAIR [04.1995 -] 5EFE..EL53 |
17341-11380 |
US $7.43 |
||
|
17342L
|
17342L
17342-11200 Hose, Air, No.2AIR, NO.2 [03.1996 - 08.1996] 5EFE..EL53 |
17342-11200 |
US $7.43 |
||
|
17630
|
17630
17630-11060
Valve Assy, Air Control
[09.1994 - 08.1995] 5EFE..EL53 |
17630-11060 |
— | ||
|
17630
|
17630
17630-11070 Valve Assy, Air Control[08.1995 -] 5EFE..EL53 |
17630-11070 |
US $101.92 |
||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[09.1994 - 03.1995] 5EFE..EL53 |
90917-11022 |
from US $15.50 |
||
|
23265
|
23265
90917-11037 Filter, Gas, No.1[03.1995 -] 5EFE..EL53 |
90917-11037 |
from US $18.39 |
||
|
23265C
|
23265C
90917-11030 Filter, Gas, No.1[04.1995 - 03.1996] 5EFE..EL53 |
90917-11030 |
US $8.56 |
||
|
23265C
|
23265C
90917-11040 Filter, Gas[03.1996 -] 5EFE..EL53 |
90917-11040 |
US $22.71 |
||
|
23288
|
23288
90925-04004 Valve, Vacuum Transmitting, No.1[03.1996 -] 5EFE..EL53 |
90925-04004 |
US $12.93 |
||
|
25760
|
25760
25760-11370 Hose Assy, Vacuum TransmittingVACUUM TRANSMITTING [03.1996 - 08.1996] 5EFE..EL53 |
25760-11370 |
US $82.99 |
||
|
25860
|
25860
25860-11330
Hose Assy, Vacuum Transmitting
[09.1994 - 08.1996] 5EFE..EL53 |
25860-11330 |
— | ||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9044708083
|
9044708083
90447-08083
Hose, Front Differential Vacuum, No.3
|
90447-08083 |
— | ||
|
9046400175
|
9046400175
90464-00175 New Genuine Part |
90464-00175 |
US $5.59 |
||
|
9046400760
|
9046400760
90464-00760 New Genuine Part |
90464-00760 |
US $3.93 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162160812
|
9162160812
91621-60812
BOLTWWASHER
|
91621-60812 |
— | ||
| replacement | |||||
|
9162160812
|
9162160812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
