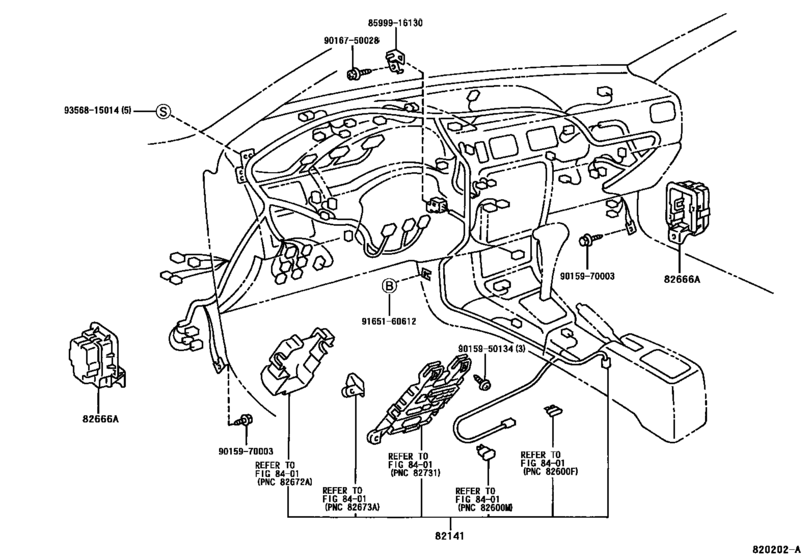

Wiring & Clamp ([09.1994 - ] INSTRUMENT WIRE (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-16010 Wire, Instrument PanelINSTRUMENT PANEL [09.1994 - 05.1995] EL53..USA W(REAR WINDOW DEFOGGER) |
82141-16010 |
US $1,246.34 |
||
|
82141
|
82141
82141-16030 Wire, Instrument PanelINSTRUMENT PANEL [09.1994 - 05.1995] EL53..USA COLD SPEC |
82141-16030 |
US $1,246.34 |
||
|
82141
|
82141
82141-16050 Wire, Instrument PanelINSTRUMENT PANEL [09.1994 - 08.1996] EL53..USA PUERTORICO SPEC |
82141-16050 |
US $1,415.23 |
||
|
82141
|
82141
82141-16650 Wire, Instrument PanelINSTRUMENT PANEL [05.1995 - 08.1996] EL53..ATM..USA |
82141-16650 |
US $656.66 |
||
|
82141
|
82141
82141-16660 Wire, Instrument PanelINSTRUMENT PANEL [05.1995 - 08.1996] EL53..ATM..USA COLD SPEC |
82141-16660 |
US $1,246.34 |
||
|
82666A
|
82666A
82666-16020 Holder, Connector No.2[09.1994 -] EL53 |
82666-16020 |
US $12.52 |
||
|
8599916130
|
8599916130
85999-16130 Bracket, Combination Relay |
85999-16130 |
US $11.79 |
||
|
9015950134
|
9015950134
90159-50134 SCREW |
90159-50134 |
US $1.92 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
