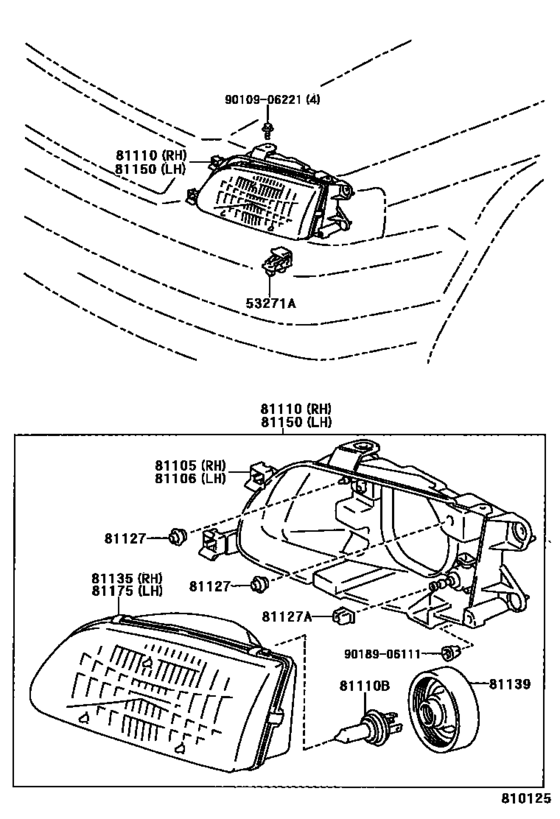

Headlamp ([08.1996 - ] (9608- )) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- DX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[09.1994 -] EL53 |
53271-12060 |
US $10.08 |
||
|
81105
|
81105
81105-16550 Housing Sub-Assy, Headlamp, RhHEADLAMP, RH [09.1994 -] EL53 |
81105-16550 |
US $52.42 |
||
|
81106
|
81106
81106-16550 Housing Sub-Assy, Headlamp, LhHEADLAMP, LH [09.1994 -] EL53 |
81106-16550 |
US $52.42 |
||
|
81110
|
81110
81110-16550 Headlamp Assy, RhRH [09.1994 - 08.1996] EL53 |
81110-16550 |
US $364 |
||
|
81110
|
81110
81110-16670
Headlamp Assy, Rh
[08.1996 - 12.1997] EL53 |
81110-16670 |
— | ||
|
81110
|
81110
81110-16770
Headlamp Assy, Rh
[12.1997 -] EL53 |
81110-16770 |
— | ||
|
81110B
|
81110B
90080-81063
Bulb(For Headlamp, No.1)
[12.1997 -] EL53 12V 60/55W |
90080-81063 |
— | ||
|
81110B
|
81110B
90981-13032 Bulb(For Headlamp, No.1)NO.1) [09.1994 - 08.1996] EL53 12V 65/45W,*HAL,*WH,KOITO |
90981-13032 |
from US $36.84 |
||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [08.1996 -] EL53 12V 60/55W,HALOGEN,KOITO |
90981-13058 |
from US $30.40 |
||
| replacement | |||||
|
81110B
|
81110B
90084-98033 Bulb(For Headlamp, No.1)NO.1) [08.1996 -] EL53 12V 60/55W,HALOGEN,KOITO |
90084-98033 |
US $52.88 |
||
|
81110B
|
81110B
90981-13068 Bulb(For Headlamp, No.1)NO.1) [09.1994 - 08.1996] EL53 12V 65/45W,*HAL,*WH |
90981-13068 |
US $32.03 |
||
|
81127
|
81127
81128-22630 Bearing, Headlamp, No.1[09.1994 -] EL53 |
81128-22630 |
US $4 |
||
|
81127A
|
81127A
90075-10806 Bearing, Headlamp[09.1994 -] EL53 |
90075-10806 |
US $2.33 |
||
|
81135
|
81135
81130-16550 Unit Assy, Headlamp, RhHEADLAMP, RH [09.1994 - 08.1996] EL53 |
81130-16550 |
US $248.98 |
||
|
81135
|
81135
81130-16670
Unit Assy, Headlamp, Rh
[08.1996 - 12.1997] EL53 |
81130-16670 |
— | ||
|
81135
|
81135
81130-16770
Unit Assy, Headlamp, Rh
[12.1997 -] EL53 |
81130-16770 |
— | ||
|
81139
|
81139
81139-16770 Cover, Headlamp Socket[12.1997 -] EL53 |
81139-16770 |
US $12.16 |
||
|
81139
|
81139
90075-65005 Cover, Headlamp Socket[08.1996 - 12.1997] EL53 |
90075-65005 |
US $14.12 |
||
|
81150
|
81150
81150-16550 Headlamp Assy, LhLH [09.1994 - 08.1996] EL53 |
81150-16550 |
US $364 |
||
|
81150
|
81150
81150-16670
Headlamp Assy, Lh
[08.1996 - 12.1997] EL53 |
81150-16670 |
— | ||
|
81150
|
81150
81150-16770
Headlamp Assy, Lh
[12.1997 -] EL53 |
81150-16770 |
— | ||
|
81175
|
81175
81170-16550 Unit Assy, Headlamp, LhHEADLAMP, LH [09.1994 - 08.1996] EL53 |
81170-16550 |
US $248.98 |
||
|
81175
|
81175
81170-16670
Unit Assy, Headlamp, Lh
[08.1996 - 12.1997] EL53 |
81170-16670 |
— | ||
|
81175
|
81175
81170-16770
Unit Assy, Headlamp, Lh
[12.1997 -] EL53 |
81170-16770 |
— | ||
|
9010906221
|
9010906221
90109-06221
BOLTFOLDING SEAT
|
90109-06221 |
— | ||
| replacement | |||||
|
9010906221
|
9010906221
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.72 |
||
|
9018906111
|
9018906111
90189-06111 CLIP |
90189-06111 |
US $1.92 |
||
