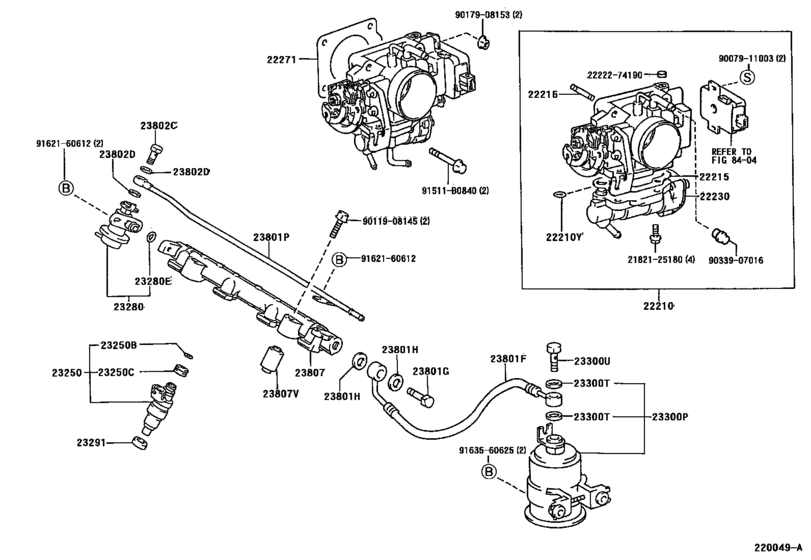

Fuel Injection System ([09.1994 - 08.1995] (9409-9508)5EFE) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- EL53
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-11250
Body Assy, Throttle
[09.1994 - 08.1995] 5EFE..EL53..4FC |
22210-11250 |
— | ||
|
22210
|
22210
22210-11430
Body Assy, Throttle
[08.1995 - 08.1996] 5EFE..EL53..4FC |
22210-11430 |
— | ||
|
22210
|
22210
22210-11560
Body Assy, Throttle
[08.1996 - 12.1997] 5EFE..EL53..4FC |
22210-11560 |
— | ||
|
22210
|
22210
22210-11620 Body Assy, ThrottleTHROTTLE [12.1997 -] 5EFE..EL53..4FC |
22210-11620 |
US $1,218.67 |
||
|
22210Y
|
22210Y
96711-19009 Ring, O(For Oil Level Gage Guide)[09.1994 - 08.1995] 5EFE..EL53 |
96711-19009 |
US $1.92 |
||
|
22215
|
22215
22215-11110 Gasket, Throttle Body Cover[09.1994 - 08.1995] 5EFE..EL53 |
22215-11110 |
US $5.42 |
||
|
22215
|
22215
22215-74400 Gasket, Throttle Body Cover[08.1995 -] 5EFE..EL53 |
22215-74400 |
US $7.04 |
||
|
22216
|
22216
90079-13010 Screw, Dash Pot Adjusting[09.1994 - 08.1995] 5EFE..EL53..4FC |
90079-13010 |
US $2.91 |
||
|
22230
|
22230
22230-11140
Valve Assy, Auxiliary Air
[09.1994 - 08.1995] 5EFE..EL53..4FC |
22230-11140 |
— | ||
|
22271
|
22271
22271-11030 Gasket, Throttle Body[09.1994 -] 5EFE..EL53 |
22271-11030 |
from US $2.34 |
||
|
23250
|
23250
23209-11100 Injector Assy, Fuel[09.1994 - 08.1995] 5EFE..EL53 |
23209-11100 |
US $276.64 |
||
|
23250
|
23250
23209-11110 Injector Assy, FuelFUEL [08.1995 -] 5EFE..EL53 |
23209-11110 |
US $273.73 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[09.1994 - 12.1998] 5EFE..EL53 |
90301-07001 |
from US $2.93 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[12.1998 -] 5EFE..EL53 |
90301-07024 |
US $3.04 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[09.1994 -] 5EFE..EL53 |
90480-13005 |
from US $2.50 |
||
|
23280
|
23280
23280-11070 Regulator Assy, Fuel PressureFUEL PRESSURE [09.1994 - 08.1995] 5EFE..EL53 |
23280-11070 |
US $132.50 |
||
|
23280
|
23280
23280-11080
Regulator Assy, Fuel Pressure
[08.1995 - 08.1996] 5EFE..EL53 |
23280-11080 |
— | ||
| replacement | |||||
|
23280
|
23280
23280-11110
Regulator Assy, Fuel Pressure
[08.1995 - 08.1996] 5EFE..EL53 |
23280-11110 |
— | ||
|
23280
|
23280
23280-11090
Regulator Assy, Fuel Pressure
[08.1996 - 03.1998] 5EFE..EL53 |
23280-11090 |
— | ||
| replacement | |||||
|
23280
|
23280
23280-11100
Regulator Assy, Fuel Pressure
[08.1996 - 03.1998] 5EFE..EL53 |
23280-11100 |
— | ||
|
23280
|
23280
23280-11100
Regulator Assy, Fuel Pressure
[03.1998 -] 5EFE..EL53 DENSO |
23280-11100 |
— | ||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[09.1994 - 05.1998] 5EFE..EL53 NO.1 |
90301-07001 |
from US $2.93 |
||
|
23280E
|
23280E
90301-07020 Ring, O(For Fuel Pressure Regulator)[08.1996 - 12.1997] 5EFE..EL53 NO.2 |
90301-07020 |
from US $2.69 |
||
|
23280E
|
23280E
90301-07024 Ring, O(For Fuel Injector)[05.1998 -] 5EFE..EL53 NO.1 |
90301-07024 |
US $3.04 |
||
|
23280E
|
23280E
90301-08005 Ring, O(For Fuel Pressure Regulator)O(FOR FUEL PRESSURE REGULATOR) [12.1997 -] 5EFE..EL53 NO.2 |
90301-08005 |
US $3.93 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[09.1994 -] 5EFE..EL53 |
23291-41010 |
from US $2.87 |
||
|
23300P
|
23300P
23300-19405 Filter, Fuel(For Efi)FUEL(FOR EFI) [09.1994 - 08.1995] 5EFE..EL53 |
23300-19405 |
US $103.38 |
||
|
23300P
|
23300P
23300-19445
Filter, Fuel(For Efi)
[08.1995 -] 5EFE..EL53 |
23300-19445 |
— | ||
|
23300T
|
23300T
90430-12026 Gasket[09.1994 -] 5EFE..EL53 |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[09.1994 -] 5EFE..EL53 |
90401-12097 |
from US $3.08 |
||
|
23801F
|
23801F
23271-11170 Hose, Fuel, No.1FUEL, NO.1 [09.1994 - 08.1995] 5EFE..EL53 |
23271-11170 |
US $125.22 |
||
|
23801F
|
23801F
23271-11220 Hose, Fuel, No.1FUEL, NO.1 [08.1995 - 11.1995] 5EFE..EL53 |
23271-11220 |
US $125.22 |
||
|
23801F
|
23801F
23271-11250 Hose, Fuel, No.1FUEL, NO.1 [11.1995 - 08.1996] 5EFE..EL53 |
23271-11250 |
US $125.22 |
||
| replacement | |||||
|
23801F
|
23801F
23271-11251 Hose, Fuel, No.1FUEL, NO.1 [11.1995 - 08.1996] 5EFE..EL53 |
23271-11251 |
US $125.22 |
||
|
23801F
|
23801F
23271-11251 Hose, Fuel, No.1FUEL, NO.1 [08.1996 -] 5EFE..EL53 |
23271-11251 |
US $125.22 |
||
|
23801G
|
23801G
90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set)[09.1994 - 11.1995] 5EFE..EL53 |
90401-12029 |
from US $8.04 |
||
|
23801G
|
23801G
90401-12033 Bolt, Union(For Fuel Pipe)[11.1995 -] 5EFE..EL53 |
90401-12033 |
US $7.34 |
||
|
23801H
|
23801H
23279-74010 Gasket(For Fuel Pump Hose)[11.1995 -] 5EFE..EL53 |
23279-74010 |
from US $1.19 |
||
|
23801H
|
23801H
90430-12026 Gasket[09.1994 - 11.1995] 5EFE..EL53 |
90430-12026 |
from US $0.88 |
||
|
23801P
|
23801P
23801-11050 Pipe Sub-Assy, Fuel, No.1[09.1994 - 08.1995] 5EFE..EL53 |
23801-11050 |
US $35.82 |
||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[09.1994 - 08.1995] 5EFE..EL53 |
90401-08004 |
US $3.14 |
||
|
23802D
|
23802D
90430-08014 Gasket(For Oil Filter Outlet Pipe)[09.1994 - 08.1995] 5EFE..EL53 |
90430-08014 |
from US $0.86 |
||
|
23807
|
23807
23814-11060
Pipe Sub-Assy, Fuel Delivery
[09.1994 - 08.1995] 5EFE..EL53 |
23814-11060 |
— | ||
|
23807
|
23807
23814-11070
Pipe Sub-Assy, Fuel Delivery
[08.1995 -] 5EFE..EL53 |
23814-11070 |
— | ||
| replacement | |||||
|
23807
|
23807
23814-11071 Pipe Sub-Assy, Fuel Delivery[08.1995 -] 5EFE..EL53 |
23814-11071 |
US $77.17 |
||
|
23807V
|
23807V
23890-11010 Spacer, No.1(For Delivery Pipe)[09.1994 - 08.1995] 5EFE..EL53 |
23890-11010 |
US $9.90 |
||
|
23807V
|
23807V
23891-11020
Spacer, No.1(For Delivery Pipe)
[08.1995 -] 5EFE..EL53 |
23891-11020 |
— | ||
|
91511B0840
|
91511B0840
91511-B0840
Bolt(For Alternator)
|
91511-B0840 |
— | ||
| replacement | |||||
|
91511B0840
|
91511B0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
2222274190
|
2222274190
22222-74190
Gasket, Intake Air Control Valve, No.2
|
22222-74190 |
— | ||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9011908145
|
9011908145
90119-08145 Bolt(For Front Disc Brake Cylinder) |
90119-08145 |
US $3.32 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9163560625
|
9163560625
91635-60625
Screw(For Steering Column Tube)
|
91635-60625 |
— | ||
| replacement | |||||
|
9163560625
|
9163560625
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
