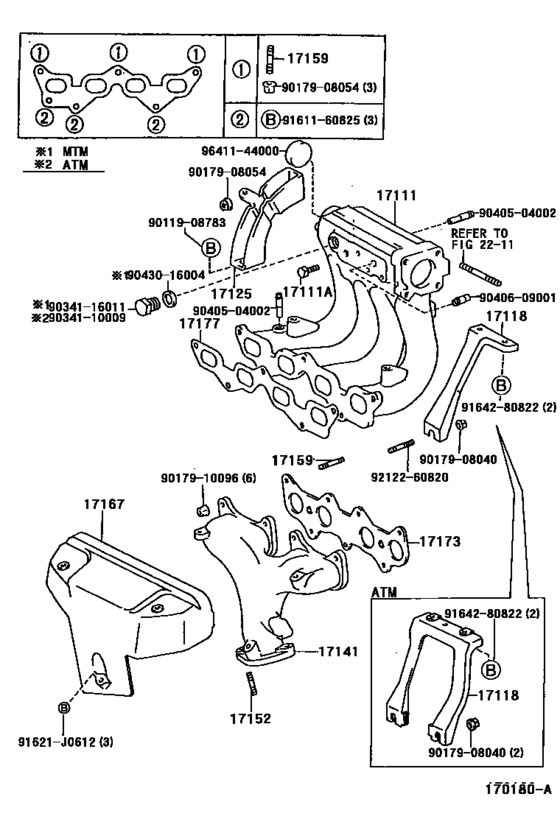

Manifold ([09.1994 - 08.1995] (9409-9508)5EFE) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- EL53
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-11240 Manifold, IntakeINTAKE [09.1994 - 04.1995] 5EFE..EL53..4FC |
17101-11240 |
US $299.94 |
||
|
17111
|
17111
17101-11241 Manifold, IntakeINTAKE [04.1995 - 08.1995] 5EFE..EL53..4FC |
17101-11241 |
US $299.94 |
||
|
17111
|
17111
17101-11270 Manifold, IntakeINTAKE [08.1995 - 08.1996] 5EFE..EL53 |
17101-11270 |
US $299.94 |
||
|
17111
|
17111
17101-11360 Manifold, IntakeINTAKE [08.1996 -] 5EFE..EL53 |
17101-11360 |
US $548.91 |
||
|
17111A
|
17111A
90345-51006 Plug, W/head Taper Screw, No.2[09.1994 - 08.1995] 5EFE..EL53..4FC |
90345-51006 |
from US $0.96 |
||
|
17118
|
17118
17118-11220 Stay, ManifoldMANIFOLD [09.1994 - 08.1995] 5EFE..EL53..4FC |
17118-11220 |
US $109.20 |
||
|
17118
|
17118
17118-11250
Stay, Manifold
[08.1995 -] 5EFE..EL53 |
17118-11250 |
— | ||
|
17125
|
17125
17125-11030 Stay, Surge Tank, No.1[09.1994 - 08.1995] 5EFE..EL53 |
17125-11030 |
US $19.36 |
||
|
17125
|
17125
17125-11050 Stay, Surge Tank, No.1[08.1995 -] 5EFE..EL53 |
17125-11050 |
US $25.92 |
||
|
17141
|
17141
17141-11240 Manifold, ExhaustEXHAUST [09.1994 - 08.1995] 5EFE..EL53..4FC |
17141-11240 |
US $365.46 |
||
|
17141
|
17141
17141-11310 Manifold, ExhaustEXHAUST [08.1995 -] 5EFE..EL53 |
17141-11310 |
US $355.26 |
||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[09.1994 - 08.1995] 2E,5EFE..EL5# |
90116-10017 |
from US $2.92 |
||
|
17159
|
17159
90116-10196 Bolt, Stud(For Manifold To Cylinder Head)[02.1995 -] 5EFE..EL53 EXHAUST MANIFOLD |
90116-10196 |
US $3.68 |
||
|
17159
|
17159
92122-61025 Bolt, Stud(For Manifold To Cylinder Head)[09.1994 - 02.1995] 5EFE..EL53 EXHAUST MANIFOLD |
92122-61025 |
US $3.68 |
||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[09.1994 -] 5EFE..EL53 INTAKE MANIFOLD |
92132-60825 |
US $3.20 |
||
|
17167
|
17167
17167-11210 Insulator, Exhaust Manifold Heat, No.1[09.1994 - 08.1995] 5EFE..EL53 |
17167-11210 |
US $90.27 |
||
| replacement | |||||
|
17167
|
17167
17167-11211 Insulator, Exhaust Manifold Heat, No.1[09.1994 - 08.1995] 5EFE..EL53 |
17167-11211 |
US $88.82 |
||
|
17167
|
17167
17167-11320
Insulator, Exhaust Manifold Heat, No.1
[08.1995 -] 5EFE..EL53 |
17167-11320 |
— | ||
|
17173
|
17173
17173-11050 Gasket, Exhaust Manifold To Head[09.1994 -] 5EFE..EL53 |
17173-11050 |
from US $15.85 |
||
|
17177
|
17177
17177-11021
Gasket, Intake Manifold To Head, No.1
[09.1994 - 04.1995] 5EFE..EL53 |
17177-11021 |
— | ||
|
17177
|
17177
17177-11050 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [08.1995 -] 5EFE..EL53 |
17177-11050 |
US $8.88 |
||
|
17177
|
17177
17177-11070 Gasket, Intake Manifold To Head, No.1[04.1995 - 08.1995] 5EFE..EL53 |
17177-11070 |
from US $8.79 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9011908783
|
9011908783
90119-08783 BOLT WWASHER |
90119-08783 |
from US $1.08 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9017910096
|
9017910096
90179-10096 New Genuine Part |
90179-10096 |
US $2.56 |
||
|
9034110009
|
9034110009
90341-10009 Plug, No.2 |
90341-10009 |
US $3.84 |
||
|
9034116011
|
9034116011
90341-16011 New Genuine Part |
90341-16011 |
US $4.66 |
||
|
9040504002
|
9040504002
90405-04002
Union, Vacuum Hose
|
90405-04002 |
— | ||
|
9040609001
|
9040609001
90406-09001 Union(For Positive Crankcase Ventilation) |
90406-09001 |
US $2.62 |
||
|
9043016004
|
9043016004
90430-16004 Gasket, Union Bolt |
90430-16004 |
US $0.55 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9164280822
|
9164280822
91642-80822 New Genuine Part |
91642-80822 |
US $1.89 |
||
|
9212260820
|
9212260820
92122-60820 Bolt, Stud(For Water Outlet) |
92122-60820 |
US $2.97 |
||
|
9641144000
|
9641144000
96411-44000 Plug, Tight, No.1 |
96411-44000 |
from US $4.19 |
||
