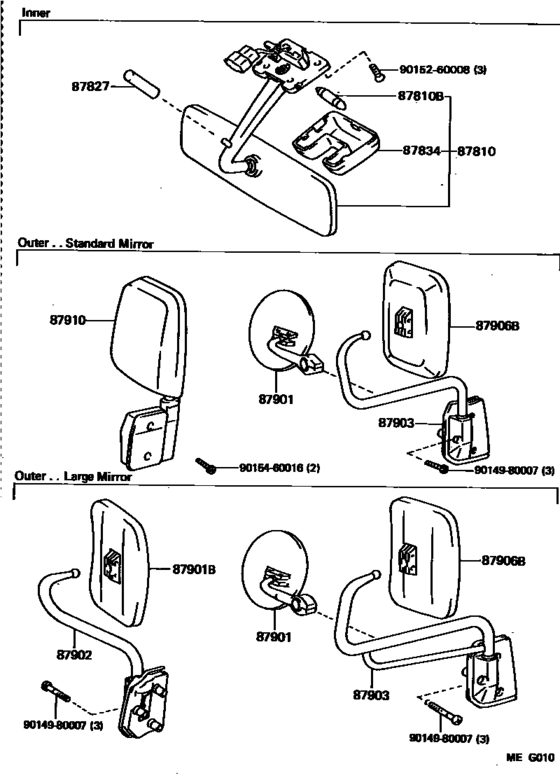

Mirror ([08.1985 - ] (8508- )) Diagram Toyota TOYOACE/ DYNA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LY60
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- DYNA
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- DYNA
- Deck,cab
- T3
- Loading Capacity
- 15T
- Fuel Induction
- DSL
- Building Condition
- IV
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-95418-01
Mirror Assy, Inner Rear View
[08.1985 - 08.1987] LY50,60,YY5#,61 BLACK,BLACK |
87810-95418-01 |
— | ||
|
87810B
|
87810B
90981-11027 Bulb(For Map Lamp)[08.1985 - 08.1987] LY50,60,YY5#,61 １２Ｖ １０Ｗ |
90981-11027 |
US $1.22 |
||
|
87827
|
87827
87828-23010 Absorber, Inner Rear View Mirror[08.1985 - 08.1987] LY50,60,YY5#,61 L=38.5 |
87828-23010 |
US $2.62 |
||
|
87827
|
87827
87828-30010 Absorber, Inner Rear View Mirror[08.1985 - 08.1987] LY50,60,YY5#,61 L=43.5 |
87828-30010 |
from US $2.46 |
||
|
87834
|
87834
81243-95701 Cover, Inner Rear View Mirror Stay Holder[08.1985 - 08.1987] LY50,60,YY5#,61 |
81243-95701 |
US $11.52 |
||
|
87901
|
87901
87906-95402 Mirror Sub-Assy, Outer Under View[08.1985 - 08.1987] LY50,60,YY5#,61..IV LARGE TYPE |
87906-95402 |
US $50.09 |
||
|
87901
|
87901
87907-95A00 Mirror Sub-Assy, Outer Under View[08.1985 - 08.1987] LY50,60,YY5#,61 STD TYPE |
87907-95A00 |
US $44.45 |
||
|
87901B
|
87901B
87901-95411
Mirror Sub-Assy, Outer Rear View, Rh
[08.1985 - 08.1987] LY50,60,YY5#,61..IV |
87901-95411 |
— | ||
| replacement | |||||
|
87901B
|
87901B
87901-37030 Mirror Sub-Assy, Outer Rear View, Rh[08.1985 - 08.1987] LY50,60,YY5#,61..IV |
87901-37030 |
US $87.32 |
||
|
87902
|
87902
87093-95400
Stay Sub-Assy, Outer Rear View Mirror, Upper Rh
[08.1985 - 08.1987] LY50,60,YY5#,61..IV |
87093-95400 |
— | ||
| replacement | |||||
|
87902
|
87902
87093-37030
Stay Sub-Assy, Outer Rear View Mirror, Upper Rh
[08.1985 - 08.1987] LY50,60,YY5#,61..IV |
87093-37030 |
— | ||
|
87903
|
87903
87094-95401 Stay Sub-Assy, Outer Rear View Mirror, Upper Lh[08.1985 - 08.1987] LY50,60,YY5#,61..IV LARGE TYPE |
87094-95401 |
US $115.02 |
||
|
87903
|
87903
87094-95A00
Stay Sub-Assy, Outer Rear View Mirror, Upper Lh
[08.1985 - 08.1987] LY50,60,YY5#,61 STD TYPE |
87094-95A00 |
— | ||
| replacement | |||||
|
87903
|
87903
87094-26020
Stay Sub-Assy, Outer Rear View Mirror, Upper Lh
[08.1985 - 08.1987] LY50,60,YY5#,61 STD TYPE |
87094-26020 |
— | ||
|
87906B
|
87906B
87901-95411
Mirror Sub-Assy, Outer Rear View, Rh
[08.1985 - 08.1987] LY50,60,YY5#,61..IV LARGE TYPE |
87901-95411 |
— | ||
| replacement | |||||
|
87906B
|
87906B
87901-37030 Mirror Sub-Assy, Outer Rear View, Rh[08.1985 - 08.1987] LY50,60,YY5#,61..IV LARGE TYPE |
87901-37030 |
US $87.32 |
||
|
87906B
|
87906B
87901-95A00 Mirror Sub-Assy, Outer Rear View[08.1985 - 08.1987] LY50,60,YY5#,61 STD TYPE |
87901-95A00 |
US $50.01 |
||
|
87910
|
87910
87910-95A10
Mirror Assy, Outer Rear View, Rh
[08.1985 - 08.1987] LY50,60,YY5#,61 STD TYPE |
87910-95A10 |
— | ||
|
9014980007
|
9014980007
90149-80007 SCREW |
90149-80007 |
US $6.72 |
||
|
9015260008
|
9015260008
90152-60008 New Genuine Part |
90152-60008 |
US $1.92 |
||
|
9015460016
|
9015460016
90154-60016
New Genuine Part
|
90154-60016 |
— | ||
