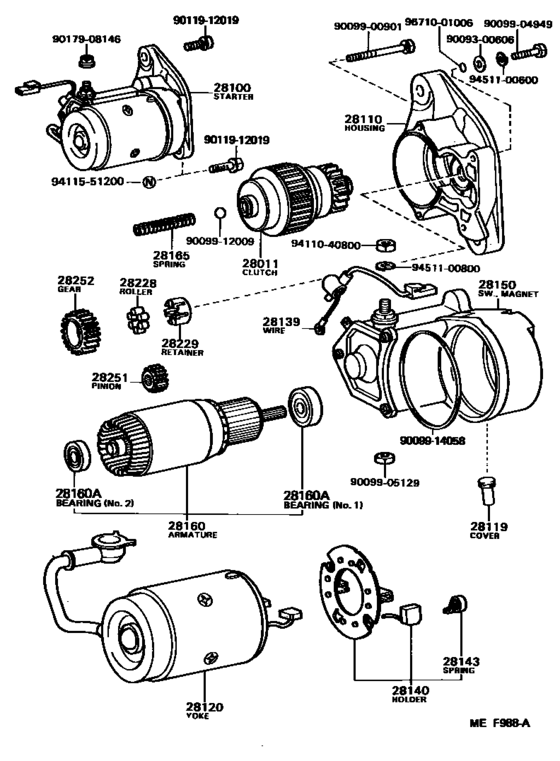

Starter ([08.1985 - ] 12V 2.0KW (8508- )2L) Diagram Toyota TOYOACE/ DYNA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LY60
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- DYNA
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- DYNA
- Deck,cab
- T3
- Loading Capacity
- 15T
- Fuel Induction
- DSL
- Building Condition
- IV
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28011-54010 |
from US $200.05 |
||
|
28011
|
28011
28011-54070 Clutch Sub-Assy, Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28011-54070 |
US $253.34 |
||
|
28100
|
28100
28100-54061 Starter Assy[08.1985 - 08.1987] 2L..LY50,60 １２Ｖ ２．５ＫＷ,12V 2.5KW,COLD SPEC |
28100-54061 |
US $2,052.96 |
||
| replacement | |||||
|
28100
|
28100
28100-54210 Starter Assy[08.1985 - 08.1987] 2L..LY50,60 １２Ｖ ２．５ＫＷ,12V 2.5KW,COLD SPEC |
28100-54210 |
US $2,169.44 |
||
|
28100
|
28100
28100-54070 Starter Assy[08.1985 - 08.1987] 2L..LY50,60 １２Ｖ ２．０ＫＷ,12V 2.0KW,MAGNET SW=STD |
28100-54070 |
US $1,805.44 |
||
| replacement | |||||
|
28100
|
28100
28100-54180 Starter Assy[08.1985 - 08.1987] 2L..LY50,60 １２Ｖ ２．０ＫＷ,12V 2.0KW,MAGNET SW=STD |
28100-54180 |
US $1,805.44 |
||
|
28100
|
28100
28100-54110 Starter Assy[08.1985 - 08.1987] 2L..LY50,60 １２Ｖ ２．０ＫＷ,12V 2.0KW,MAGNET SW=LONG LIFE |
28100-54110 |
US $1,863.68 |
||
| replacement | |||||
|
28100
|
28100
28100-54180 Starter Assy[08.1985 - 08.1987] 2L..LY50,60 １２Ｖ ２．０ＫＷ,12V 2.0KW,MAGNET SW=LONG LIFE |
28100-54180 |
US $1,805.44 |
||
|
28100
|
28100
28100-54130 Starter Assy[08.1985 - 08.1987] 2L..LY50,60 １２Ｖ ２．５ＫＷ,12V 2.5KW,MAGNET SW=LONG LIFE |
28100-54130 |
US $2,023.84 |
||
| replacement | |||||
|
28100
|
28100
28100-54210 Starter Assy[08.1985 - 08.1987] 2L..LY50,60 １２Ｖ ２．５ＫＷ,12V 2.5KW,MAGNET SW=LONG LIFE |
28100-54210 |
US $2,169.44 |
||
|
28110
|
28110
28115-54011
Housing Assy, Starter Drive
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28115-54011 |
— | ||
|
28110
|
28110
28115-54070
Housing Assy, Starter Drive
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28115-54070 |
— | ||
|
28119
|
28119
28119-54070
Cover, Starter End Frame
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28119-54070 |
— | ||
|
28119
|
28119
28119-77090
Cover, Starter End Frame
[08.1985 - 02.1987] 2L..LY50,60 12V 2.5KW |
28119-77090 |
— | ||
| replacement | |||||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[08.1985 - 02.1987] 2L..LY50,60 12V 2.5KW |
28199-77090 |
— | ||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[02.1987 - 08.1987] 2L..LY50,60 12V 2.5KW |
28199-77090 |
— | ||
|
28120
|
28120
28120-54070
Yoke Assy, Starter
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28120-54070 |
— | ||
|
28120
|
28120
28120-56081
Yoke Assy, Starter
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28120-56081 |
— | ||
|
28139
|
28139
28139-54023
Wire, Lead, No.1(For Starter)
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28139-54023 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56230
Wire, Lead, No.1(For Starter)
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28139-56230 |
— | ||
|
28139
|
28139
28139-54070
Wire, Lead, No.1(For Starter)
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28139-54070 |
— | ||
|
28140
|
28140
28140-54070
Holder Assy, Starter Brush
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28140-54070 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28140-77090 |
from US $60.98 |
||
|
28143
|
28143
90099-17115
Spring, Starter Brush
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
90099-17115 |
— | ||
|
28150
|
28150
28150-54011 Switch Assy, Magnet Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,COLD SPEC |
28150-54011 |
US $337.79 |
||
| replacement | |||||
|
28150
|
28150
28150-54430 Switch Assy, Magnet Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,COLD SPEC |
28150-54430 |
US $211.12 |
||
|
28150
|
28150
28150-54070
Switch Assy, Magnet Starter
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW MAGNET SW=STD |
28150-54070 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-54110 Switch Assy, Magnet Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW MAGNET SW=STD |
28150-54110 |
US $352.35 |
||
|
28150
|
28150
28150-54110 Switch Assy, Magnet Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW MAGNET SW=LONG LIFE |
28150-54110 |
US $352.35 |
||
|
28150
|
28150
28150-54130 Switch Assy, Magnet Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,MAGNET SW=LONG LIFE |
28150-54130 |
US $304.30 |
||
| replacement | |||||
|
28150
|
28150
28150-54430 Switch Assy, Magnet Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,MAGNET SW=LONG LIFE |
28150-54430 |
US $211.12 |
||
|
28160
|
28160
28160-47040
Armature Assy, Starter
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,COLD SPEC |
28160-47040 |
— | ||
| replacement | |||||
|
28160
|
28160
28160-54140 Armature Assy, Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,COLD SPEC |
28160-54140 |
US $283.05 |
||
|
28160
|
28160
28160-54070 Armature Assy, Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28160-54070 |
US $487.76 |
||
| replacement | |||||
|
28160
|
28160
28160-54071
Armature Assy, Starter
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28160-54071 |
— | ||
|
28160
|
28160
28160-54120 Armature Assy, Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,MAGNET SW=LONG LIFE |
28160-54120 |
US $822.64 |
||
| replacement | |||||
|
28160
|
28160
28160-54160 Armature Assy, Starter[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,MAGNET SW=LONG LIFE |
28160-54160 |
US $269.36 |
||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW,NO.2 |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,NO.1,COLD SPEC |
90099-10107 |
US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW,NO.2,COLD SPEC |
90099-10119 |
US $7.34 |
||
|
28160A
|
28160A
90099-10131 Bearing, Starter Armature[08.1985 - 08.1987] 2L..LY50,60 2.5KW,NO.2,MAGNET SW=LONG LIFE;12V 2.0KW,NO.1 |
90099-10131 |
US $7.43 |
||
|
28160A
|
28160A
90099-54120
Bearing, Starter Armature
[08.1985 - 08.1987] 2L..LY50,60 2.5KW,NO.1,MAGNET SW=LONG LIFE |
90099-54120 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[08.1985 - 08.1987] 2L,1Y,3Y#..LY50,60,YY5#,61 12V 1.0KW,1.4KW,2.0KW |
28165-26040 |
— | ||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28165-77090 |
— | ||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[08.1985 - 08.1987] 2L,1Y,3Y#..LY50,60,YY5#,61 12V 1.0KW,1.4KW,2.0KW |
28228-26040 |
— | ||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28228-56080 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[08.1985 - 08.1987] 2L,1Y,3Y#..LY50,60,YY5#,61 12V 1.0KW,1.4KW,2.0KW |
28229-26040 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28229-56080 |
— | ||
|
28251
|
28251
28251-54070
Plate, Lead, Switch Connecting
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28251-54070 |
— | ||
|
28252
|
28252
28254-54070
Pinion, Starter Drive
[08.1985 - 08.1987] 2L..LY50,60 12V 2.0KW |
28254-54070 |
— | ||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[08.1985 - 08.1987] 2L..LY50,60 12V 2.5KW |
28254-77090 |
— | ||
|
9009300606
|
9009300606
90093-00606
New Genuine Part
|
90093-00606 |
— | ||
|
9009900901
|
9009900901
90099-00901
New Genuine Part
|
90099-00901 |
— | ||
|
9009904949
|
9009904949
90099-04949
New Genuine Part
|
90099-04949 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914058
|
9009914058
90099-14058 Rubber(For Starter Yoke) |
90099-14058 |
US $3.84 |
||
|
9011912019
|
9011912019
90119-12019 Bolt(For Transaxle & Engine Setting) |
90119-12019 |
US $2.80 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9671001006
|
9671001006
96710-01006
Ring, O(For Transmission Oil Receiver)
|
96710-01006 |
— | ||
| replacement | |||||
|
9671001006
|
9671001006
96711-19006 Packing(For Radiator Drain Cock) |
96711-19006 |
US $2.88 |
||
