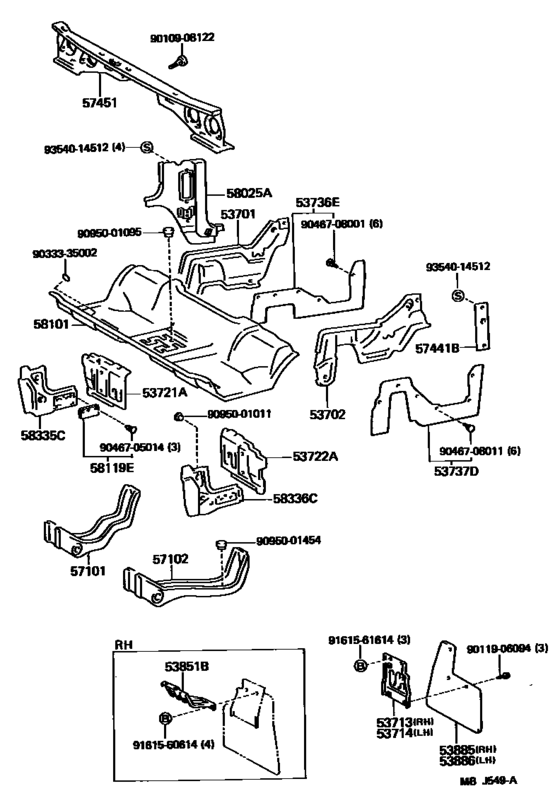

Front Floor Panel & Front Floor Member ([08.1985 - ] (8508- )TW) Diagram Toyota TOYOACE/ DYNA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LY60
- ENGINE
- 2L
- TRANSMISSION
- MTM
- CAB
- TW2
- Model
- DYNA
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- DYNA
- Deck,cab
- TW
- Loading Capacity
- 125
- Fuel Induction
- DSL
- Building Condition
- IV
- Deck(Material)
- TB
- Rear Tire
- WT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701
|
53701
53707-95012
Apron Sub-Assy, Front Fender, Rh
[08.1985 - 08.1987] LY50,60 |
53707-95012 |
— | ||
|
53702
|
53702
53708-95011 Apron Sub-Assy, Front Fender, Lh[08.1985 - 08.1987] LY50,60,YY5#,61 |
53708-95011 |
US $208.21 |
||
|
53713
|
53713
53715-95A02 Apron, Fender Side, Rh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
53715-95A02 |
US $31.89 |
||
|
53714
|
53714
53716-95A03 Apron, Fender Side, Lh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
53716-95A03 |
US $31.89 |
||
|
53721A
|
53721A
53721-95402 Apron, Front Fender, No.2 Rh[08.1985 - 08.1987] LY50,60,YY5#,61 |
53721-95402 |
US $43.97 |
||
| replacement | |||||
|
53721A
|
53721A
53721-37010 Apron Sub-Assy, Fender Side, Rh[08.1985 - 08.1987] LY50,60,YY5#,61 |
53721-37010 |
US $46.59 |
||
|
53722A
|
53722A
53722-95403 Apron, Front Fender, No.2 Lh[08.1985 - 08.1987] LY50,60,YY5#,61 |
53722-95403 |
US $28.10 |
||
| replacement | |||||
|
53722A
|
53722A
53722-37020 Apron Sub-Assy, Fender Side, Lh[08.1985 - 08.1987] LY50,60,YY5#,61 |
53722-37020 |
US $29.85 |
||
|
53736E
|
53736E
53736-95010 Seal, Front Fender Apron, Rh[08.1985 - 08.1987] LY50,60,YY5#,61 |
53736-95010 |
US $15.58 |
||
|
53737D
|
53737D
53737-95010 Seal, Front Fender Apron, Lh[08.1985 - 08.1987] LY50,60,YY5#,61 |
53737-95010 |
US $19.22 |
||
|
53851B
|
53851B
53851-95A00 Stay, Fender, Rh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
53851-95A00 |
US $30.28 |
||
|
53885
|
53885
53881-95A04 Mudguard, Front Rh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
53881-95A04 |
US $27.66 |
||
|
53886
|
53886
53881-95A04 Mudguard, Front Rh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
53881-95A04 |
US $27.66 |
||
|
57101
|
57101
57011-95010 Member Sub-Assy, Floor, Rh[08.1985 - 08.1987] LY50,60,YY5#,61 |
57011-95010 |
US $160.16 |
||
|
57102
|
57102
57012-95010 Menber Sub-Assy[08.1985 - 08.1987] LY50,60,YY5#,61 |
57012-95010 |
US $160.16 |
||
|
57441B
|
57441B
57441-92600 Cover, Floor Side Rail Plate[08.1985 - 08.1987] LY50,60,YY50,61..TW |
57441-92600 |
US $16.16 |
||
|
57451
|
57451
57408-95014 Member, Front Floor Cross[08.1985 - 03.1986] LY50,60,YY5#,61 |
57408-95014 |
US $301.39 |
||
|
57451
|
57451
57408-95018 Member, Front Floor Cross[03.1986 - 10.1986] LY50,60,YY5#,61 |
57408-95018 |
US $298.48 |
||
| replacement | |||||
|
57451
|
57451
57408-95014 Member, Front Floor Cross[03.1986 - 10.1986] LY50,60,YY5#,61 |
57408-95014 |
US $301.39 |
||
|
58025A
|
58025A
58025-95A00 Panel Sub-Assy, Floor Side Rail, Fr Rh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
58025-95A00 |
US $67.85 |
||
| replacement | |||||
|
58025A
|
58025A
58025-95A01 Panel Sub-Assy, Floor Side Rail, Fr RhFLOOR SIDE RAIL FRONT, RH [08.1985 - 08.1987] LY50,60,YY50,61..TW |
58025-95A01 |
US $67.85 |
||
|
58101
|
58101
58101-95051 Pan Sub-Assy, Front Floor[08.1985 - 08.1987] LY50,60,YY5#,61 |
58101-95051 |
US $557.65 |
||
| replacements | |||||
|
58101
|
58101
58101-95057 Pan Sub-Assy, Front Floor[08.1985 - 08.1987] LY50,60,YY5#,61 |
58101-95057 |
US $959.50 |
||
|
58101
|
58101
90333-20001 PLUG[08.1985 - 08.1987] LY50,60,YY5#,61 |
90333-20001 |
from US $1.12 |
||
|
58119E
|
58119E
58119-95400 Cover, Front Floor Side, Front[08.1985 - 08.1987] LY50,60,YY5#,61 |
58119-95400 |
US $8.30 |
||
|
58335C
|
58335C
58335-95401 Plate, Floor Side, Front Rh[08.1985 - 08.1987] LY50,60,YY5#,61 |
58335-95401 |
US $39.46 |
||
|
58336C
|
58336C
58336-95401 Plate, Floor Side, Front Lh[08.1985 - 08.1987] LY50,60,YY5#,61 |
58336-95401 |
US $39.46 |
||
|
9010908122
|
9010908122
90109-08122 New Genuine Part |
90109-08122 |
US $2.18 |
||
|
9011906094
|
9011906094
90119-06094
New Genuine Part
|
90119-06094 |
— | ||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9046705014
|
9046705014
90467-05014 Clip(for Luggage Compartment Trim Rear Cover) |
90467-05014 |
US $1.46 |
||
| replacement | |||||
|
9046705014
|
9046705014
90467-05014-B0 Clip, Roof Headlining |
90467-05014-B0 |
US $1.38 |
||
|
9046708001
|
9046708001
90467-08001 New Genuine Part |
90467-08001 |
US $2.33 |
||
| replacement | |||||
|
9046708001
|
9046708001
90467-08001-03 New Genuine Part |
90467-08001-03 |
US $1.75 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.36 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.35 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $3.60 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $2.72 |
||
|
9095001095
|
9095001095
90950-01095 New Genuine Part |
90950-01095 |
US $3.06 |
||
|
9095001454
|
9095001454
90950-01454 New Genuine Part |
90950-01454 |
US $1.46 |
||
|
9161560614
|
9161560614
91615-60614
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91615-60614 |
— | ||
| replacement | |||||
|
9161560614
|
9161560614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9161561614
|
9161561614
91615-61614
New Genuine Part
|
91615-61614 |
— | ||
|
9354014512
|
9354014512
93540-14512
New Genuine Part
|
93540-14512 |
— | ||
| replacement | |||||
|
9354014512
|
9354014512
93540-54512 New Genuine Part |
93540-54512 |
US $1.02 |
||
