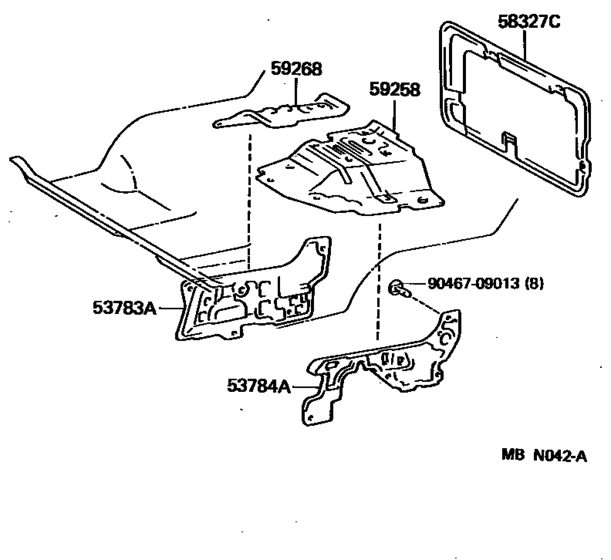

Floor Insulator ([08.1987 - ] (8708- )) Diagram Toyota TOYOACE/ DYNA
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- LY61
- ENGINE
- 3L
- TRANSMISSION
- MTM
- Model
- DYNA
- From
- 08.1988
- To
- 05.1995
- Vehicle Model
- DYNA
- Deck,cab
- T4
- Loading Capacity
- 15T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53783A
|
53783A
53783-95A00 Insulator, Apron Front Fender[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
53783-95A00 |
US $30.43 |
||
|
53784A
|
53784A
53784-95A01 Insulator, Apron Front Fender, Lh[08.1988 - 05.1995] LY5#,61,YY5#,61 |
53784-95A01 |
US $30.87 |
||
|
59258
|
59258
59258-95010 Insulator, Engine Service Hole Cover Main[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
59258-95010 |
US $99.01 |
||
|
59268
|
59268
59268-95010 Insulator, Engine Sub Cover[08.1987 - 05.1995] LY5#,6#,YY5#,61..MTM |
59268-95010 |
US $99.01 |
||
|
9046709013
|
9046709013
90467-09013 Clip, Step Plate Cover |
90467-09013 |
from US $1.60 |
