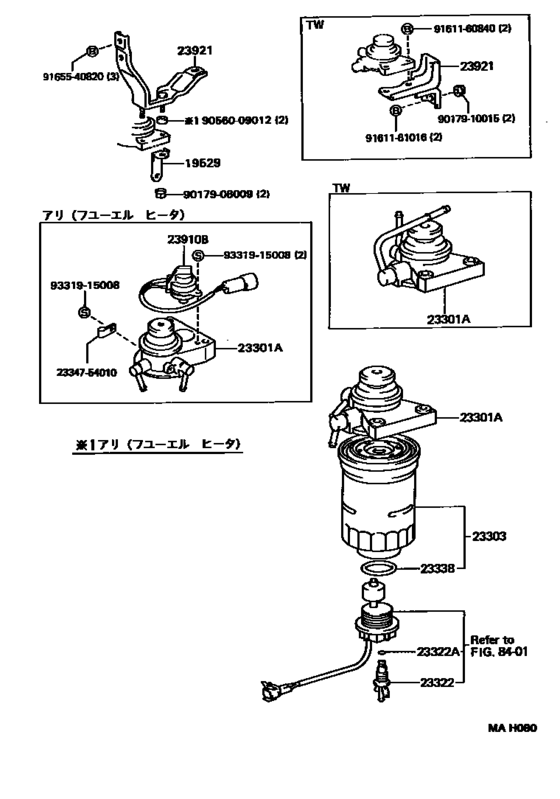

Fuel Filter ([08.1988 - ] (8808- )2L,3L) Diagram Toyota TOYOACE/ DYNA
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- LY61
- ENGINE
- 3L
- TRANSMISSION
- MTM
- Model
- DYNA
- From
- 08.1988
- To
- 05.1995
- Vehicle Model
- DYNA
- Deck,cab
- T4
- Loading Capacity
- 15T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19529
|
19529
19529-54010 Clamp[08.1988 - 05.1995] 2L,3L..LY5#,61..T1,T2,T3,T4 |
19529-54010 |
US $6.12 |
||
|
23301A
|
23301A
23301-54330 Cap Assy, Fuel Filter[08.1987 - 05.1995] 2L,3L..LY5#,6#..T1,T2,T3,T4 |
23301-54330 |
US $180.54 |
||
|
23301A
|
23301A
23301-54430 Cap Assy, Fuel Filter[08.1988 - 05.1995] 2L,3L..LY5#,61..T1,T2,T3,T4 ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ) |
23301-54430 |
US $180.54 |
||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[08.1987 - 05.1995] 2L,3L..LY5#,6# |
23303-64010 |
from US $54.42 |
||
| replacement | |||||
|
23303
|
23303
23303-64010-00
233036401000
[08.1987 - 05.1995] 2L,3L..LY5#,6# |
23303-64010-00 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[08.1987 - 05.1995] 2L,3L..LY5#,6# |
23322-64010 |
from US $7.94 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[08.1987 - 05.1995] 2L,3L..LY5#,6# |
23344-54010 |
from US $1.75 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[08.1987 - 05.1995] 2L,3L..LY5#,6# |
23344-64010 |
from US $1.54 |
||
|
23910B
|
23910B
23910-54050 Heater Assy, Fuel[09.1993 - 05.1995] 2L,3L..LY5#,61 |
23910-54050 |
US $172.80 |
||
|
23910B
|
23910B
23910-64010
Heater Assy, Fuel
[08.1988 - 09.1993] 3L..LY51,61; 2L..LY50 |
23910-64010 |
— | ||
|
23921
|
23921
23921-54310 Support, Fuel Filter[05.1988 - 05.1995] 2L,3L..LY5#,6#..T1,T2,T3,T4 |
23921-54310 |
US $84.45 |
||
|
2334754010
|
2334754010
23347-54010
Clip, Cord
|
23347-54010 |
— | ||
|
9017908009
|
9017908009
90179-08009 New Genuine Part |
90179-08009 |
US $3.52 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9056009012
|
9056009012
90560-09012 New Genuine Part |
90560-09012 |
US $4.08 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
