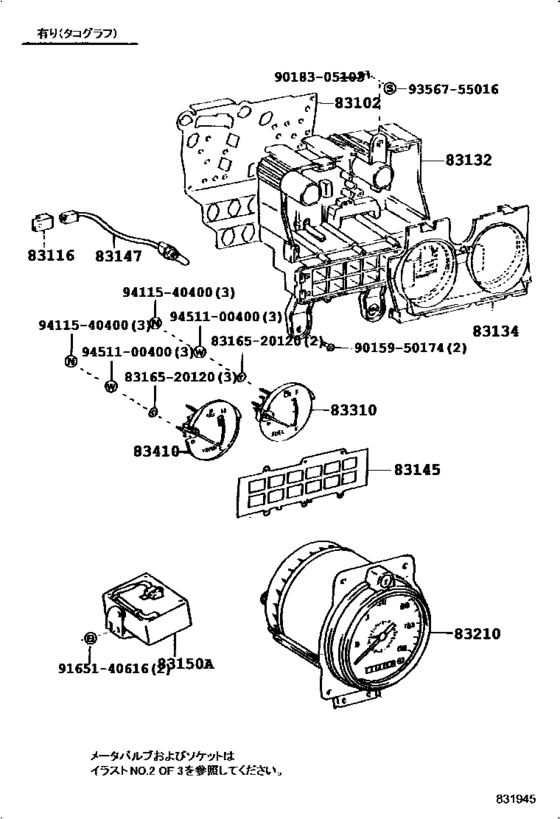

Meter ([08.1987 - ] ｱﾘ(ﾀｺｸﾞﾗﾌ) (8708- )) Diagram Toyota TOYOACE/ DYNA
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- LY61
- ENGINE
- 3L
- TRANSMISSION
- MTM
- Model
- DYNA
- From
- 08.1988
- To
- 05.1995
- Vehicle Model
- DYNA
- Deck,cab
- T4
- Loading Capacity
- 15T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83102
|
83102
83247-95080 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1987 - 05.1995] LY5#,6#,YY5#,61 ＮＯ．２ |
83247-95080 |
US $21.55 |
||
|
83102
|
83102
83247-95J33 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1987 - 05.1995] LY5#,6# ＮＯ．１ |
83247-95J33 |
US $138.32 |
||
|
83132
|
83132
83132-95J08 Case, Combination Meter[08.1987 - 05.1995] LY5#,6# |
83132-95J08 |
US $154.34 |
||
|
83134
|
83134
83134-95709 Cover, Combination Meter, No.1[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
83134-95709 |
US $40.91 |
||
|
83145
|
83145
83145-26700 Lens, Meter, No.1[09.1993 - 05.1995] LY5#,61 NO.1 |
83145-26700 |
US $7.43 |
||
|
83145
|
83145
83145-26720 Lens, Meter, No.1[09.1993 - 05.1995] LY51,61 NO.2; LY50 NO.2 |
83145-26720 |
US $7.43 |
||
|
83145
|
83145
83145-95014 Lens, Meter, No.1[08.1987 - 05.1995] LY5#,6#,YY5#,61 ＮＯ．６ |
83145-95014 |
US $4.08 |
||
|
83145
|
83145
83145-95J70 Lens, Meter, No.1[08.1987 - 05.1995] LY5#,6#,YY5#,61 ＮＯ．３ |
83145-95J70 |
US $8.59 |
||
|
83145
|
83145
83145-95J71 Lens, Meter, No.1[08.1987 - 05.1995] LY5#,6#,YY5#,61 ＮＯ．４ |
83145-95J71 |
US $6.99 |
||
|
83145
|
83145
83145-95J72 Lens, Meter, No.1[08.1987 - 09.1993] LY5#,6# ＮＯ．１ |
83145-95J72 |
US $6.99 |
||
|
83145
|
83145
83145-95J73 Lens, Meter, No.1[08.1987 - 10.1989] LY5#,6# ＮＯ．２ |
83145-95J73 |
US $10.92 |
||
|
83145
|
83145
83145-95J76 Lens, Meter, No.1[08.1987 - 05.1995] LY5#,6#,YY5#,61 ＮＯ．５ |
83145-95J76 |
US $10.77 |
||
|
83145
|
83145
83145-95K18 Lens, Meter, No.1[10.1989 - 09.1993] LY51,61 ＮＯ．２; LY50 ＮＯ．２ |
83145-95K18 |
US $7.43 |
||
|
83147
|
83147
83147-26040 Lamp, Meter No.1[09.1993 - 05.1995] LY5#,61,YY52,61 |
83147-26040 |
US $16.89 |
||
|
83310
|
83310
83243-95J30
Gage Assy, Fuel Receiver
[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
83243-95J30 |
— | ||
|
83410
|
83410
83244-95J00 Gage Assy, Water Temperature Receiver[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
83244-95J00 |
US $39.02 |
||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
9015950174
|
9015950174
90159-50174 New Genuine Part |
90159-50174 |
US $1.60 |
||
| replacement | |||||
|
9015950174
|
9015950174
93313-15016 New Genuine Part |
93313-15016 |
US $0.73 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
