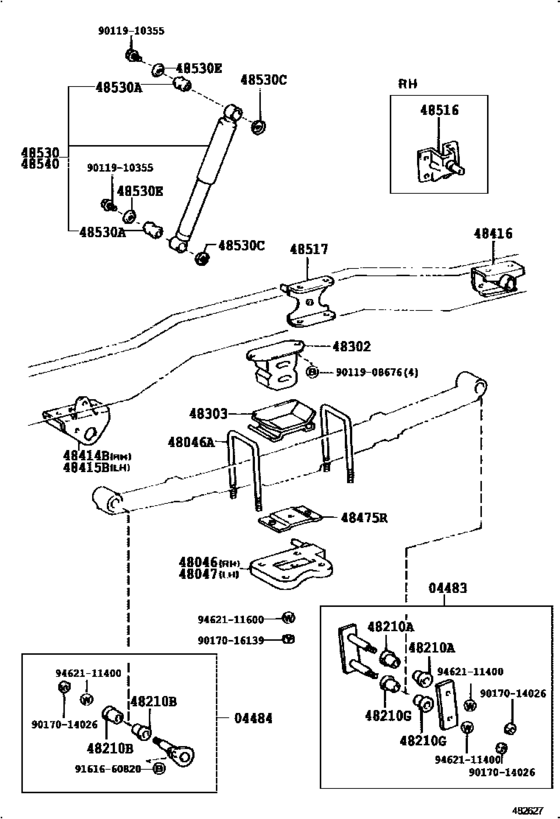

Rear Spring & Shock Absorber ([08.1987 - ] (8708- )WT2) Diagram Toyota TOYOACE/ DYNA
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- LY61
- ENGINE
- 3L
- TRANSMISSION
- MTM
- Model
- DYNA
- From
- 08.1988
- To
- 05.1995
- Vehicle Model
- DYNA
- Deck,cab
- T4
- Loading Capacity
- 15T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-25011
Shackle Kit, Rear Spring
[08.1987 - 05.1995] LY6#..TS;LY51,YY61;LY6#..T3..TB;LY50,YY5#..WT1;LY6#..TB..(WT1,WT2);LY50,YY5#..T1,T 3,TW |
04483-25011 |
— | ||
|
04484
|
04484
04482-25011
Pin Kit, Front Spring
[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
04482-25011 |
— | ||
| replacement | |||||
|
04484
|
04484
04482-25020
Pin Kit, Front Spring
[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
04482-25020 |
— | ||
|
48046
|
48046
48046-25070 Seat Sub-Assy, Spring U Bolt, Rh[08.1987 - 05.1995] LY6#,YY61..WT2 |
48046-25070 |
US $66.54 |
||
|
48046A
|
48046A
90117-16031 Bolt, U(For Rear Spring)[08.1987 - 05.1995] LY6#,YY61..WT2 長さ＝２００ |
90117-16031 |
US $20.82 |
||
|
48046A
|
48046A
90117-16062 Bolt, U(For Rear Spring)[08.1987 - 05.1995] LY6#,YY61..WT2 長さ＝１９０ |
90117-16062 |
US $54.75 |
||
|
48047
|
48047
48046-25070 Seat Sub-Assy, Spring U Bolt, Rh[08.1987 - 05.1995] LY6#,YY61..WT2 |
48046-25070 |
US $66.54 |
||
|
48210A
|
48210A
90385-18005 Bush(For Front Spring Shackle)[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
90385-18005 |
from US $3.61 |
||
|
48210B
|
48210B
90385-18005 Bush(For Front Spring Shackle)[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
90385-18005 |
from US $3.61 |
||
|
48210G
|
48210G
90385-18005 Bush(For Front Spring Shackle)[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
90385-18005 |
from US $3.61 |
||
|
48302
|
48302
48302-25051 Spring Sub-Assy, Hollow[08.1987 - 05.1995] LY6#..T2..ST;LY5#,YY5#..T2;LY6#,YY61..WT1,WT2 |
48302-25051 |
US $44.58 |
||
|
48303
|
48303
48303-25060 Seat Sub-Assy, Hollow Spring[08.1987 - 05.1995] LY6#,YY61..WT2 |
48303-25060 |
US $30.43 |
||
|
48414B
|
48414B
48414-25050 Bracket Sub-Assy, Rear Spring, Front Rh[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 |
48414-25050 |
US $33.49 |
||
|
48415B
|
48415B
48415-25020 Bracket Sub-Assy, Rear Spring, Front Lh[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 |
48415-25020 |
US $31.16 |
||
|
48416
|
48416
48416-25080 Bracket Sub-Assy, Rear Spring, Rear Rh[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 右側 |
48416-25080 |
US $29.99 |
||
| replacement | |||||
|
48416
|
48416
48405-25020 Bracket, Spring, No.4[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 右側 |
48405-25020 |
US $29.99 |
||
|
48416
|
48416
48417-25060 Bracket Sub-Assy, Rear Spring, Rear Lh[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 左側 |
48417-25060 |
US $29.99 |
||
| replacement | |||||
|
48416
|
48416
48406-25020 Bracket, Spring, No.4[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 左側 |
48406-25020 |
US $29.99 |
||
|
48475R
|
48475R
48475-36051 Plate, Distance(For Rear)[08.1987 - 05.1995] LY6#,YY61..WT2 |
48475-36051 |
US $20.27 |
||
|
48516
|
48516
48505-25041 Bracket, Rear Shock Absorber, Upper Rh[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 |
48505-25041 |
US $46.01 |
||
|
48517
|
48517
48506-25050 Bracket, Rear Shock Absorber, Upper Lh[08.1987 - 05.1995] LY6#,YY61..WT2 |
48506-25050 |
US $33.49 |
||
|
48530
|
48530
48531-80070 Absorber Assy, Shock, Rear Rh[08.1987 - 05.1995] LY6#,YY61..WT2 マーク ４８５３１−２５０９０ |
48531-80070 |
US $94.64 |
||
| replacement | |||||
|
48530
|
48530
48531-80759 Absorber Assy, Shock, Rear Rh[08.1987 - 05.1995] LY6#,YY61..WT2 マーク ４８５３１−２５０９０ |
48531-80759 |
US $94.64 |
||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 |
90385-16004 |
from US $3.32 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[08.1987 - 05.1995] LY5#,6#,YY5#,61 |
90948-03004 |
from US $1.42 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[08.1987 - 05.1995] LY5#,6#,YY5#,61..WT1,WT2 |
90948-03004 |
from US $1.42 |
||
|
48540
|
48540
48531-80070 Absorber Assy, Shock, Rear Rh[08.1987 - 05.1995] LY6#,YY61..WT2 マーク ４８５３１−２５０９０ |
48531-80070 |
US $94.64 |
||
| replacement | |||||
|
48540
|
48540
48531-80759 Absorber Assy, Shock, Rear Rh[08.1987 - 05.1995] LY6#,YY61..WT2 マーク ４８５３１−２５０９０ |
48531-80759 |
US $94.64 |
||
|
9011908676
|
9011908676
90119-08676 BOLT WWASHER |
90119-08676 |
US $1.92 |
||
|
9011910355
|
9011910355
90119-10355 Washer, Rear Shock Absorber Cushion, No.2 |
90119-10355 |
US $3.84 |
||
|
9017014026
|
9017014026
90170-14026 Nut(For Front Support To Front Shock Absorber Rh) |
90170-14026 |
from US $0.99 |
||
|
9017016139
|
9017016139
90170-16139 Nut(For Rear Spring U Bolt) |
90170-16139 |
US $4.80 |
||
|
9161660820
|
9161660820
91616-60820
Bolt(For Clutch Release Cylinder Setting)
|
91616-60820 |
— | ||
| replacement | |||||
|
9161660820
|
9161660820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
|
9462111600
|
9462111600
94621-11600 Washer(For Rear Spring U Bolt) |
94621-11600 |
US $5.12 |
||
