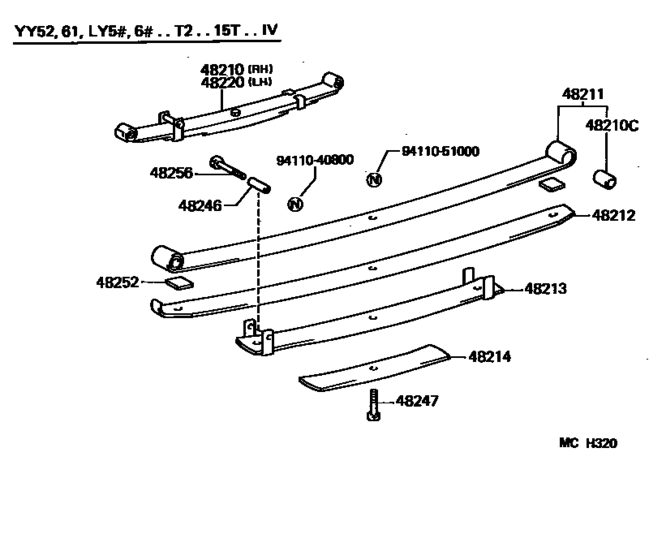

Rear Spring & Shock Absorber ([08.1987 - ] (8708- )) Diagram Toyota TOYOACE/ DYNA
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- LY61
- ENGINE
- 3L
- TRANSMISSION
- MTM
- Model
- DYNA
- From
- 08.1988
- To
- 05.1995
- Vehicle Model
- DYNA
- Deck,cab
- T4
- Loading Capacity
- 15T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-25640 Spring Assy, Rear Rh[08.1987 - 05.1995] LY6#,YY61..WT2 ４枚リーフ |
48210-25640 |
US $827.01 |
||
|
48210C
|
48210C
48299-25140
Bush(For Rear Spring Leaf)
[08.1987 - 05.1995] LY50,YY5#..TS;LY50,YY52..TB..WT1;LY51,6#,YY61..T2,T4,TW; LY51,6#..T3..IV TECS |
48299-25140 |
— | ||
|
48211
|
48211
48201-25630 Leaf, Rear Spring, No.1[08.1987 - 05.1995] LY6#,YY61..WT2 助手席側 |
48201-25630 |
US $263.54 |
||
|
48211
|
48211
48201-25640 Leaf, Rear Spring, No.1[08.1987 - 05.1995] LY6#,YY61..WT2 運転席側 |
48201-25640 |
US $263.54 |
||
|
48212
|
48212
48212-25630 Leaf, Rear Spring, No.2[08.1987 - 05.1995] LY6#,YY61..WT2 助手席側 |
48212-25630 |
US $123.76 |
||
|
48212
|
48212
48212-25640 Leaf, Rear Spring, No.2[08.1987 - 05.1995] LY6#,YY61..WT2 運転席側 |
48212-25640 |
US $199.47 |
||
|
48213
|
48213
48202-25630 Leaf, Rear Spring, No.3[08.1987 - 05.1995] LY6#,YY61..WT2 助手席側 |
48202-25630 |
US $120.85 |
||
|
48213
|
48213
48202-25640 Leaf, Rear Spring, No.3[08.1987 - 05.1995] LY6#,YY61..WT2 運転席側 |
48202-25640 |
US $192.19 |
||
|
48214
|
48214
48214-25630 Leaf, Rear Spring, No.4[08.1987 - 05.1995] LY6#,YY61..WT2 助手席側 |
48214-25630 |
US $113.57 |
||
|
48214
|
48214
48214-25640 Leaf, Rear Spring, No.4[08.1987 - 05.1995] LY6#,YY61..WT2 運転席側 |
48214-25640 |
US $182 |
||
|
48220
|
48220
48210-25630 Spring Assy, Rear Lh[08.1987 - 05.1995] LY6#,YY61..WT2 ４枚リーフ |
48210-25630 |
US $827.01 |
||
|
48247
|
48247
48247-36020 Bolt, Front Spring, Center[08.1987 - 05.1995] LY6#,YY61..WT2 |
48247-36020 |
US $4.37 |
||
|
48252
|
48252
48252-26070 Silencer, Front Spring[08.1987 - 05.1995] LY6#..T2..ST;LY5#,YY5#..T2;LY6#,YY61..WT1,WT2 |
48252-26070 |
from US $2.24 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
