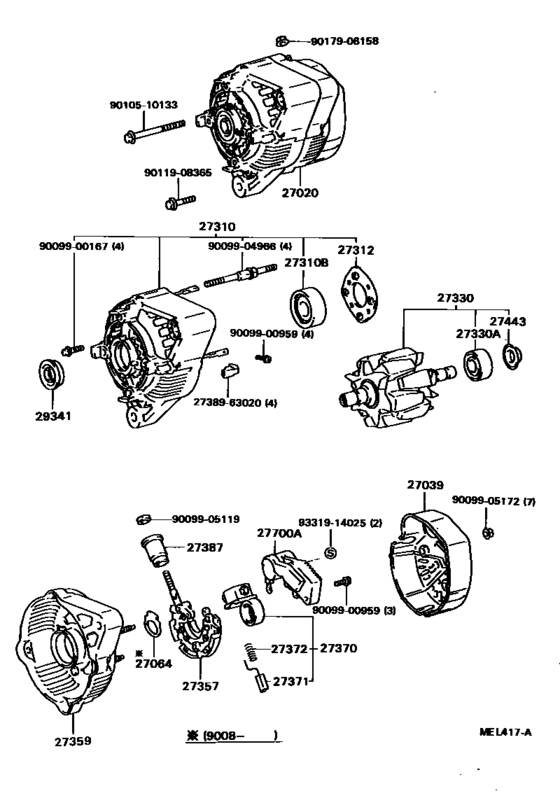

Alternator ([08.1988 - ] 12V 55A,70A (8808- )2C) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- CR27
- grade
- D
- body
- V
- Roof
- HRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V5D
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-64021
Alternator Assy
[08.1988 - 08.1990] 2C..CR27,36 １２Ｖ ５５Ａ |
27060-64021 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-64030
Alternator Assy
[08.1988 - 08.1990] 2C..CR27,36 １２Ｖ ５５Ａ |
27060-64030 |
— | ||
|
27020
|
27020
27060-64030
Alternator Assy
[08.1990 - 01.1992] 2C..CR27,36 １２Ｖ ５５Ａ |
27060-64030 |
— | ||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[08.1990 - 09.1991] 2C,2YU..CR27,36,YR20,28..4FC,5F |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[08.1990 - 09.1991] 2C,2YU..CR27,36,YR20,28..4FC,5F |
27039-15171 |
— | ||
|
27039
|
27039
27039-72110
Cover, Alternator Rear End
[08.1988 - 08.1990] 2YU..YR28..06S;2C,2YU..CR27,36,YR20..D,N |
27039-72110 |
— | ||
|
27310
|
27310
27310-64140
Frame Assy, Drive End, Alternator
[08.1988 - 08.1990] 2C..CR27,36 |
27310-64140 |
— | ||
|
27310
|
27310
27310-64230
Frame Assy, Drive End, Alternator
[08.1990 - 01.1992] 2C..CR27,36 |
27310-64230 |
— | ||
|
27310B
|
27310B
90099-10165 Bearing(For Alternator Drive End Frame)[08.1988 - 01.1992] 2C#..CR2#,3# |
90099-10165 |
from US $8.74 |
||
|
27312
|
27312
27312-64130
Plate, Bearing Retainer, Alternator
[08.1988 - 01.1992] 2C#..CR2#,3# |
27312-64130 |
— | ||
|
27330
|
27330
27330-64130 Rotor Assy, Alternator[08.1990 - 01.1992] 2C..CR27,36 |
27330-64130 |
US $265.61 |
||
|
27330
|
27330
27330-64140 Rotor Assy, Alternator[08.1988 - 08.1990] 2C..CR27,36 |
27330-64140 |
US $182.93 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1988 - 01.1992] 2C#,2YU,3YEU..CR2#,3#,YR20,21,28,3# |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63040
Holder, Alternator, W/rectifier
[08.1988 - 08.1990] 2YU..YR28..06S;2C,2YU..CR27,36,YR20..D,N |
27357-63040 |
— | ||
|
27357
|
27357
27357-63060
Holder, Alternator, W/rectifier
[08.1990 - 01.1992] 2C..CR27,36 |
27357-63060 |
— | ||
|
27359
|
27359
27359-64130
Frame, Alternator Rectifier End
[08.1990 - 01.1992] 2C..CR27,36 |
27359-64130 |
— | ||
|
27359
|
27359
27359-64140
Frame, Alternator Rectifier End
[08.1988 - 08.1990] 2C..CR27,36 |
27359-64140 |
— | ||
|
27370
|
27370
27370-16011
Holder Assy, Alternator Brush
[08.1988 - 08.1989] 2CT..CR30..5F;2C#..CR2#,36,37 |
27370-16011 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[08.1988 - 08.1989] 2CT..CR30..5F;2C#..CR2#,36,37 |
27370-58320 |
from US $15.25 |
||
|
27370
|
27370
27370-54450
Holder Assy, Alternator Brush
[08.1989 - 08.1990] 2CT..CR30..5F;2C#..CR2#,36,37 |
27370-54450 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[08.1989 - 08.1990] 2CT..CR30..5F;2C#..CR2#,36,37 |
27370-58320 |
from US $15.25 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[08.1988 - 08.1989] 2CT..CR30..5F;2C#,2Y#..CR2#,36,37,YR20,25,28 |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1988 - 08.1989] 2CT..CR30..5F;2C#,2Y#..CR2#,36,37,YR20,25,28 |
27371-70300 |
from US $2.97 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1989 - 08.1990] 2CT..CR30..5F;2C#..CR2#,36,37 |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[08.1988 - 08.1990] 2CT..CR30..5F;2C#,2Y#..CR2#,36,37,YR20,25,28 |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1988 - 08.1990] 2CT..CR30..5F;2C#,2Y#..CR2#,36,37,YR20,25,28 |
27372-87501 |
— | ||
|
27387
|
27387
27387-70170
Insulator, Terminal
[08.1988 - 08.1990] 2CT..CR30..5F;2C#,2YU..CR2#,36,37,YR20,28 |
27387-70170 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1988 - 01.1992] 2C#,2Y#,3YEU..CR2#,3#,YR2#,3# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-11030 Regulator Assy, Generator[08.1990 - 01.1992] 2C..CR27,36 |
27700-11030 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-72090
Regulator Assy, Generator
[08.1990 - 01.1992] 2C..CR27,36 |
27700-72090 |
— | ||
|
27700A
|
27700A
27700-63021 Regulator Assy, Generator[08.1988 - 12.1988] 2YU..YR28..06S;2C,2YU..CR27,36,YR20..D,N |
27700-63021 |
US $285.38 |
||
| replacement | |||||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[08.1988 - 12.1988] 2YU..YR28..06S;2C,2YU..CR27,36,YR20..D,N |
27700-70030 |
US $263.54 |
||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[02.1989 - 08.1990] 2C,2YU,3YEU..CR27,36,YR20,21,28,3# |
27700-70030 |
US $263.54 |
||
|
29341
|
29341
29341-64130 Seal, Alternator Oil[08.1988 - 01.1992] 2C#..CR2#,3# |
29341-64130 |
from US $5.24 |
||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900167
|
9009900167
90099-00167
New Genuine Part
|
90099-00167 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010510133
|
9010510133
90105-10133 Bolt(For Alternator) |
90105-10133 |
US $5.53 |
||
|
9011908365
|
9011908365
90119-08365 New Genuine Part |
90119-08365 |
US $3.20 |
||
| replacement | |||||
|
9011908365
|
9011908365
90119-08325 New Genuine Part |
90119-08325 |
US $2.48 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
