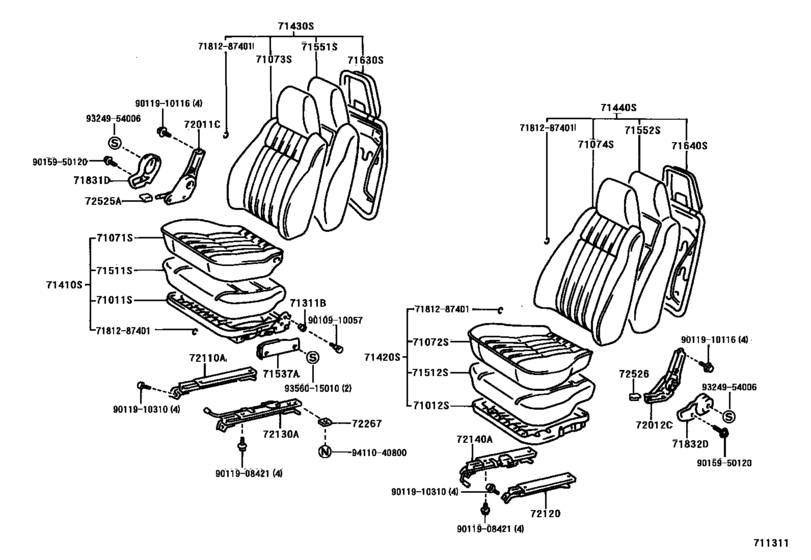

Seat & Seat Track ([08.1988 - ] (8808- )4FC,5F..B,D,F,G,N) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- CR27
- grade
- N
- body
- V
- Roof
- HRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V5D
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-87018 Frame Sub-Assy, Front Seat Cushion, Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
71011-87018 |
US $208.21 |
||
|
71012S
|
71012S
71012-87011 Frame Sub-Assy, Front Seat Cushion, Lh[08.1988 - 01.1992] CR2#,3#,YR2#,3#..4FC,5F |
71012-87011 |
US $206.75 |
||
|
71071S
|
71071S
71071-87071-03 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1988 - 01.1992] CR27,36,YR25..N SHADOW GRAY,TRIM1# |
71071-87071-03 |
US $165.98 |
||
|
71072S
|
71072S
71072-87076-03 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1988 - 01.1992] CR27,36,YR25..N SHADOW GRAY,TRIM1# |
71072-87076-03 |
US $165.98 |
||
|
71073S
|
71073S
71073-87G13-03 Cover, Front Seat Back, Rh(For Separate Type)[08.1988 - 01.1992] CR27,36,YR25..N SHADOW GRAY,TRIM1# |
71073-87G13-03 |
US $264.99 |
||
|
71074S
|
71074S
71074-87069-03 Cover, Front Seat Back, Lh(For Separate Type)[08.1988 - 01.1992] CR27,36,YR25..N SHADOW GRAY,TRIM1# |
71074-87069-03 |
US $264.99 |
||
|
71311B
|
71311B
90386-12018 Bush (For Front Seat Hinge Pin)[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
90386-12018 |
US $2.61 |
||
|
71410S
|
71410S
71410-87G05-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.1988 - 01.1992] CR27,36,YR25..N ***,SHADOW GRAY,TRIM1# |
71410-87G05-03 |
— | ||
|
71420S
|
71420S
71420-87076-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1988 - 01.1992] CR27,36,YR25..N ***,SHADOW GRAY,TRIM1# |
71420-87076-03 |
— | ||
|
71430S
|
71430S
71430-87G20-03
Back Assy, Front Seat, Rh(For Separate Type)
[08.1988 - 01.1992] CR27,36,YR25..N ***,SHADOW GRAY,TRIM1# |
71430-87G20-03 |
— | ||
|
71440S
|
71440S
71440-87G14-03
Back Assy, Front Seat, Lh(For Separate Type)
[08.1988 - 01.1992] CR27,36,YR25..N ***,SHADOW GRAY,TRIM1# |
71440-87G14-03 |
— | ||
|
71511S
|
71511S
71511-87006 Pad, Front Seat Cushion, Rh(For Separate Type)[08.1988 - 01.1992] CR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N |
71511-87006 |
US $187.82 |
||
|
71512S
|
71512S
71512-87011 Pad, Front Seat Cushion, Lh (For Separate Type)[08.1988 - 01.1992] CR2#,3#,YR20,25,28,36..(4FC,5F)..(B,D,F,G,N) |
71512-87011 |
US $187.82 |
||
|
71537A
|
71537A
71537-87001-03 Protector, Front Seat Cushion[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# SHADOW GRAY,TRIM1# |
71537-87001-03 |
US $29.27 |
||
| replacement | |||||
|
71537A
|
71537A
71537-87001-B0 Protector, Front Seat Cushion[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# SHADOW GRAY,TRIM1# |
71537-87001-B0 |
US $29.27 |
||
|
71551S
|
71551S
71551-87014 Pad, Front Seat Back, Rh(For Separate Type)[08.1988 - 01.1992] CR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N |
71551-87014 |
US $107.74 |
||
|
71552S
|
71552S
71552-87015 Pad, Front Seat Back, Lh(For Separate Type)[08.1988 - 01.1992] YR28;CR2#,36,37,YR20,25,36..(05S,08S,09S)..(B,D,F,N) |
71552-87015 |
US $107.74 |
||
|
71630S
|
71630S
71630-87001 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.1988 - 01.1992] CR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N |
71630-87001 |
US $216.94 |
||
|
71640S
|
71640S
71640-87001 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.1988 - 01.1992] YR28;CR2#,36,37,YR20,25,36..(05S,08S,09S)..(B,D,F,N) |
71640-87001 |
US $216.94 |
||
|
71831D
|
71831D
71831-87001-03 Cover, Front Seat Hinge, Rh[08.1988 - 01.1992] CR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N SHADOW GRAY,TRIM1# |
71831-87001-03 |
US $31.16 |
||
|
71832D
|
71832D
71832-87001-03 Cover, Front Seat Hinge, Lh[08.1988 - 01.1992] YR28;CR2#,36,37,YR20,25,36..(02S,05S,08S,09S)..(B,D,F,N) SHADOW GRAY,TRIM1# |
71832-87001-03 |
US $31.16 |
||
|
72011C
|
72011C
72010-87005-03 Adjuster Sub-Assy, Front Seat, Rh[08.1988 - 01.1992] CR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N SHADOW GRAY,TRIM1# |
72010-87005-03 |
US $180.54 |
||
|
72012C
|
72012C
72020-87008-03 Adjuster Sub-Assy, Front Seat, Lh[08.1988 - 01.1992] YR28;CR27,28,36,37,YR25,36..02S,05S SHADOW GRAY,TRIM1# |
72020-87008-03 |
US $180.54 |
||
|
72110A
|
72110A
72110-87004 Track Assy, Front Seat, Outer Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
72110-87004 |
US $94.64 |
||
|
72120
|
72120
72120-28010 Track Assy, Front Seat, Outer Lh[08.1988 - 01.1992] CR21,27,30,36,YR20,21,25,30..E,G,N,Q |
72120-28010 |
US $94.64 |
||
|
72130A
|
72130A
72130-87003 Track Assy, Rh Seat, Inner[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
72130-87003 |
US $147.06 |
||
|
72130A
|
72130A
72130-87004 Track Assy, Rh Seat, Inner[08.1988 - 01.1992] CR27..V5D..N;CR27..V5D..SRF;CR27..V5D..4FC..D ｶﾝﾚｲﾁ ｼﾖｳ |
72130-87004 |
US $147.06 |
||
|
72140A
|
72140A
72140-87001 Track Assy, Lh Seat, Inner[08.1988 - 01.1992] CR21,27,30,36,YR20,21,25,30..E,G,N,Q |
72140-87001 |
US $147.06 |
||
|
72267
|
72267
72267-87002 Plate, Seat Track Stop[08.1988 - 01.1992] CR27,36..V5D |
72267-87002 |
US $6.26 |
||
|
7181287401
|
7181287401
71812-87401 Clip (For Front Seat Cushion Cover) |
71812-87401 |
US $3.06 |
||
|
9010910057
|
9010910057
90109-10057 New Genuine Part |
90109-10057 |
US $4.66 |
||
|
9011908421
|
9011908421
90119-08421 New Genuine Part |
90119-08421 |
US $1.31 |
||
|
9011910116
|
9011910116
90119-10116
New Genuine Part
|
90119-10116 |
— | ||
| replacement | |||||
|
9011910116
|
9011910116
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9011910310
|
9011910310
90119-10310
New Genuine Part
|
90119-10310 |
— | ||
|
9015950120
|
9015950120
90159-50120 New Genuine Part |
90159-50120 |
US $1.60 |
||
|
9324954006
|
9324954006
93249-54006 Screw |
93249-54006 |
US $0.96 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $0.83 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.78 |
||
