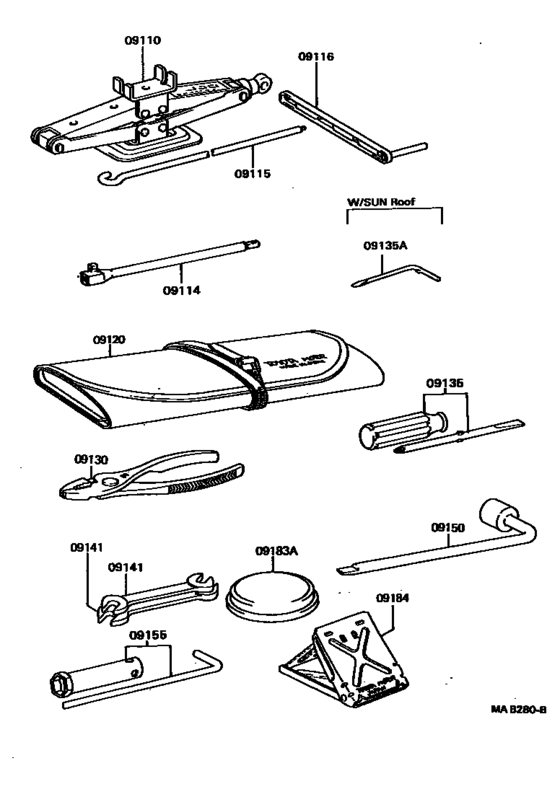

Standard Tool ([08.1988 - ] (8808- )) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- CR27
- grade
- D
- body
- V
- Roof
- HRF
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1990
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- V5D
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09110-28070
Jack Assy
[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
09110-28070 |
— | ||
|
09114
|
09114
09114-60050
Extension Sub-Assy, Jack Handle
[04.1989 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
09114-60050 |
— | ||
| replacement | |||||
|
09114
|
09114
09114-28010 Extension Sub-Assy, Jack Handle[04.1989 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
09114-28010 |
US $8.06 |
||
|
09115
|
09115
09115-28030 Rod Sub-Assy, Jack Handle[04.1989 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
09115-28030 |
US $10.75 |
||
|
09116
|
09116
09116-35041 Lever, Jack Handle[10.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
09116-35041 |
from US $8.39 |
||
|
09120
|
09120
09120-26021
Bag, Tool
[08.1988 - 01.1992] CR2#,KR2#,YR2# |
09120-26021 |
— | ||
| replacement | |||||
|
09120
|
09120
09120-35170 Bag, Tool (Black)[08.1988 - 01.1992] CR2#,KR2#,YR2# |
09120-35170 |
US $14.69 |
||
|
09130
|
09130
99913-11500 Pliers (China)No Toyota stamp [08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
99913-11500 |
from US $7.17 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
99915-10700 |
from US $8.24 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
90089-99009 |
from US $2.34 |
||
|
09141
|
09141
99914-10810 Spanner (China)No Toyota stamp [08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# ８ Ｘ １０ |
99914-10810 |
from US $4.30 |
||
| replacement | |||||
|
09141
|
09141
09141-0K030 Spanner (ATC) (Thailand)8x10 [08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# ８ Ｘ １０ |
09141-0K030 |
from US $6.99 |
||
|
09141
|
09141
99914-11214 Spanner (China)No Toyota stamp [08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# １２ Ｘ １４ |
99914-11214 |
from US $6.45 |
||
| replacement | |||||
|
09141
|
09141
09141-0K040 Spanner (Thailand)[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# １２ Ｘ １４ |
09141-0K040 |
from US $10.48 |
||
|
09150
|
09150
09150-35020
Wrench, Hub Nut Box
[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
09150-35020 |
— | ||
| replacement | |||||
|
09150
|
09150
09150-40010 Wrench, Hub Nut Box[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
09150-40010 |
from US $19.32 |
||
|
09184
|
09184
09184-00010 Stopper, Wheel[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
09184-00010 |
US $13.80 |
||
