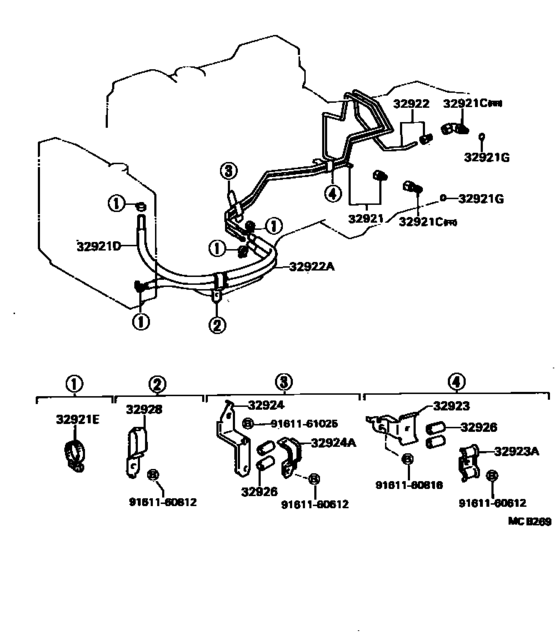

Oil Cooler & Tube (Atm) ([08.1984 - 08.1985] (8408-8508)CR21,27..4FC) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- CR27
- grade
- N
- body
- V
- Roof
- SRF
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- TOWN ACE/MASTER ACE
- From
- 09.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-28030
Tube, Oil Cooler Inlet, No.1
[08.1984 - 08.1985] CR21,27..4FC |
32921-28030 |
— | ||
|
32921
|
32921
32921-28031 Tube, Oil Cooler Inlet, No.1[08.1985 - 08.1988] CR21,27,28..4FC |
32921-28031 |
US $27.08 |
||
|
32921C
|
32921C
90404-16021 Union(For Oil Cooler Tube)[08.1984 - 08.1985] CR21,27..4FC FR |
90404-16021 |
US $7.34 |
||
|
32921C
|
32921C
90407-16010 Union(For Oil Cooler Tube)[08.1984 - 08.1985] CR21,27..4FC RR |
90407-16010 |
US $9.50 |
||
|
32921D
|
32921D
32941-28041 Hose(For Oil Cooler Inlet)[08.1984 - 03.1987] CR21,27,28..4FC |
32941-28041 |
US $77.17 |
||
|
32921D
|
32921D
32941-28100 Hose(For Oil Cooler Inlet)[03.1987 - 08.1988] CR21,27,28..4FC |
32941-28100 |
US $55.18 |
||
| replacement | |||||
|
32921D
|
32921D
32941-28101 Hose(For Oil Cooler Inlet)[03.1987 - 08.1988] CR21,27,28..4FC |
32941-28101 |
US $55.04 |
||
|
32921E
|
32921E
90460-18002 Clamp, Hose(For Oil Cooler)[08.1984 - 08.1985] CR21,27..4FC |
90460-18002 |
US $4.22 |
||
|
32921E
|
32921E
90467-13039
Clamp, Hose
[03.1987 - 08.1988] YR20..MRF..4FC;YR20..HRF..4FC..E;CR21,27,28,30,YR21,26,28,3#..4FC |
90467-13039 |
— | ||
| replacement | |||||
|
32921E
|
32921E
96135-51300 Clamp, Hose[03.1987 - 08.1988] YR20..MRF..4FC;YR20..HRF..4FC..E;CR21,27,28,30,YR21,26,28,3#..4FC |
96135-51300 |
from US $2.13 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[11.1982 - 08.1988] CR21,27,28,30,YR2#,3#..4FC |
90301-10189 |
from US $2.63 |
||
|
32922
|
32922
32922-28030
Tube, Oil Cooler Outlet, No.1
[08.1984 - 08.1985] CR21,27..4FC |
32922-28030 |
— | ||
|
32922
|
32922
32922-28031 Tube, Oil Cooler Outlet, No.1[08.1985 - 08.1988] CR21,27,28..4FC |
32922-28031 |
US $25.19 |
||
|
32922A
|
32922A
32942-28041 Hose(For Oil Cooler Outlet)[08.1984 - 03.1987] CR21,27,28..4FC |
32942-28041 |
US $59.70 |
||
|
32922A
|
32922A
32942-28110 Hose(For Oil Cooler Outlet)[03.1987 - 08.1988] CR21,27,28..4FC |
32942-28110 |
US $44.55 |
||
| replacement | |||||
|
32922A
|
32922A
32942-28111 Hose(For Oil Cooler Outlet)[03.1987 - 08.1988] CR21,27,28..4FC |
32942-28111 |
US $44.41 |
||
|
32923
|
32923
32923-28040 Clamp, Automatic Transmission Oil Cooler Tube[08.1984 - 08.1988] CR21,27,28,30..4FC |
32923-28040 |
US $10.77 |
||
|
32923A
|
32923A
90462-12044 Clamp, Automatic Transmission Oil Cooler Tube[08.1984 - 08.1988] CR21,27,28,30..4FC |
90462-12044 |
US $2.91 |
||
|
32924
|
32924
32924-27010 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.1985 - 08.1988] CR21,27,28,30..4FC |
32924-27010 |
US $9.90 |
||
|
32924
|
32924
32924-28030
Clamp, Oil Cooler Tube, No.2
[08.1984 - 08.1985] CR21,27..4FC |
32924-28030 |
— | ||
|
32924A
|
32924A
32929-28010 Clamp, Automatic Transmission Oil Cooler Tube[08.1985 - 08.1988] CR21,27,28,30..4FC |
32929-28010 |
US $5.97 |
||
|
32924A
|
32924A
32929-30110 Clamp, Automatic Transmission Oil Cooler Tube[08.1984 - 08.1985] CR21,27..4FC |
32929-30110 |
US $5.53 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1984 - 08.1985] CR21,27..4FC 長さ＝３５，内径＝１０ |
32926-30020 |
US $3.05 |
||
|
32928
|
32928
90949-01204 Clamp, Flexible Hose, No.1[08.1984 - 08.1988] CR21,27,28..4FC |
90949-01204 |
US $4.51 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
