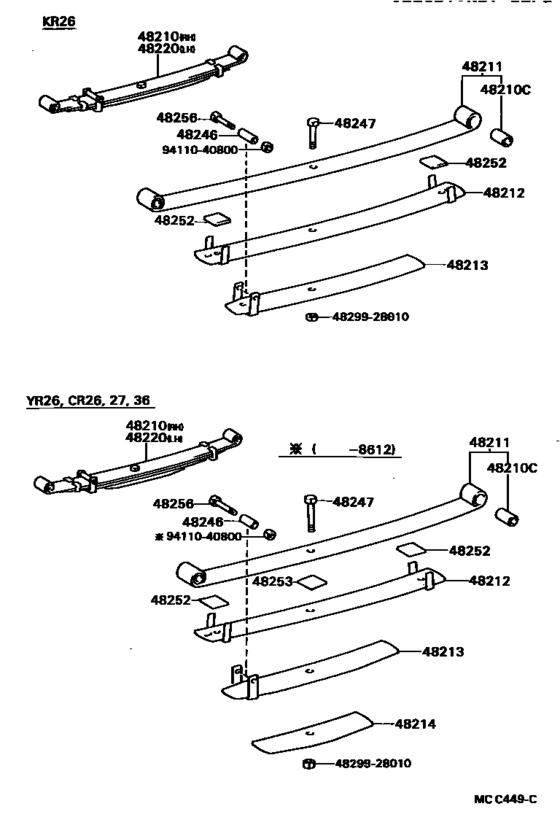

Rear Spring & Shock Absorber ([08.1985 - ] (8508- )CR26,27,36,KR26,YR26) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- CR27
- grade
- N
- body
- V
- Roof
- SRF
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- TOWN ACE/MASTER ACE
- From
- 09.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-28100 Spring Assy, Rear Rh[11.1982 - 08.1985] CR26,27,YR26 |
48210-28100 |
US $492.13 |
||
|
48210
|
48210
48210-28110 Spring Assy, Rear Rh[08.1985 - 08.1988] CR26,27,YR26 |
48210-28110 |
US $540.18 |
||
|
48210C
|
48210C
90389-14004 Bush(For Rear Spring Leaf)[11.1982 - 05.1987] CR26,27,28,36,KR26,YR26,28,36 |
90389-14004 |
from US $15.88 |
||
|
48211
|
48211
48201-28070 Leaf, Rear Spring, No.1[11.1982 - 08.1985] CR26,27,KR26,YR26 |
48201-28070 |
US $238.78 |
||
| replacement | |||||
|
48211
|
48211
48201-28130 Leaf, Rear Spring, No.1[11.1982 - 08.1985] CR26,27,KR26,YR26 |
48201-28130 |
US $202.38 |
||
|
48211
|
48211
48201-28110 Leaf, Rear Spring, No.1[08.1985 - 08.1988] CR26,27,YR26 |
48201-28110 |
US $202.38 |
||
| replacement | |||||
|
48211
|
48211
48201-28150 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1985 - 08.1988] CR26,27,YR26 |
48201-28150 |
US $206.75 |
||
|
48212
|
48212
48202-28100 Leaf, Rear Spring, No.2[11.1982 - 08.1985] CR26,27,YR26 |
48202-28100 |
US $128.13 |
||
|
48212
|
48212
48202-28110 Leaf, Rear Spring, No.2[08.1985 - 08.1988] CR26,27,YR26 |
48202-28110 |
US $160.16 |
||
|
48213
|
48213
48203-28100 Leaf, Rear Spring, No.3[11.1982 - 08.1985] CR26,27,YR26 RH |
48203-28100 |
US $103.38 |
||
| replacement | |||||
|
48213
|
48213
48204-28100 Leaf, Rear Spring, No.3[11.1982 - 08.1985] CR26,27,YR26 RH |
48204-28100 |
US $104.83 |
||
|
48213
|
48213
48203-28110 Leaf, Rear Spring, No.3[08.1985 - 08.1988] CR26,27,YR26 RH |
48203-28110 |
US $131.04 |
||
| replacement | |||||
|
48213
|
48213
48204-28110 Leaf, Rear Spring, No.3[08.1985 - 08.1988] CR26,27,YR26 RH |
48204-28110 |
US $132.50 |
||
|
48213
|
48213
48204-28100 Leaf, Rear Spring, No.3[11.1982 - 08.1985] CR26,27,YR26 LH |
48204-28100 |
US $104.83 |
||
|
48213
|
48213
48204-28110 Leaf, Rear Spring, No.3[08.1985 - 08.1988] CR26,27,YR26 LH |
48204-28110 |
US $132.50 |
||
|
48214
|
48214
48214-28100 Leaf, Rear Spring, No.4[11.1982 - 08.1985] CR26,27,YR26 |
48214-28100 |
US $49.21 |
||
| replacement | |||||
|
48214
|
48214
48214-28110 Leaf, Rear Spring, No.4[11.1982 - 08.1985] CR26,27,YR26 |
48214-28110 |
US $52.71 |
||
|
48214
|
48214
48214-28110 Leaf, Rear Spring, No.4[08.1985 - 08.1988] CR26,27,YR26 |
48214-28110 |
US $52.71 |
||
|
48220
|
48220
48220-28060
Spring Assy, Rear Lh
[11.1982 - 08.1985] CR26,27,YR26 |
48220-28060 |
— | ||
|
48220
|
48220
48220-28070 Spring Assy, Rear Lh[08.1985 - 08.1988] CR26,27,YR26 |
48220-28070 |
US $540.18 |
||
|
48246
|
48246
48246-26060 Case, Rear Spring Clip Bolt[11.1982 - 12.1986] CR26,27,36,KR26,YR26 |
48246-26060 |
US $2.62 |
||
|
48247
|
48247
48247-28020 Bolt, Rear Spring, Center[11.1982 - 08.1988] CR26,27,YR26 |
48247-28020 |
US $3.49 |
||
|
48252
|
48252
48252-26070 Silencer, Front Spring[11.1982 - 08.1988] CR26,27,28,36,37,KR26,YR26,28,36 |
48252-26070 |
from US $2.13 |
||
|
48256
|
48256
48256-26010 Bolt, Hexagon(For Rear Spring Clip Set)[11.1982 - 12.1986] CR26,27,36,KR26,YR26 |
48256-26010 |
US $2.04 |
||
|
4829928010
|
4829928010
48299-28010 Nut, Rear Spring Center Bolt |
48299-28010 |
US $3.35 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
