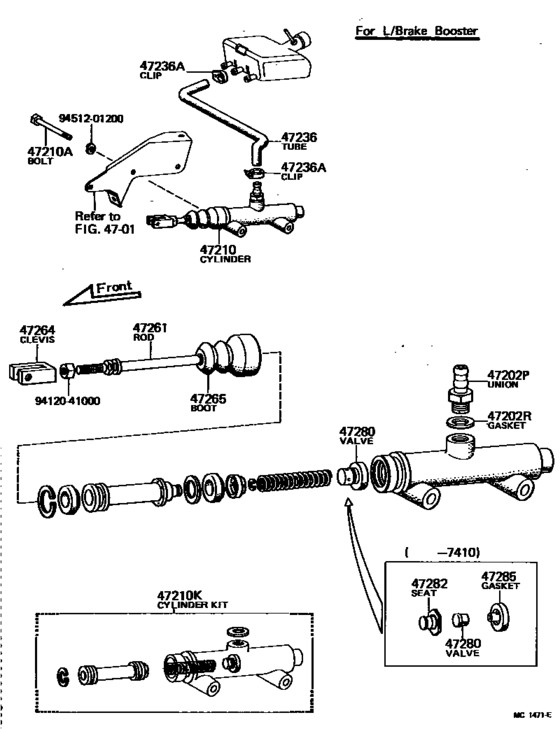

Brake Master Cylinder ([09.1971 - 02.1979] (7109-7902)RY10,12) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47202P
|
47202P
90404-16233
Union, Reservoir(For Brake Master Cylinder Side)
[09.1971 - 02.1979] JY16,RY1# |
90404-16233 |
— | ||
|
47202R
|
47202R
90430-16044
Gasket(For Water By-Pass Hose)
[09.1971 - 01.1978] JY16,RY1# |
90430-16044 |
— | ||
|
47210
|
47210
47201-25010
Cylinder Assy, Master, W/o Booster
[09.1971 - 11.1972] RY10,12 FOR W/BOOSTER |
47201-25010 |
— | ||
| replacement | |||||
|
47210
|
47210
47201-25011
Cylinder Assy, Master, W/o Booster
[09.1971 - 11.1972] RY10,12 FOR W/BOOSTER |
47201-25011 |
— | ||
|
47210
|
47210
47201-25011
Cylinder Assy, Master, W/o Booster
[11.1972 - 02.1973] RY10,12 FOR W/BOOSTER |
47201-25011 |
— | ||
|
47210
|
47210
47201-25012
Cylinder Assy, Master, W/o Booster
[02.1973 - 02.1979] RY10,12 FOR W/BOOSTER |
47201-25012 |
— | ||
|
47210
|
47210
47210-25010
Cylinder Assy, Master, W/o Booster
[09.1971 - 11.1972] RY10,12 FOR L/BOOSTER |
47210-25010 |
— | ||
| replacement | |||||
|
47210
|
47210
47210-25011
Cylinder Assy, Master, W/o Booster
[09.1971 - 11.1972] RY10,12 FOR L/BOOSTER |
47210-25011 |
— | ||
|
47210
|
47210
47210-25011
Cylinder Assy, Master, W/o Booster
[11.1972 - 02.1979] RY10,12 FOR L/BOOSTER |
47210-25011 |
— | ||
|
47210A
|
47210A
91171-41270
Bolt Or Stud Bolt(For Brake Master Cylinder Setting)
[06.1975 - 02.1979] RY10,12 FOR L/BOOSTER |
91171-41270 |
— | ||
|
47210A
|
47210A
91171-41271 Bolt Or Stud Bolt(For Brake Master Cylinder Setting)[09.1971 - 06.1975] RY10,12 FOR L/BOOSTER |
91171-41271 |
US $2.04 |
||
| replacement | |||||
|
47210A
|
47210A
91171-41270
Bolt Or Stud Bolt(For Brake Master Cylinder Setting)
[09.1971 - 06.1975] RY10,12 FOR L/BOOSTER |
91171-41270 |
— | ||
|
47210K
|
47210K
04471-25021
Cylinder Kit, Brake Master
[09.1971 - 02.1979] RY10,12 FOR L/BOOSTER |
04471-25021 |
— | ||
|
47210K
|
47210K
04471-25031
Cylinder Kit, Brake Master
[09.1971 - 02.1979] RY10,12 FOR W/BOOSTER |
04471-25031 |
— | ||
|
47236
|
47236
47236-25030
Tube, Reservoir Brake
[09.1971 - 02.1979] RY10,12..RHD |
47236-25030 |
— | ||
|
47236
|
47236
47236-25040
Tube, Reservoir Brake
[09.1971 - 02.1979] RY10,12..RHD FOR W/BOOSTER |
47236-25040 |
— | ||
|
47236A
|
47236A
90460-16069
Clip(For Reservoir Tube)
[09.1971 - 11.1973] JY16,RY1# |
90460-16069 |
— | ||
|
47236A
|
47236A
90460-19082 Clip(For Reservoir Tube)[11.1973 - 02.1979] JY16,RY1# |
90460-19082 |
US $4.22 |
||
|
47261
|
47261
47261-35020
Rod, Master Cylinder Push
[09.1971 - 02.1979] RY10,12 |
47261-35020 |
— | ||
|
47264
|
47264
31453-30011
Clevis, Clutch Master Cylinder Push Rod
[09.1971 - 02.1979] JY16,RY1# |
31453-30011 |
— | ||
|
47265
|
47265
47265-35011
Boot, Master Cylinder
[09.1971 - 02.1979] RY10,12 |
47265-35011 |
— | ||
|
47280
|
47280
47280-25010
Valve Assy, Brake Master Cylinder Outlet Check
[10.1974 - 02.1979] RY10,12 |
47280-25010 |
— | ||
|
47280
|
47280
47281-55010
Valve Assy, Brake Master Cylinder Outlet Check
[09.1971 - 10.1974] RY10,12 |
47281-55010 |
— | ||
| replacement | |||||
|
47280
|
47280
47280-25010
Valve Assy, Brake Master Cylinder Outlet Check
[09.1971 - 10.1974] RY10,12 |
47280-25010 |
— | ||
|
47282
|
47282
47282-55010
Seat, Outlet Check Valve Seat
[09.1971 - 10.1974] RY10,12 |
47282-55010 |
— | ||
| replacement | |||||
|
47282
|
47282
47280-25010
Valve Assy, Brake Master Cylinder Outlet Check
[09.1971 - 10.1974] RY10,12 |
47280-25010 |
— | ||
|
47285
|
47285
47285-35011
Gasket, Outlet Check Valve Seat
[09.1971 - 10.1974] RY10,12 |
47285-35011 |
— | ||
| replacement | |||||
|
47285
|
47285
47280-25010
Valve Assy, Brake Master Cylinder Outlet Check
[09.1971 - 10.1974] RY10,12 |
47280-25010 |
— | ||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
