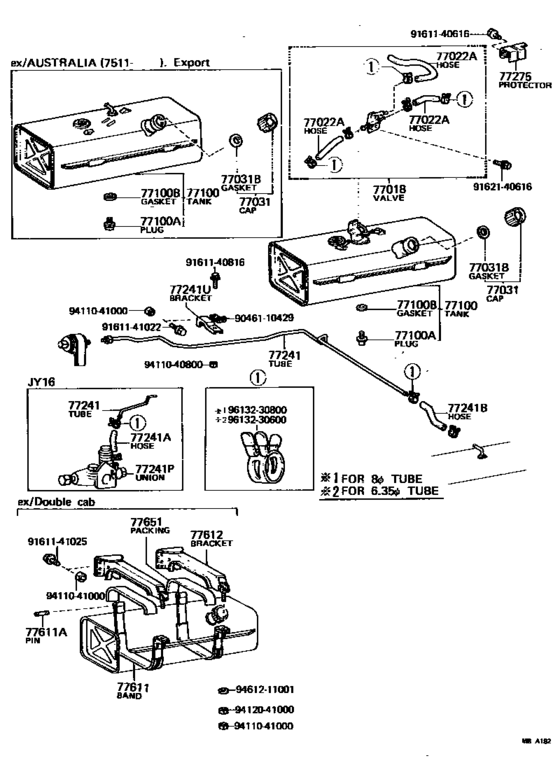

Fuel Tank & Tube ([04.1973 - 02.1979] (7304-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77031
|
77031
77031-14010 Cap Assy, Fuel TankFUEL TANK [10.1972 - 02.1979] RY1# W/KEY |
77031-14010 |
US $61.01 |
||
|
77031
|
77031
77310-14010 Cap Assy, Fuel TankFUEL TANK [04.1973 - 11.1976] RY1# |
77310-14010 |
US $19.36 |
||
|
77031
|
77031
77310-35010 Cap Assy, Fuel TankFUEL TANK [09.1971 - 04.1973] RY10,12 |
77310-35010 |
US $20.44 |
||
|
77031B
|
77031B
77316-20010
Gasket (For Fuel Tank Cap)
[04.1973 - 02.1979] RY10,12 |
77316-20010 |
— | ||
|
77031B
|
77031B
90430-40059 Gasket (For Fuel Tank Cap)[09.1971 - 04.1973] RY10,12 |
90430-40059 |
US $3.93 |
||
|
77100
|
77100
77001-25902
Tank Assy, Fuel
[08.1974 - 02.1979] RY10 |
77001-25902 |
— | ||
|
77100
|
77100
77100-25050
Tank Assy, Fuel
[09.1971 - 04.1973] RY10 |
77100-25050 |
— | ||
|
77100
|
77100
77100-25110
Tank Assy, Fuel
[04.1973 - 08.1974] RY10 |
77100-25110 |
— | ||
|
77100A
|
77100A
90105-12018 Plug(For Fuel Tank)[09.1971 - 02.1979] JY16,RY1# |
90105-12018 |
US $6.81 |
||
|
77100B
|
77100B
90430-12038 Gasket(For Fuel Tank)[09.1971 - 06.1977] JY16,RY1# |
90430-12038 |
from US $2.75 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[06.1977 - 02.1979] JY16,RY1# |
90430-12245 |
from US $0.88 |
||
|
77241
|
77241
77251-25040
Tube, Fuel Main, No.1
[09.1971 - 04.1973] RY10,12 |
77251-25040 |
— | ||
|
77241
|
77241
77251-25041
Tube, Fuel Main, No.1
[04.1973 - 11.1975] RY10,12 |
77251-25041 |
— | ||
|
77241
|
77241
77251-25042
Tube, Fuel Main, No.1
[11.1975 - 02.1979] RY10,12 |
77251-25042 |
— | ||
|
77241B
|
77241B
95311-07026
Hose, Fuel, No.3(For Fuel Tank)
[09.1971 - 04.1973] RY10,12 L=260 |
95311-07026 |
— | ||
|
77241B
|
77241B
95331-06018
Hose, Fuel(For Fuel Evaporative Separator)
[11.1975 - 02.1979] RY10,12 *H,L=180 |
95331-06018 |
— | ||
|
77241B
|
77241B
95331-08018 Hose, Fuel, No.1 (For Fuel Emission Tube)[04.1973 - 11.1975] RY10,12 *H,L=180 |
95331-08018 |
US $4.51 |
||
| replacement | |||||
|
77241B
|
77241B
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [04.1973 - 11.1975] RY10,12 *H,L=180 |
95337-08020 |
from US $5.56 |
||
|
77241U
|
77241U
77283-25020 Bracket, Fuel ClampFUEL CLAMP [11.1972 - 10.1974] RY10,12 |
77283-25020 |
US $3.35 |
||
| replacement | |||||
|
77241U
|
77241U
77283-25021
Bracket, Fuel Clamp
[11.1972 - 10.1974] RY10,12 |
77283-25021 |
— | ||
|
77241U
|
77241U
77283-25021
Bracket, Fuel Clamp
[10.1974 - 11.1975] RY10,12 |
77283-25021 |
— | ||
|
77611
|
77611
77601-25070
Band, Fuel Tank
[09.1971 - 04.1973] RY10,12 |
77601-25070 |
— | ||
|
77611
|
77611
77601-25080 Band, Fuel TankFUEL TANK [04.1973 - 02.1979] JY16,RY1# |
77601-25080 |
US $24.61 |
||
|
77611A
|
77611A
77629-25010
Pin (For Fuel Tank Band)
[04.1973 - 02.1979] JY16,RY1# |
77629-25010 |
— | ||
|
77611A
|
77611A
90240-08080
Pin (For Fuel Tank Band)
[09.1971 - 04.1973] RY10,12 |
90240-08080 |
— | ||
|
77612
|
77612
77602-25010
Bracket Sub-Assy, Fuel Tank
[09.1971 - 04.1973] RY10,12 |
77602-25010 |
— | ||
|
77612
|
77612
77602-25031
Bracket Sub-Assy, Fuel Tank
[04.1973 - 02.1979] JY16,RY1# |
77602-25031 |
— | ||
|
77651
|
77651
77651-25040 Packing, Fuel Tank BracketFUEL TANK BRACKET [04.1973 - 02.1979] JY16,RY1# |
77651-25040 |
US $4.08 |
||
|
77651
|
77651
77651-35010
Packing, Fuel Tank Bracket
[09.1971 - 04.1973] RY10,12 |
77651-35010 |
— | ||
|
9046110429
|
9046110429
90461-10429
New Genuine Part
|
90461-10429 |
— | ||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161141022
|
9161141022
91611-41022 Bolt (for Transmission Control Cable Bracket) |
91611-41022 |
US $2.91 |
||
| replacement | |||||
|
9161141022
|
9161141022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.33 |
||
|
9161141025
|
9161141025
91611-41025
Bolt(for Transaxle & Engine Setting)
|
91611-41025 |
— | ||
| replacement | |||||
|
9161141025
|
9161141025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
