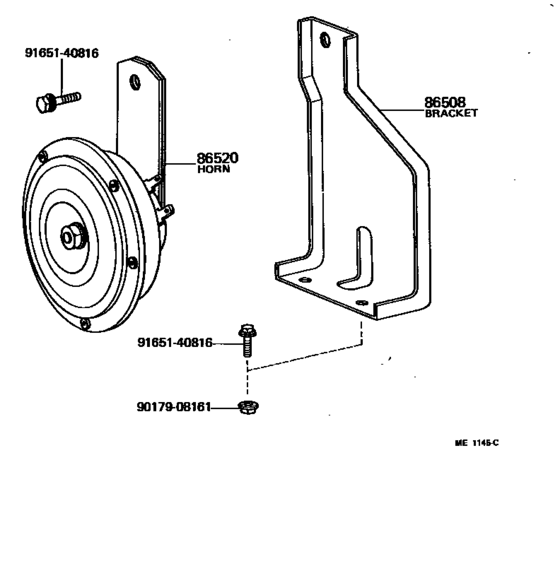

Horn ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86508
|
86508
86591-25010
Bracket Sub-Assy, Horn
[09.1973 - 02.1979] JY16,RY1# |
86591-25010 |
— | ||
|
86520
|
86520
86520-14010
Horn Assy, Low Pitched
[09.1973 - 02.1974] JY16,RY1# |
86520-14010 |
— | ||
| replacement | |||||
|
86520
|
86520
86520-22100
Horn Assy, Low Pitched
[09.1973 - 02.1974] JY16,RY1# |
86520-22100 |
— | ||
|
86520
|
86520
86520-25050
Horn Assy, Low Pitched
[09.1971 - 09.1973] JY16,RY1# |
86520-25050 |
— | ||
| replacement | |||||
|
86520
|
86520
86520-30351
Horn Assy, Low Pitched
[09.1971 - 09.1973] JY16,RY1# |
86520-30351 |
— | ||
|
86520
|
86520
86520-25080 Horn Assy, Low PitchedLOW PITCHED [02.1974 - 02.1979] JY16,RY1# |
86520-25080 |
US $53.58 |
||
| replacement | |||||
|
86520
|
86520
86520-30351
Horn Assy, Low Pitched
[02.1974 - 02.1979] JY16,RY1# |
86520-30351 |
— | ||
|
9017908161
|
9017908161
90179-08161 New Genuine Part |
90179-08161 |
US $3.93 |
||
| replacement | |||||
|
9017908161
|
9017908161
90179-08017 NUT |
90179-08017 |
from US $0.78 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
