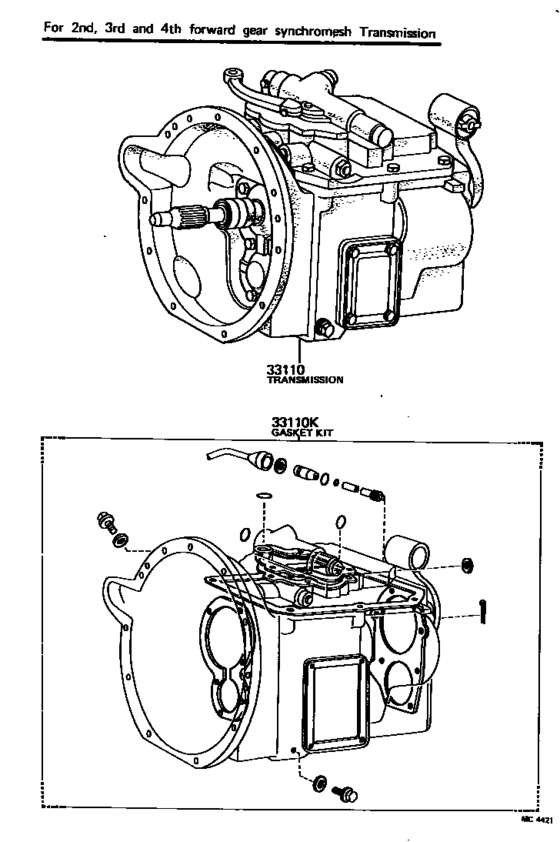

Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([09.1971 - 02.1979] (7109-7902)RY1#) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33110
|
33110
33110-25140
Transmission Assy, Manual
[09.1971 - 01.1975] RY10..RHD SMG.R=19:4 |
33110-25140 |
— | ||
|
33110
|
33110
33110-25330
Transmission Assy, Manual
[01.1975 - 02.1979] RY10..RHD SMG.R=19:4 |
33110-25330 |
— | ||
|
33110K
|
33110K
04331-36010
Gasket Kit, Manual Transmission Overhaul
[09.1971 - 01.1975] RY1# |
04331-36010 |
— | ||
|
33110K
|
33110K
04331-36011
Gasket Kit, Manual Transmission Overhaul
[01.1975 - 02.1979] RY1# |
04331-36011 |
— |
