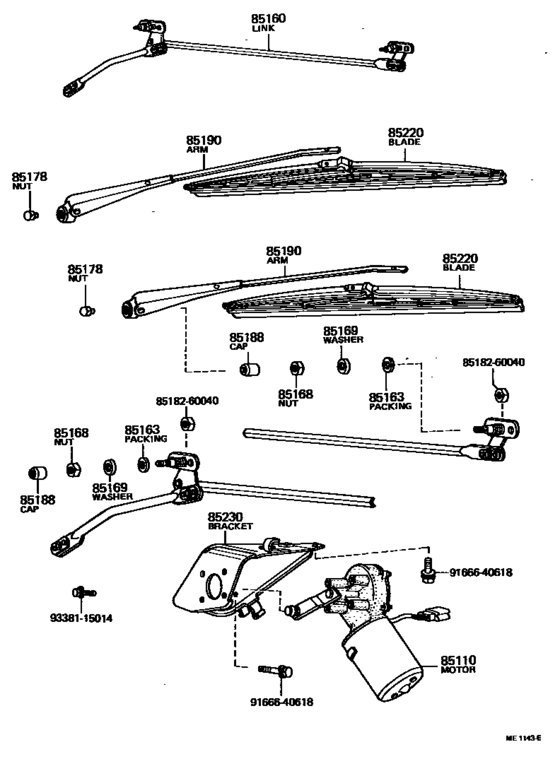

Windshield Wiper ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-95013
Motor Assy, Windshield Wiper
[09.1971 - 09.1973] RY10,12..RHD |
85110-95013 |
— | ||
|
85110
|
85110
85110-95014
Motor Assy, Windshield Wiper
[09.1973 - 02.1979] JY16,RY1#..RHD |
85110-95014 |
— | ||
|
85160
|
85160
85160-95011
Link Assy, Windshield Wiper
[09.1971 - 09.1973] RY10,12..RHD |
85160-95011 |
— | ||
|
85160
|
85160
85160-95013 Link Assy, Windshield WiperWINDSHIELD WIPER [09.1973 - 02.1979] JY16,RY1#..RHD |
85160-95013 |
US $85.90 |
||
|
85163
|
85163
85185-25040 Packing, Windshield Wiper PivotREAR WIPER PIVOT, NO.1 [09.1971 - 02.1979] JY16,RY1# |
85185-25040 |
US $6.99 |
||
|
85168
|
85168
85168-55010 Nut, Windshield Wiper Link PivotREAR WIPER LINK PIVOT, NO.1 [09.1971 - 02.1979] JY16,RY1# |
85168-55010 |
US $5.02 |
||
|
85169
|
85169
85169-55010
Washer, Windshield Wiper Link Pivot, No.1
[09.1971 - 02.1979] JY16,RY1# |
85169-55010 |
— | ||
| replacement | |||||
|
85169
|
85169
90209-12002 Washer, Windshield Wiper Link Pivot, No.1REAR WIPER LINK PIVOT, NO.1 [09.1971 - 02.1979] JY16,RY1# |
90209-12002 |
US $3.76 |
||
|
85178
|
85178
90176-06010 Nut (For Front Wiper Arm Setting)[09.1971 - 08.1973] JY16,RY1# |
90176-06010 |
US $3.35 |
||
|
85178
|
85178
90176-06016
Nut (For Front Wiper Arm Setting)
[08.1973 - 02.1979] JY16,RY1# |
90176-06016 |
— | ||
|
85188
|
85188
85135-55010
Cap, Windshield Wiper Pivot, No.1
[09.1971 - 02.1979] JY16,RY1# |
85135-55010 |
— | ||
|
85190
|
85190
85190-95011
Arm Assy, Windshield Wiper
[09.1971 - 02.1979] JY16,RY1#..RHD |
85190-95011 |
— | ||
|
85220
|
85220
85220-95403
Blade Assy, Windshield Wiper
[09.1971 - 02.1979] JY16,RY1# |
85220-95403 |
— | ||
|
85230
|
85230
85203-95010
Bracket Assy, Windshield Wiper
[09.1971 - 09.1973] RY10,12..RHD |
85203-95010 |
— | ||
|
85230
|
85230
85203-95012
Bracket Assy, Windshield Wiper
[09.1973 - 02.1979] JY16,RY1#..RHD |
85203-95012 |
— | ||
|
8518260040
|
8518260040
85182-60040
Nut (For Front Wiper Arm Setting)
|
85182-60040 |
— | ||
|
9166640618
|
9166640618
91666-40618
New Genuine Part
|
91666-40618 |
— | ||
| replacement | |||||
|
9166640618
|
9166640618
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
9338115014
|
9338115014
93381-15014 New Genuine Part |
93381-15014 |
US $1.16 |
||
