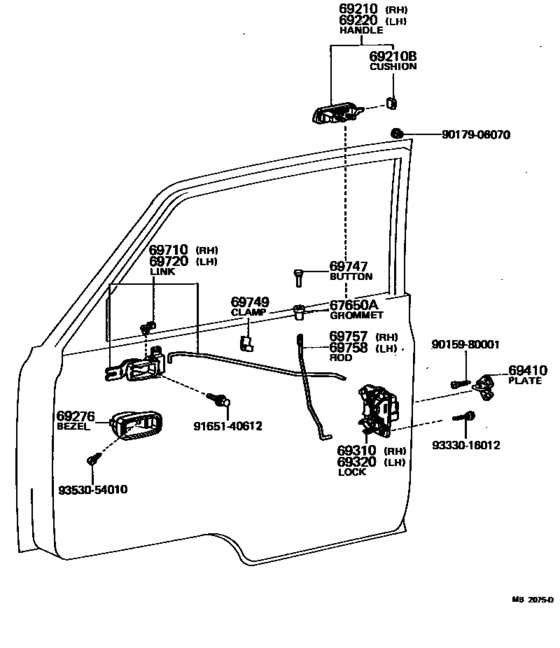

Front Door Lock & Handle ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67650A
|
67650A
90480-10102
Grommet(For Door Panel Lock Button)
[09.1971 - 02.1979] JY16,RY1# |
90480-10102 |
— | ||
| replacement | |||||
|
67650A
|
67650A
90480-10102-01 Grommet(For Rear Door Panel Lock Button)[09.1971 - 02.1979] JY16,RY1# |
90480-10102-01 |
from US $1.21 |
||
|
69210
|
69210
69210-95010
Handle Assy, Front Door, Outside Rh
[09.1971 - 02.1979] JY16,RY1# |
69210-95010 |
— | ||
|
69210B
|
69210B
69239-95700 Cushion(For Front Door Outside Handle)[09.1971 - 07.1978] JY16,RY1# |
69239-95700 |
US $3.79 |
||
|
69220
|
69220
69220-95010
Handle Assy, Front Door Outside, Lh
[09.1971 - 02.1979] JY16,RY1# |
69220-95010 |
— | ||
|
69276
|
69276
69276-10012 Bezel, Front Door Inside HandleFRONT DOOR INSIDE HANDLE [09.1971 - 02.1979] JY16,RY1# |
69276-10012 |
US $6.26 |
||
| replacement | |||||
|
69276
|
69276
69276-10012-01
Bezel, Front Door Inside Handle
[09.1971 - 02.1979] JY16,RY1# |
69276-10012-01 |
— | ||
|
69310
|
69310
69310-95011 Lock Assy, Front Door, RhFRONT DOOR, RH [09.1971 - 02.1979] JY16,RY1# |
69310-95011 |
US $132.50 |
||
|
69320
|
69320
69320-95013 Lock Assy, Front Door, LhFRONT DOOR, LH [09.1971 - 02.1979] JY16,RY1# |
69320-95013 |
US $129.58 |
||
|
69410
|
69410
69410-95010 Striker, Tail Gate Lock[09.1971 - 02.1979] JY16,RY1# |
69410-95010 |
US $17.18 |
||
| replacement | |||||
|
69410
|
69410
69410-37010 Plate Assy, Rear Door Lock Striker[09.1971 - 02.1979] JY16,RY1# |
69410-37010 |
US $17.76 |
||
|
69710
|
69710
69710-95010
Link Assy, Front Door Open Control, Rh
[09.1971 - 02.1976] JY16,RY1# |
69710-95010 |
— | ||
|
69710
|
69710
69710-95012
Link Assy, Front Door Open Control, Rh
[02.1976 - 02.1979] JY16,RY1# |
69710-95012 |
— | ||
|
69720
|
69720
69720-95010
Link Assy, Front Door Open Control, Lh
[09.1971 - 02.1976] JY16,RY1# |
69720-95010 |
— | ||
|
69720
|
69720
69720-95012
Link Assy, Front Door Open Control, Lh
[02.1976 - 02.1979] JY16,RY1# |
69720-95012 |
— | ||
|
69747
|
69747
69747-20020
Button, Door Locking(For Slide Door)
[09.1971 - 02.1979] JY16,RY1# |
69747-20020 |
— | ||
| replacement | |||||
|
69747
|
69747
69747-20020-C0 Button, Door Locking(For Front Door)[09.1971 - 02.1979] JY16,RY1# |
69747-20020-C0 |
US $4.48 |
||
|
69749
|
69749
69749-12010 Clamp(For Hood Lock Control Cable)[01.1973 - 02.1979] JY16,RY1# |
69749-12010 |
from US $1.19 |
||
|
69749
|
69749
69749-22010 Clamp(For Hood Lock Control Cable)FRONT DOOR LOCK LINK [09.1971 - 01.1973] JY16,RY1# |
69749-22010 |
US $2.62 |
||
| replacement | |||||
|
69749
|
69749
69749-12010 Clamp(For Hood Lock Control Cable)[09.1971 - 01.1973] JY16,RY1# |
69749-12010 |
from US $1.19 |
||
|
69757
|
69757
69757-95010
Rod, Front Door Locking Control, No.2 Rh
[09.1971 - 02.1979] JY16,RY1# |
69757-95010 |
— | ||
|
69758
|
69758
69757-95010
Rod, Front Door Locking Control, No.2 Rh
[09.1971 - 02.1979] JY16,RY1# |
69757-95010 |
— | ||
|
9015980001
|
9015980001
90159-80001
SCREW
|
90159-80001 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9333016012
|
9333016012
93330-16012 New Genuine Part |
93330-16012 |
US $2.33 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.68 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.77 |
||
