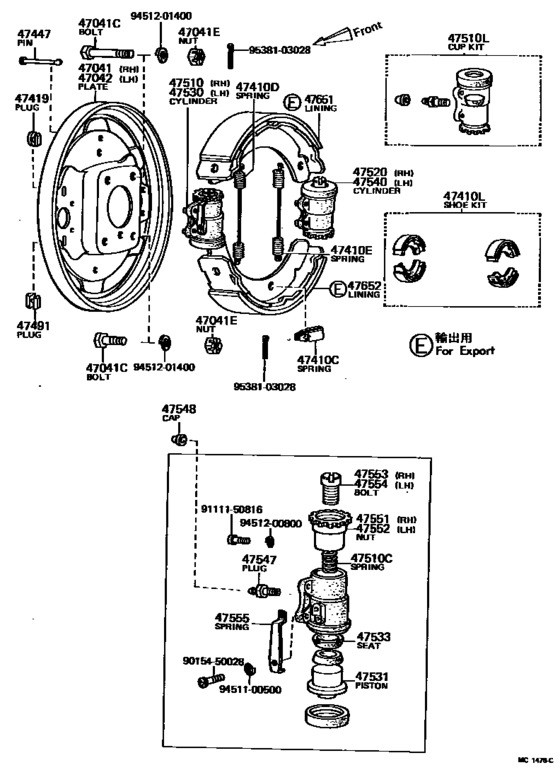

Front Drum Brake Wheel Cylinder & Backing Plate ([09.1971 - 09.1973] (7109-7309)RY10,12) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47041
|
47041
47041-25010
Plate Sub-Assy, Brake Backing, Front Rh
[09.1971 - 02.1979] RY10,12; JY16..15T |
47041-25010 |
— | ||
|
47041C
|
47041C
90102-14052
Bolt(For Backing Plate To Steering Knuckle Arm Setting)
[09.1971 - 02.1979] RY10,12 14-1.5PX106.5-21; JY16..15T 14-1.5PX106.5-21 |
90102-14052 |
— | ||
|
47041C
|
47041C
90102-14053
Bolt(For Backing Plate To Steering Knuckle Arm Setting)
[09.1971 - 02.1979] RY10,12 14-1.5PX37.5-22; JY16..15T 14-1.5PX37.5-22 |
90102-14053 |
— | ||
|
47041E
|
47041E
94145-51400
Nut(For Backing Plate To Steering Knuckle Arm Setting)
[09.1971 - 02.1979] RY10,12; JY16..15T |
94145-51400 |
— | ||
|
47042
|
47042
47041-25010
Plate Sub-Assy, Brake Backing, Front Rh
[09.1971 - 02.1979] RY10,12; JY16..15T |
47041-25010 |
— | ||
|
47410C
|
47410C
47446-30010 Spring(For Front Brake Shoe Hold Down)[09.1971 - 08.1977] JY16,RY1# |
47446-30010 |
US $2.87 |
||
|
47410D
|
47410D
90506-26071
Spring, Tension(For Front Brake Shoe Return)
[09.1971 - 02.1972] RY1# |
90506-26071 |
— | ||
|
47410D
|
47410D
90506-26372 Spring, Tension(For Front Brake Shoe Return)TENSION(FOR REAR BRAKE SHOE RETURN) [02.1972 - 08.1977] RY10,12; JY16..15T |
90506-26372 |
from US $6.45 |
||
|
47410E
|
47410E
90506-26071
Spring, Tension(For Front Brake Shoe Return)
[09.1971 - 02.1972] RY1# |
90506-26071 |
— | ||
|
47410E
|
47410E
90506-26372 Spring, Tension(For Front Brake Shoe Return)TENSION(FOR REAR BRAKE SHOE RETURN) [02.1972 - 08.1977] RY10,12; JY16..15T |
90506-26372 |
from US $6.45 |
||
|
47410L
|
47410L
04494-25010 Shoe Kit, Front BrakeFRONT BRAKE [09.1971 - 11.1973] RY10,12 |
04494-25010 |
US $206.75 |
||
| replacement | |||||
|
47410L
|
47410L
04494-25012 Shoe Kit, Front Brake[09.1971 - 11.1973] RY10,12 |
04494-25012 |
US $248.98 |
||
|
47410L
|
47410L
04494-25011 Shoe Kit, Front BrakeFRONT BRAKE [11.1973 - 02.1979] RY10,12; JY16..15T |
04494-25011 |
US $206.75 |
||
| replacement | |||||
|
47410L
|
47410L
04494-25012 Shoe Kit, Front Brake[11.1973 - 02.1979] RY10,12; JY16..15T |
04494-25012 |
US $248.98 |
||
|
47419
|
47419
47419-35011 Plug, Hole(For Front Brake)[09.1971 - 08.1977] JY16,RY1# |
47419-35011 |
from US $0.88 |
||
|
47447
|
47447
47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)[02.1974 - 02.1979] RY10,12; JY16..15T |
47447-30020 |
from US $1.35 |
||
|
47447
|
47447
47447-35010 Pin, Shoe Hold Down Spring(For Front Brake)SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) [09.1971 - 02.1972] RY1# |
47447-35010 |
US $2.48 |
||
|
47447
|
47447
47447-40010 Pin, Shoe Hold Down Spring(For Front Brake)SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) [02.1972 - 02.1974] RY10,12 |
47447-40010 |
US $1.75 |
||
| replacement | |||||
|
47447
|
47447
47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)[02.1972 - 02.1974] RY10,12 |
47447-30020 |
from US $1.35 |
||
|
47491
|
47491
47491-20020 Plug, Hole(For Front Brake)[03.1975 - 08.1977] JY16,RY1# |
47491-20020 |
from US $1.79 |
||
|
47491
|
47491
47491-35021 Plug, Hole(For Front Brake)HOLE(FOR FRONT BRAKE) [09.1971 - 03.1975] JY16,RY1# |
47491-35021 |
US $3.06 |
||
| replacement | |||||
|
47491
|
47491
47491-36020 Plug, Hole(For Rear Brake)[09.1971 - 03.1975] JY16,RY1# |
47491-36020 |
US $3.05 |
||
|
47491
|
47491
47491-36010
Plug, Hole(For Front Brake)
[10.1978 - 02.1979] JY16,RY1# |
47491-36010 |
— | ||
| replacement | |||||
|
47491
|
47491
47491-36020 Plug, Hole(For Rear Brake)[10.1978 - 02.1979] JY16,RY1# |
47491-36020 |
US $3.05 |
||
|
47510
|
47510
47510-29085 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER) [09.1971 - 10.1977] RY10,12; JY16..15T |
47510-29085 |
US $112.11 |
||
| replacement | |||||
|
47510
|
47510
47510-69055 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) [09.1971 - 10.1977] RY10,12; JY16..15T |
47510-69055 |
US $131.20 |
||
|
47510
|
47510
47510-39126 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER) [10.1977 - 02.1979] JY16,RY1# |
47510-39126 |
US $112.11 |
||
| replacement | |||||
|
47510
|
47510
47510-69055 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) [10.1977 - 02.1979] JY16,RY1# |
47510-69055 |
US $131.20 |
||
|
47510C
|
47510C
90501-08122 Spring, Compression(For Front Wheel Brake Cylinder)[09.1971 - 09.1973] RY10,12 |
90501-08122 |
US $3.06 |
||
|
47510C
|
47510C
90501-10759 Spring, Compression(For Front Wheel Brake Cylinder)[12.1973 - 02.1979] JY16,RY1# |
90501-10759 |
US $2.18 |
||
|
47510C
|
47510C
90502-10052
Spring, Compression(For Front Wheel Brake Cylinder)
[09.1973 - 12.1973] JY16,RY1# |
90502-10052 |
— | ||
| replacement | |||||
|
47510C
|
47510C
04499-25010
Seat, Wheel Cylinder Piston Spring(For Front Brake)
[09.1973 - 12.1973] JY16,RY1# |
04499-25010 |
— | ||
|
47520
|
47520
47510-29085 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER) [09.1971 - 10.1977] RY10,12; JY16..15T |
47510-29085 |
US $112.11 |
||
| replacement | |||||
|
47520
|
47520
47510-69055 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) [09.1971 - 10.1977] RY10,12; JY16..15T |
47510-69055 |
US $131.20 |
||
|
47520
|
47520
47510-39126 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER) [10.1977 - 02.1979] RY10,12; JY16..15T |
47510-39126 |
US $112.11 |
||
| replacement | |||||
|
47520
|
47520
47510-69055 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) [10.1977 - 02.1979] RY10,12; JY16..15T |
47510-69055 |
US $131.20 |
||
|
47530
|
47530
47530-29085
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
[09.1971 - 10.1977] RY10,12; JY16..15T |
47530-29085 |
— | ||
| replacement | |||||
|
47530
|
47530
47530-69045 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) [09.1971 - 10.1977] RY10,12; JY16..15T |
47530-69045 |
US $131.20 |
||
|
47530
|
47530
47530-39126
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
[10.1977 - 02.1979] JY16,RY1# |
47530-39126 |
— | ||
| replacement | |||||
|
47530
|
47530
47530-69045 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) [10.1977 - 02.1979] JY16,RY1# |
47530-69045 |
US $131.20 |
||
|
47531
|
47531
47531-60010 Piston, Wheel Brake Cylinder(For Front Brake)WHEEL BRAKE CYLINDER(FOR REAR BRAKE) [09.1971 - 08.1977] RY10,12; JY16..15T |
47531-60010 |
US $15.14 |
||
|
47533
|
47533
47533-25010 Seat, Wheel Cylinder Piston Spring(For Front Brake)[12.1973 - 02.1979] JY16,RY1# |
47533-25010 |
US $5.68 |
||
|
47533
|
47533
47533-26010
Seat, Wheel Cylinder Piston Spring(For Front Brake)
[09.1971 - 09.1973] RY10,12 |
47533-26010 |
— | ||
| replacement | |||||
|
47533
|
47533
04499-25010
Seat, Wheel Cylinder Piston Spring(For Front Brake)
[09.1971 - 09.1973] RY10,12 |
04499-25010 |
— | ||
|
47533
|
47533
47533-36020 Seat, Wheel Cylinder Piston Spring(For Front Brake)WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) [09.1973 - 12.1973] JY16,RY1# |
47533-36020 |
US $6.70 |
||
| replacement | |||||
|
47533
|
47533
04499-25010
Seat, Wheel Cylinder Piston Spring(For Front Brake)
[09.1973 - 12.1973] JY16,RY1# |
04499-25010 |
— | ||
|
47540
|
47540
47530-29085
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
[09.1971 - 10.1977] RY10,12; JY16..15T |
47530-29085 |
— | ||
| replacement | |||||
|
47540
|
47540
47530-69045 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) [09.1971 - 10.1977] RY10,12; JY16..15T |
47530-69045 |
US $131.20 |
||
|
47540
|
47540
47530-39126
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
[10.1977 - 02.1979] RY10,12; JY16..15T |
47530-39126 |
— | ||
| replacement | |||||
|
47540
|
47540
47530-69045 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) [10.1977 - 02.1979] RY10,12; JY16..15T |
47530-69045 |
US $131.20 |
||
|
47547
|
47547
47547-12010 Plug, Bleeder(For Release Cylinder)[09.1971 - 02.1979] JY16,RY1# |
47547-12010 |
from US $2.32 |
||
|
47548
|
47548
31478-30010 Bleeder Plug Cap[09.1971 - 02.1979] JY16,RY1# |
31478-30010 |
from US $1.52 |
||
|
47551
|
47551
47551-36041 Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE) [10.1977 - 02.1979] JY16,RY1# LH.SCREW |
47551-36041 |
US $24.75 |
||
|
47551
|
47551
47552-25030
Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
[09.1973 - 10.1977] RY10,12 LH.SCREW; JY16..15T LH.SCREW |
47552-25030 |
— | ||
|
47551
|
47551
47552-35010
Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
[09.1971 - 09.1973] RY10,12 LH.SCREW |
47552-35010 |
— | ||
|
47552
|
47552
47551-25030
Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
[09.1973 - 10.1977] RY10,12 RH.SCREW; JY16..15T RH.SCREW |
47551-25030 |
— | ||
|
47552
|
47552
47551-35010
Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
[09.1971 - 09.1973] RY10,12 RH.SCREW |
47551-35010 |
— | ||
|
47552
|
47552
47552-36041 Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE) [10.1977 - 02.1979] JY16,RY1# RH.SCREW |
47552-36041 |
US $24.75 |
||
|
47553
|
47553
47553-36021 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)[10.1977 - 02.1979] JY16,RY1# LH.SCREW |
47553-36021 |
US $5.68 |
||
|
47553
|
47553
47554-25010 Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE) [09.1971 - 10.1977] RY10,12 LH.SCREW; JY16..15T LH.SCREW |
47554-25010 |
US $11.50 |
||
| replacement | |||||
|
47553
|
47553
47554-25020
Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
[09.1971 - 10.1977] RY10,12 LH.SCREW; JY16..15T LH.SCREW |
47554-25020 |
— | ||
|
47554
|
47554
47553-25010 Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) [09.1971 - 10.1977] RY10,12 RH.SCREW; JY16..15T RH.SCREW |
47553-25010 |
US $11.50 |
||
| replacement | |||||
|
47554
|
47554
47553-25020
Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
[09.1971 - 10.1977] RY10,12 RH.SCREW; JY16..15T RH.SCREW |
47553-25020 |
— | ||
|
47554
|
47554
47554-36021 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[10.1977 - 02.1979] JY16,RY1# RH.SCREW |
47554-36021 |
US $5.68 |
||
|
47555
|
47555
47555-35010
Spring, Adjuster Lock(For Front Brake)
[09.1971 - 10.1974] JY16,RY1# |
47555-35010 |
— | ||
|
47555
|
47555
47555-36020 Spring, Adjuster Lock(For Front Brake)[10.1977 - 02.1979] JY16,RY1# |
47555-36020 |
US $5.39 |
||
|
47651
|
47651
47651-25010
Lining, Front Brake Shoe(For Front Or Upper)
[09.1971 - 11.1973] RY10,12 |
47651-25010 |
— | ||
|
47651
|
47651
47651-25011
Lining, Front Brake Shoe(For Front Or Upper)
[11.1973 - 02.1979] RY10,12; JY16..15T |
47651-25011 |
— | ||
|
47652
|
47652
47651-25010
Lining, Front Brake Shoe(For Front Or Upper)
[09.1971 - 11.1973] RY10,12 |
47651-25010 |
— | ||
|
47652
|
47652
47651-25011
Lining, Front Brake Shoe(For Front Or Upper)
[11.1973 - 02.1979] RY10,12; JY16..15T |
47651-25011 |
— | ||
|
9015450028
|
9015450028
90154-50028
New Genuine Part
|
90154-50028 |
— | ||
| replacement | |||||
|
9015450028
|
9015450028
93249-15006 SCREW |
93249-15006 |
US $2.15 |
||
|
9111150816
|
9111150816
91111-50816 Bolt |
91111-50816 |
US $2.15 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.79 |
||
|
9538103028
|
9538103028
95381-03028 PIN |
95381-03028 |
US $1.65 |
||
