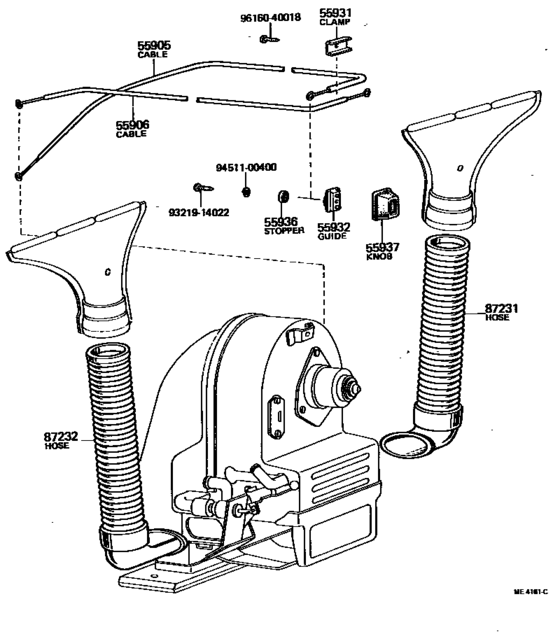

Heating & Air Conditioning - Control & Air Duct ([09.1971 - 11.1976] (7109-7611) ; (7611-7902)LHD) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905
|
55905
55905-95010
Cable Sub-Assy, Defrost Control
[09.1971 - 11.1976] JY16,RY1#..RHD |
55905-95010 |
— | ||
|
55905
|
55905
55905-95013
Cable Sub-Assy, Defrost Control
[11.1976 - 02.1979] JY16,RY1#..RHD |
55905-95013 |
— | ||
|
55906
|
55906
55906-95010
Cable Sub-Assy, Heater Control
[09.1971 - 11.1976] JY16,RY1# |
55906-95010 |
— | ||
|
55906
|
55906
55906-95011
Cable Sub-Assy, Heater Control
[11.1976 - 02.1979] JY16,RY1#..RHD |
55906-95011 |
— | ||
|
55931
|
55931
55931-95010
Clamp, Heater Control Wire
[09.1971 - 11.1976] JY16,RY1# |
55931-95010 |
— | ||
|
55932
|
55932
55932-95010
Guide, Lever, No.1
[09.1971 - 11.1976] JY16,RY1# |
55932-95010 |
— | ||
|
55936
|
55936
55939-20010
Stopper, Heater Control Wire Clamp
[09.1971 - 11.1976] JY16,RY1# |
55939-20010 |
— | ||
|
55937
|
55937
55937-22901 Knob, Heater Control LeverHEATER CONTROL LEVER [11.1976 - 02.1979] JY16,RY1#..RHD |
55937-22901 |
US $5.39 |
||
|
55937
|
55937
55937-95010
Knob, Heater Control Lever
[09.1971 - 11.1976] JY16,RY1# |
55937-95010 |
— | ||
|
87231
|
87231
87231-25070
Hose, Heater Defroster, Rh
[09.1971 - 11.1975] JY16,RY1# |
87231-25070 |
— | ||
|
87231
|
87231
87231-25080
Hose, Heater Defroster, Rh
[11.1975 - 11.1976] JY16,RY1# |
87231-25080 |
— | ||
| replacement | |||||
|
87231
|
87231
87231-25070
Hose, Heater Defroster, Rh
[11.1975 - 11.1976] JY16,RY1# |
87231-25070 |
— | ||
|
87231
|
87231
87231-25090
Hose, Heater Defroster, Rh
[11.1976 - 02.1979] JY16,RY1#..RHD |
87231-25090 |
— | ||
|
87232
|
87232
87231-25100
Hose, Heater Defroster, Lh
[11.1976 - 02.1979] JY16,RY1#..RHD |
87231-25100 |
— | ||
|
87232
|
87232
87232-25070
Hose, Heater Defroster, Lh
[09.1971 - 11.1976] JY16,RY1#..RHD |
87232-25070 |
— | ||
| replacement | |||||
|
87232
|
87232
87232-25080
Hose, Heater Defroster, Lh
[09.1971 - 11.1976] JY16,RY1#..RHD |
87232-25080 |
— | ||
|
9321914022
|
9321914022
93219-14022
New Genuine Part
|
93219-14022 |
— | ||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9616040018
|
9616040018
96160-40018
New Genuine Part
|
96160-40018 |
— | ||
