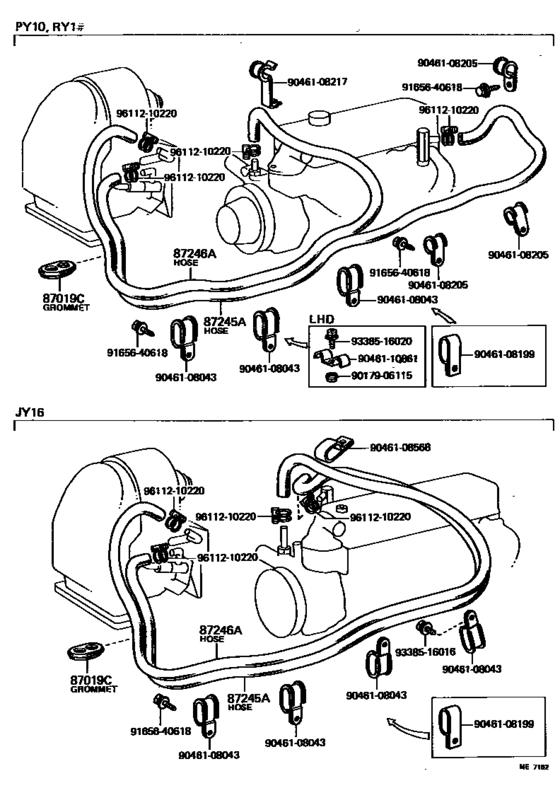

Heating & Air Conditioning - Water Piping ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01243
Grommet, Heater Hose
[09.1971 - 11.1976] JY16,RY1# |
90480-01243 |
— | ||
|
87245A
|
87245A
99551-22150 Hose, Heater Water, Inlet AHEATER WATER, INLET A [09.1971 - 03.1973] RY10,12..RHD L=2150 |
99551-22150 |
US $20.53 |
||
| replacement | |||||
|
87245A
|
87245A
99556-23000 Hose, Rear Heater Water Inlet, A(From Engine)[09.1971 - 03.1973] RY10,12..RHD L=2150 |
99556-23000 |
US $64.21 |
||
|
87245A
|
87245A
99552-21950
Hose, Heater Water, Inlet A
[11.1976 - 02.1979] RY10,12..RHD L=1950 |
99552-21950 |
— | ||
|
87245A
|
87245A
99552-22150
Hose, Heater Water, Inlet A
[03.1973 - 11.1975] RY10,12..RHD L=2150 |
99552-22150 |
— | ||
| replacement | |||||
|
87245A
|
87245A
99556-23000 Hose, Rear Heater Water Inlet, A(From Engine)[03.1973 - 11.1975] RY10,12..RHD L=2150 |
99556-23000 |
US $64.21 |
||
|
87246A
|
87246A
99551-22150 Hose, Heater Water, Inlet AHEATER WATER, INLET A [09.1971 - 03.1973] RY10,12..RHD L=2150 |
99551-22150 |
US $20.53 |
||
| replacement | |||||
|
87246A
|
87246A
99556-23000 Hose, Rear Heater Water Inlet, A(From Engine)[09.1971 - 03.1973] RY10,12..RHD L=2150 |
99556-23000 |
US $64.21 |
||
|
87246A
|
87246A
99552-21750
Hose, Heater Water, Inlet A
[11.1976 - 02.1979] RY10,12..RHD L=1750 |
99552-21750 |
— | ||
| replacement | |||||
|
87246A
|
87246A
99556-22000
Hose, Rear Heater Water Inlet, A(From Engine)
[11.1976 - 02.1979] RY10,12..RHD L=1750 |
99556-22000 |
— | ||
|
87246A
|
87246A
99552-22050
Hose, Heater Water, Inlet A
[09.1973 - 11.1975] RY10,12..RHD L=2050 |
99552-22050 |
— | ||
| replacement | |||||
|
87246A
|
87246A
99556-23000 Hose, Rear Heater Water Inlet, A(From Engine)[09.1973 - 11.1975] RY10,12..RHD L=2050 |
99556-23000 |
US $64.21 |
||
|
87246A
|
87246A
99552-22150
Hose, Heater Water, Inlet A
[03.1973 - 09.1973] RY10,12..RHD L=2150 |
99552-22150 |
— | ||
| replacement | |||||
|
87246A
|
87246A
99556-23000 Hose, Rear Heater Water Inlet, A(From Engine)[03.1973 - 09.1973] RY10,12..RHD L=2150 |
99556-23000 |
US $64.21 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9046108043
|
9046108043
90461-08043
New Genuine Part
|
90461-08043 |
— | ||
| replacement | |||||
|
9046108043
|
9046108043
90461-08258
New Genuine Part
|
90461-08258 |
— | ||
|
9046108199
|
9046108199
90461-08199
New Genuine Part
|
90461-08199 |
— | ||
|
9046108205
|
9046108205
90461-08205 New Genuine Part |
90461-08205 |
US $8.15 |
||
|
9046108217
|
9046108217
90461-08217
New Genuine Part
|
90461-08217 |
— | ||
|
9046108568
|
9046108568
90461-08568
New Genuine Part
|
90461-08568 |
— | ||
|
9046110861
|
9046110861
90461-10861
New Genuine Part
|
90461-10861 |
— | ||
|
9165640618
|
9165640618
91656-40618
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91656-40618 |
— | ||
| replacement | |||||
|
9165640618
|
9165640618
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9338516020
|
9338516020
93385-16020
New Genuine Part
|
93385-16020 |
— | ||
| replacement | |||||
|
9338516020
|
9338516020
93385-26020 New Genuine Part |
93385-26020 |
US $1.61 |
||
|
9611210220
|
9611210220
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10220 |
US $0.61 |
||
