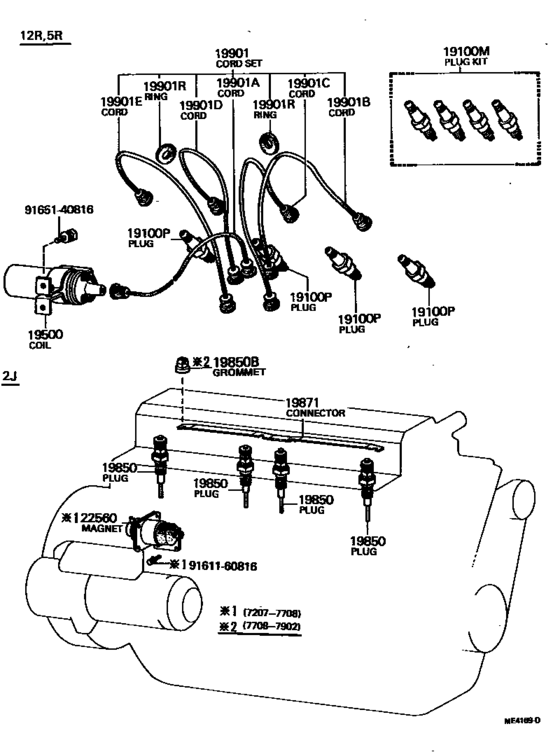

Ignition Coil & Spark Plug ([09.1971 - 02.1979] (7109-7902)12R,5R) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100M
|
19100M
04195-34010
Plug Kit, Spark
[11.1975 - 02.1979] 12R..RY10,12 W16EP |
04195-34010 |
— | ||
| replacement | |||||
|
19100M
|
19100M
90919-01064 Plug, Spark[11.1975 - 02.1979] 12R..RY10,12 W16EP |
90919-01064 |
from US $2.38 |
||
|
19100M
|
19100M
04195-34020
Plug Kit, Spark
[09.1971 - 09.1973] 12R,5R..RY1# W20EP |
04195-34020 |
— | ||
|
19100P
|
19100P
90919-01027
Plug, Spark
[11.1975 - 02.1979] 12R..RY10,12 W16EP OR W16EX-U,W16EP |
90919-01027 |
— | ||
| replacement | |||||
|
19100P
|
19100P
90919-01064 Plug, Spark[11.1975 - 02.1979] 12R..RY10,12 W16EP OR W16EX-U,W16EP |
90919-01064 |
from US $2.38 |
||
|
19100P
|
19100P
90919-01041 Plug, SparkSPARK [09.1973 - 11.1975] 12R,5R..RY1# W16EX |
90919-01041 |
US $5.97 |
||
| replacement | |||||
|
19100P
|
19100P
90919-01064 Plug, Spark[09.1973 - 11.1975] 12R,5R..RY1# W16EX |
90919-01064 |
from US $2.38 |
||
|
19100P
|
19100P
90999-09001 Plug, SparkSPARK [09.1971 - 09.1973] 12R,5R..RY1# W20EP |
90999-09001 |
US $5.97 |
||
| replacement | |||||
|
19100P
|
19100P
90919-01083 Plug, Spark[09.1971 - 09.1973] 12R,5R..RY1# W20EP |
90919-01083 |
from US $2.16 |
||
|
19500
|
19500
90919-02014
Coil Assy, Ignition
[09.1971 - 09.1973] 12R,5R..RY1# |
90919-02014 |
— | ||
| replacement | |||||
|
19500
|
19500
90919-02015
Coil Assy, Ignition
[09.1971 - 09.1973] 12R,5R..RY1# |
90919-02015 |
— | ||
|
19500
|
19500
90919-02053 Coil Assy, IgnitionIGNITION [09.1973 - 11.1975] 12R,5R..RY1# |
90919-02053 |
US $136.86 |
||
| replacement | |||||
|
19500
|
19500
90919-02118
Coil Assy, Ignition
[09.1973 - 11.1975] 12R,5R..RY1# |
90919-02118 |
— | ||
|
19500
|
19500
90919-02067 Coil Assy, IgnitionIGNITION [11.1975 - 02.1979] 12R..RY10,12 |
90919-02067 |
US $112.11 |
||
| replacement | |||||
|
19500
|
19500
90919-02098 Coil Assy, Ignition[11.1975 - 02.1979] 12R..RY10,12 |
90919-02098 |
from US $96.92 |
||
|
19901
|
19901
90919-21015
Cord Set, Coil & Spark, W/resistive
[09.1971 - 11.1975] 12R..RY10,12 |
90919-21015 |
— | ||
|
19901
|
19901
90919-21106 Cord Set, Coil & Spark, W/resistiveCOIL & SPARK, W/RESISTIVE [11.1975 - 02.1979] 12R..RY10,12 |
90919-21106 |
US $53.73 |
||
|
19901A
|
19901A
90919-13042 Cord, Coil ResistiveCOIL RESISTIVE [06.1975 - 11.1975] 12R..RY10,12 L=360 |
90919-13042 |
US $13.69 |
||
|
19901A
|
19901A
90919-13043 Cord, Coil ResistiveCOIL RESISTIVE [11.1975 - 02.1979] 12R..RY10,12 |
90919-13043 |
US $13.69 |
||
|
19901A
|
19901A
99231-10360 Cord, Coil ResistiveCOIL RESISTIVE [09.1971 - 06.1975] 12R..RY10,12 L=360 |
99231-10360 |
US $11.65 |
||
| replacement | |||||
|
19901A
|
19901A
90919-13042 Cord, Coil ResistiveCOIL RESISTIVE [09.1971 - 06.1975] 12R..RY10,12 L=360 |
90919-13042 |
US $13.69 |
||
|
19901B
|
19901B
90919-12082 Cord, Spark Plug Resistive, No.1[08.1973 - 02.1979] 12R..RY10,12 L=290 |
90919-12082 |
US $11.79 |
||
|
19901B
|
19901B
99221-10290 Cord, Spark Plug Resistive, No.1SPARK PLUG RESISTIVE, NO.1 [09.1971 - 08.1973] 12R,5R..RY1# L=290 |
99221-10290 |
US $11.65 |
||
| replacement | |||||
|
19901B
|
19901B
90919-12146 Cord, Spark Plug Resistive, No.1[09.1971 - 08.1973] 12R,5R..RY1# L=290 |
90919-12146 |
US $11.79 |
||
|
19901C
|
19901C
90919-12145 Cord, Spark Plug Resistive, No.2[06.1975 - 02.1979] 12R,5R..RY1# L=240 |
90919-12145 |
US $11.79 |
||
|
19901C
|
19901C
99221-10240 Cord, Spark Plug Resistive, No.2SPARK PLUG RESISTIVE, NO.2 [09.1971 - 06.1975] 12R,5R..RY1# L=240 |
99221-10240 |
US $11.65 |
||
| replacement | |||||
|
19901C
|
19901C
90919-12145 Cord, Spark Plug Resistive, No.2[09.1971 - 06.1975] 12R,5R..RY1# L=240 |
90919-12145 |
US $11.79 |
||
|
19901D
|
19901D
90919-12145 Cord, Spark Plug Resistive, No.2[06.1975 - 02.1979] 12R,5R..RY1# L=240 |
90919-12145 |
US $11.79 |
||
|
19901D
|
19901D
99221-10240 Cord, Spark Plug Resistive, No.2SPARK PLUG RESISTIVE, NO.2 [09.1971 - 06.1975] 12R,5R..RY1# L=240 |
99221-10240 |
US $11.65 |
||
| replacement | |||||
|
19901D
|
19901D
90919-12145 Cord, Spark Plug Resistive, No.2[09.1971 - 06.1975] 12R,5R..RY1# L=240 |
90919-12145 |
US $11.79 |
||
|
19901E
|
19901E
90919-12146 Cord, Spark Plug Resistive, No.1[06.1975 - 02.1979] 12R,5R..RY1# L=290 |
90919-12146 |
US $11.79 |
||
|
19901E
|
19901E
99221-10290 Cord, Spark Plug Resistive, No.1SPARK PLUG RESISTIVE, NO.1 [09.1971 - 06.1975] 12R,5R..RY1# L=290 |
99221-10290 |
US $11.65 |
||
| replacement | |||||
|
19901E
|
19901E
90919-12146 Cord, Spark Plug Resistive, No.1[09.1971 - 06.1975] 12R,5R..RY1# L=290 |
90919-12146 |
US $11.79 |
||
|
19901R
|
19901R
90202-11067 Ring, Rubber Spark Plug Resistive Cord[09.1971 - 02.1979] 12R,5R..RY1# |
90202-11067 |
US $1.49 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
