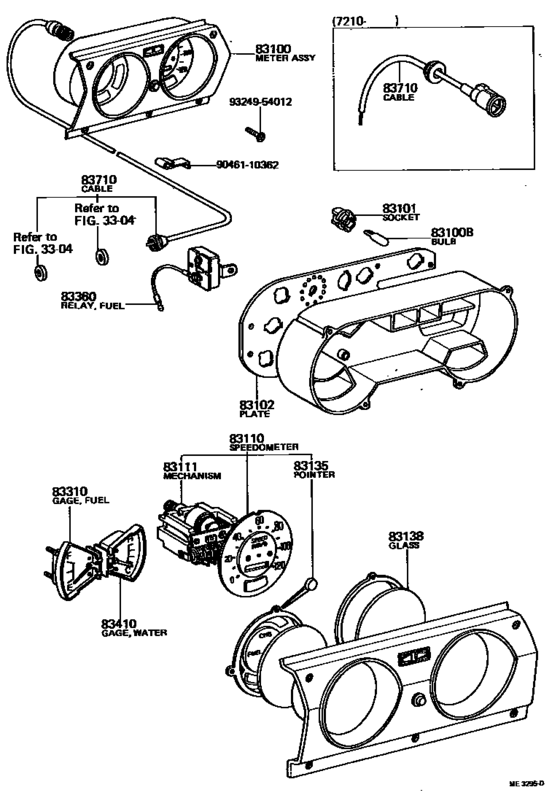

Meter ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83100-25070
Meter Assy, Combination
[09.1971 - 09.1972] JY16,RY1# KM |
83100-25070 |
— | ||
|
83100
|
83100
83100-25071
Meter Assy, Combination
[09.1972 - 02.1979] JY16,RY1# KM |
83100-25071 |
— | ||
|
83100
|
83100
83100-25080
Meter Assy, Combination
[09.1971 - 09.1972] JY16,RY1# MILE |
83100-25080 |
— | ||
|
83100
|
83100
83100-25081 Meter Assy, CombinationCOMBINATION [09.1972 - 08.1977] JY16,RY1# MILE |
83100-25081 |
US $457.18 |
||
| replacement | |||||
|
83100
|
83100
83100-25082
Meter Assy, Combination
[09.1972 - 08.1977] JY16,RY1# MILE |
83100-25082 |
— | ||
|
83100
|
83100
83100-25082
Meter Assy, Combination
[08.1977 - 02.1979] JY16,RY1# MILE & KM |
83100-25082 |
— | ||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1971 - 02.1979] JY16,RY1# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1971 - 02.1979] JY16,RY1# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-12010
Socket, Ash Receptacle Lamp
[09.1971 - 02.1979] JY16,RY1# |
83101-12010 |
— | ||
|
83102
|
83102
83102-25010 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [09.1972 - 02.1979] JY16,RY1# |
83102-25010 |
US $88.82 |
||
|
83110
|
83110
83110-25060 Speedometer Assy[11.1976 - 08.1977] JY16,RY1# MILE |
83110-25060 |
US $317.41 |
||
| replacement | |||||
|
83110
|
83110
83110-27022
Speedometer Assy
[11.1976 - 08.1977] JY16,RY1# MILE |
83110-27022 |
— | ||
|
83110
|
83110
83110-25070 Speedometer Assy[11.1976 - 08.1977] JY16,RY1# KM |
83110-25070 |
US $317.41 |
||
| replacement | |||||
|
83110
|
83110
83110-26013
Speedometer Assy
[11.1976 - 08.1977] JY16,RY1# KM |
83110-26013 |
— | ||
|
83110
|
83110
83110-26013
Speedometer Assy
[09.1971 - 09.1972] JY16,RY1# KM |
83110-26013 |
— | ||
|
83110
|
83110
83110-26014
Speedometer Assy
[09.1972 - 11.1976] JY16,RY1# KM |
83110-26014 |
— | ||
|
83110
|
83110
83110-27020
Speedometer Assy
[09.1971 - 09.1972] JY16,RY1# MILE |
83110-27020 |
— | ||
|
83110
|
83110
83110-27021 Speedometer Assy[09.1972 - 11.1976] JY16,RY1# MILE |
83110-27021 |
US $317.41 |
||
| replacement | |||||
|
83110
|
83110
83110-27022
Speedometer Assy
[09.1972 - 11.1976] JY16,RY1# MILE |
83110-27022 |
— | ||
|
83110
|
83110
83110-27022
Speedometer Assy
[08.1977 - 02.1979] JY16,RY1# MILE & KM |
83110-27022 |
— | ||
|
83111
|
83111
83112-26014
Mechanism, Speedometer
[09.1972 - 02.1979] JY16,RY1# KM |
83112-26014 |
— | ||
|
83111
|
83111
83112-26023
Mechanism, Speedometer
[09.1972 - 02.1979] JY16,RY1# MILE |
83112-26023 |
— | ||
|
83135
|
83135
83135-26010
Pointer, Speedometer
[09.1972 - 02.1979] JY16,RY1# |
83135-26010 |
— | ||
|
83138
|
83138
83138-26010 Glass, SpeedometerSPEEDOMETER [09.1972 - 02.1979] JY16,RY1# |
83138-26010 |
US $15.43 |
||
|
83310
|
83310
83310-26011 Gage Assy, Fuel ReceiverFUEL RECEIVER [09.1971 - 02.1979] JY16,RY1# |
83310-26011 |
US $38.44 |
||
|
83360
|
83360
83360-20011
Relay Assy, Fuel Sender
[09.1971 - 02.1979] JY16,RY1# |
83360-20011 |
— | ||
|
83410
|
83410
83410-25020
Gage Assy, Water Temperature Receiver
[09.1971 - 02.1979] JY16,RY1# |
83410-25020 |
— | ||
|
83710
|
83710
83710-29195
Cable Assy, Speedometer Drive, No.1
[09.1971 - 09.1972] RY10,12..RHD L=2700 |
83710-29195 |
— | ||
|
83710
|
83710
83710-29196
Cable Assy, Speedometer Drive, No.1
[09.1972 - 02.1979] RY10,12..RHD L=2700 |
83710-29196 |
— | ||
|
83710
|
83710
83710-29205
Cable Assy, Speedometer Drive, No.1
[09.1971 - 09.1972] RY10..RHD L=2800,W/BRAKE BOOSTER |
83710-29205 |
— | ||
|
83710
|
83710
83710-29206 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [09.1972 - 02.1979] JY16,RY16 L=2800; RY10..RHD L=2800,W/BRAKE BOOSTER |
83710-29206 |
US $67.85 |
||
|
9046110362
|
9046110362
90461-10362
Clamp(For Engine Mouting Bracket)
|
90461-10362 |
— | ||
| replacement | |||||
|
9046110362
|
9046110362
90461-10857 Clamp(For Engine Mouting Bracket) |
90461-10857 |
US $4.37 |
||
|
9324954012
|
9324954012
93249-54012 New Genuine Part |
93249-54012 |
US $1.16 |
||
