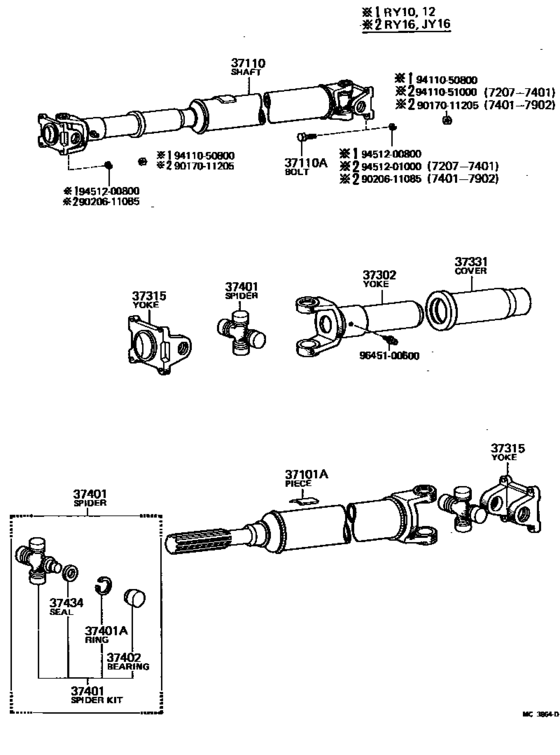

Propeller Shaft & Universal Joint ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37101A
|
37101A
90937-01010 Piece, Balance, No.1 (For Propeller Shaft)BALANCE, NO.1 (FOR PROPELLER SHAFT) [09.1971 - 01.1974] JY16,RY1# 10G. |
90937-01010 |
US $5.10 |
||
|
37101A
|
37101A
90937-01011 Piece, Balance, No.1 (For Propeller Shaft)BALANCE, NO.1 (FOR PROPELLER SHAFT) [09.1971 - 01.1974] JY16,RY1# 20G. |
90937-01011 |
US $1.89 |
||
|
37101A
|
37101A
90937-01012
Piece, Balance, No.1 (For Propeller Shaft)
[09.1971 - 01.1974] JY16,RY1# 30G. |
90937-01012 |
— | ||
|
37101A
|
37101A
90937-01022
Piece, Balance, No.1 (For Propeller Shaft)
[09.1971 - 01.1974] JY16,RY1# 5G,5G. |
90937-01022 |
— | ||
|
37110
|
37110
37110-25030 Shaft Assy, PropellerPROPELLER [09.1971 - 08.1978] RY10 L=927.5,OD=65 |
37110-25030 |
US $886.70 |
||
| replacement | |||||
|
37110
|
37110
37110-25031
Shaft Assy, Propeller
[09.1971 - 08.1978] RY10 L=927.5,OD=65 |
37110-25031 |
— | ||
|
37110
|
37110
37110-25031
Shaft Assy, Propeller
[08.1978 - 02.1979] RY10 L=927.5,OD=65 |
37110-25031 |
— | ||
|
37110A
|
37110A
90101-08214
Bolt (For Winch Drive Shaft Setting)
[09.1971 - 02.1979] RY10,12 *8-1.25PX25-12 |
90101-08214 |
— | ||
| replacement | |||||
|
37110A
|
37110A
90101-08262 Bolt (For Propeller Shaft)[09.1971 - 02.1979] RY10,12 *8-1.25PX25-12 |
90101-08262 |
from US $1.48 |
||
|
37302
|
37302
37302-25010 Yoke Sub-Assy, Universal Joint SleeveUNIVERSAL JOINT SLEEVE [09.1971 - 02.1979] RY10,12 |
37302-25010 |
US $107.74 |
||
|
37315
|
37315
37315-35021 Yoke, Universal Joint Flange[09.1971 - 02.1979] RY10,12 |
37315-35021 |
US $54.02 |
||
|
37331
|
37331
37305-25010
Cover, Sliding Shaft Dust
[09.1971 - 02.1979] JY16,RY1# |
37305-25010 |
— | ||
|
37401
|
37401
04371-25010 Spider Kit, Universal Joint(For Propeller Shaft)[08.1978 - 02.1979] RY10,12 |
04371-25010 |
from US $56.98 |
||
|
37401
|
37401
04371-30011
Spider Kit, Universal Joint(For Propeller Shaft)
[09.1971 - 08.1978] RY10,12 |
04371-30011 |
— | ||
| replacement | |||||
|
37401
|
37401
04371-25010 Spider Kit, Universal Joint(For Propeller Shaft)[09.1971 - 08.1978] RY10,12 |
04371-25010 |
from US $56.98 |
||
|
37401A
|
37401A
90521-27001 Ring, Hole Snap (For Spider Bearing)[09.1971 - 08.1978] RY10,12 T=1.2 |
90521-27001 |
US $3.06 |
||
| replacement | |||||
|
37401A
|
37401A
90521-27002 Ring, Hole Snap (For Spider Bearing)[09.1971 - 08.1978] RY10,12 T=1.2 |
90521-27002 |
US $2.62 |
||
|
37401A
|
37401A
90521-27002 Ring, Hole Snap (For Spider Bearing)[09.1971 - 08.1978] RY10,12 T=1.25 |
90521-27002 |
US $2.62 |
||
|
37401A
|
37401A
90521-27003 Ring, Hole Snap (For Spider Bearing)[09.1971 - 08.1978] RY10,12 T=1.30 |
90521-27003 |
US $3.06 |
||
| replacement | |||||
|
37401A
|
37401A
90521-27004
Ring, Hole Snap (For Spider Bearing)
[09.1971 - 08.1978] RY10,12 T=1.30 |
90521-27004 |
— | ||
|
37401A
|
37401A
90521-27004
Ring, Hole Snap (For Spider Bearing)
[09.1971 - 08.1978] RY10,12 T=1.35 |
90521-27004 |
— | ||
|
37401A
|
37401A
90521-29070 Ring, Hole Snap (For Spider Bearing)[08.1978 - 02.1979] RY10,12 T=2.375-2.425,T=2.4 |
90521-29070 |
US $3.06 |
||
|
37401A
|
37401A
90521-29071 Ring, Hole Snap (For Spider Bearing)[08.1978 - 02.1979] RY10,12 T=2.425-2.475,T=2.45 |
90521-29071 |
US $3.06 |
||
|
37401A
|
37401A
90521-29072 Ring, Hole Snap (For Spider Bearing)[08.1978 - 02.1979] RY10,12 T=2.475-2.525,T=2.5 |
90521-29072 |
US $3.06 |
||
|
37402
|
37402
37402-25020 Bearing Sub-Assy, Universal Joint Spider[08.1978 - 02.1979] RY10,12 |
37402-25020 |
US $10.47 |
||
|
37402
|
37402
37402-35031
Bearing Sub-Assy, Universal Joint Spider
[09.1971 - 08.1978] RY10,12 |
37402-35031 |
— | ||
|
37434
|
37434
37343-25010
Seal, Universal Joint Spider Bearing
[09.1971 - 08.1978] RY10,12 |
37343-25010 |
— | ||
|
37434
|
37434
37434-25010 Seal, Universal Joint Spider Bearing[08.1978 - 02.1979] RY10,12 |
37434-25010 |
US $4.80 |
||
|
9017011205
|
9017011205
90170-11205
Nut (For Propeller Shaft)
|
90170-11205 |
— | ||
| replacement | |||||
|
9017011205
|
9017011205
90105-11H00 Bolt (For Propeller Shaft) |
90105-11H00 |
from US $2.24 |
||
|
9020611085
|
9020611085
90206-11085
Washer (For Propeller Shaft)
|
90206-11085 |
— | ||
| replacement | |||||
|
9020611085
|
9020611085
90105-11H00 Bolt (For Propeller Shaft) |
90105-11H00 |
from US $2.24 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.76 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.44 |
||
