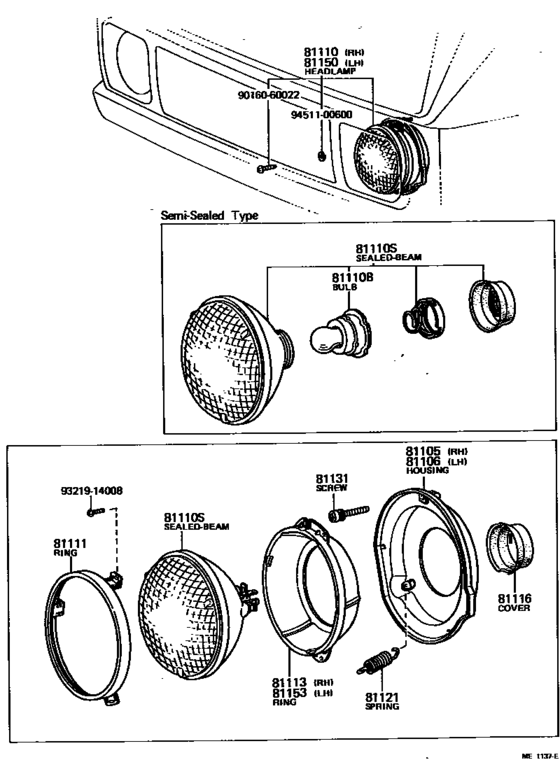

Headlamp ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-27010
Housing Sub-Assy, Headlamp, Rh
[09.1971 - 02.1979] JY16,RY1# |
81105-27010 |
— | ||
|
81106
|
81106
81106-27010
Housing Sub-Assy, Headlamp, Lh
[09.1971 - 02.1979] JY16,RY1# |
81106-27010 |
— | ||
|
81110
|
81110
81110-29145 Headlamp Assy, RhRH [09.1971 - 02.1979] JY16,RY1#..LHD |
81110-29145 |
US $120.85 |
||
|
81110
|
81110
81110-29155
Headlamp Assy, Rh
[09.1971 - 02.1979] JY16,RY1#..LHD L/SEALD BEAM |
81110-29155 |
— | ||
|
81110
|
81110
81110-29405
Headlamp Assy, Rh
[07.1975 - 02.1979] RY10,12..LHD SEMI-SEALED,YELLOW |
81110-29405 |
— | ||
|
81110B
|
81110B
90981-13014
Bulb(For Headlamp, No.1)
[07.1975 - 02.1979] RY10,12..LHD 12V 45/40W,YELLOW,12V 45/40W,YELLOW |
90981-13014 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13H00 Bulb(For Headlamp, No.1)[07.1975 - 02.1979] RY10,12..LHD 12V 45/40W,YELLOW,12V 45/40W,YELLOW |
90981-13H00 |
US $21.20 |
||
|
81110S
|
81110S
90981-01016
Sealed Beam Unit, No.1
[09.1971 - 02.1979] JY16,RY1#..LHD 12V 50/40W |
90981-01016 |
— | ||
| replacement | |||||
|
81110S
|
81110S
90981-01046
Sealed Beam Unit, No.1
[09.1971 - 02.1979] JY16,RY1#..LHD 12V 50/40W |
90981-01046 |
— | ||
|
81110S
|
81110S
90981-01018
Sealed Beam Unit, No.1
[07.1975 - 02.1979] RY10,12..LHD 12V 45/40W,*YSB,SEMI-SEALED,YELLOW |
90981-01018 |
— | ||
| replacement | |||||
|
81110S
|
81110S
90981-01H00
Sealed Beam Unit, No.1
[07.1975 - 02.1979] RY10,12..LHD 12V 45/40W,*YSB,SEMI-SEALED,YELLOW |
90981-01H00 |
— | ||
|
81111
|
81111
81111-10120
Ring, Sealed Beam Retaining
[05.1974 - 02.1979] JY16,RY1# |
81111-10120 |
— | ||
| replacement | |||||
|
81111
|
81111
81111-22150 Ring, Sealed Beam Retaining[05.1974 - 02.1979] JY16,RY1# |
81111-22150 |
from US $12.54 |
||
|
81111
|
81111
81111-12011
Ring, Sealed Beam Retaining
[09.1971 - 05.1974] JY16,RY1# |
81111-12011 |
— | ||
| replacement | |||||
|
81111
|
81111
81111-22150 Ring, Sealed Beam Retaining[09.1971 - 05.1974] JY16,RY1# |
81111-22150 |
from US $12.54 |
||
|
81113
|
81113
81113-10010 Ring, Sealed Beam Mounting, No.1 RhSEALED BEAM MOUNTING, NO.1 RH [07.1975 - 02.1979] RY10,12..LHD FOR SEMI-SEALED |
81113-10010 |
US $16.74 |
||
| replacements | |||||
|
81113
|
81113
81113-10011
Ring, Sealed Beam Mounting, No.1 Rh
[07.1975 - 02.1979] RY10,12..LHD FOR SEMI-SEALED |
81113-10011 |
— | ||
|
81113
|
81113
93219-14008 Screw, W/washer(For Bearing Cover Setting)[07.1975 - 02.1979] RY10,12..LHD FOR SEMI-SEALED |
93219-14008 |
from US $2.33 |
||
|
81113
|
81113
81113-10050 Ring, Sealed Beam Mounting, No.1 RhSEALED BEAM MOUNTING, NO.1 RH [09.1971 - 02.1979] JY16,RY1# |
81113-10050 |
US $13.10 |
||
|
81116
|
81116
81116-25050 Cover, Sealed Beam Unit[09.1971 - 02.1979] JY16,RY1# |
81116-25050 |
US $2.91 |
||
|
81121
|
81121
81121-62010 Spring, Headlamp Tension[09.1971 - 02.1979] JY16,RY1# |
81121-62010 |
from US $1.93 |
||
|
81131
|
81131
81131-10031 Screw, Headlamp Adjusting[09.1971 - 02.1979] JY16,RY1# |
81131-10031 |
from US $1.66 |
||
|
81150
|
81150
81150-29145 Headlamp Assy, LhLH [09.1971 - 02.1979] JY16,RY1#..LHD |
81150-29145 |
US $120.85 |
||
|
81150
|
81150
81150-29155
Headlamp Assy, Lh
[09.1971 - 02.1979] JY16,RY1#..LHD L/SEALD BEAM |
81150-29155 |
— | ||
|
81150
|
81150
81150-29405
Headlamp Assy, Lh
[07.1975 - 02.1979] RY10,12..LHD SEMI-SEALED,YELLOW |
81150-29405 |
— | ||
|
81153
|
81153
81153-10010 Ring, Sealed Beam Mounting, No.1 LhSEALED BEAM MOUNTING, NO.1 LH [09.1971 - 02.1979] JY16,RY1# |
81153-10010 |
US $13.10 |
||
|
81153
|
81153
81153-10050
Ring, Sealed Beam Mounting, No.1 Lh
[07.1975 - 02.1979] RY10,12..LHD FOR SEMI-SEALED |
81153-10050 |
— | ||
| replacement | |||||
|
81153
|
81153
81153-10010 Ring, Sealed Beam Mounting, No.1 LhSEALED BEAM MOUNTING, NO.1 LH [07.1975 - 02.1979] RY10,12..LHD FOR SEMI-SEALED |
81153-10010 |
US $13.10 |
||
|
9016060022
|
9016060022
90160-60022 New Genuine Part |
90160-60022 |
US $2.77 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.33 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
