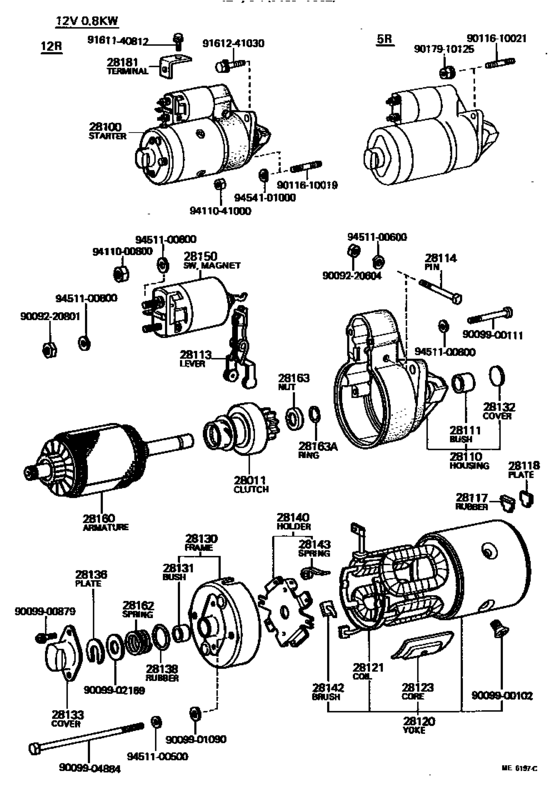

Starter ([09.1971 - 02.1979] (7109-7902)12R,5R) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-41011 Clutch Sub-Assy, Starter[09.1971 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28011-41011 |
US $90.27 |
||
|
28100
|
28100
28100-23010 Starter Assy[11.1975 - 05.1978] 12R..RY10,12 12V 0.8KW |
28100-23010 |
US $898.35 |
||
| replacement | |||||
|
28100
|
28100
28100-31030 Starter Assy[11.1975 - 05.1978] 12R..RY10,12 12V 0.8KW |
28100-31030 |
US $1,033.76 |
||
|
28100
|
28100
28100-23011 Starter Assy[05.1978 - 02.1979] 12R..RY10,12 12V 0.8KW |
28100-23011 |
US $1,033.76 |
||
| replacement | |||||
|
28100
|
28100
28100-31030 Starter Assy[05.1978 - 02.1979] 12R..RY10,12 12V 0.8KW |
28100-31030 |
US $1,033.76 |
||
|
28100
|
28100
28100-40014
Starter Assy
[09.1971 - 11.1975] 12R..RY10,12 12V 0.8KW |
28100-40014 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-31021
Starter Assy
[09.1971 - 11.1975] 12R..RY10,12 12V 0.8KW |
28100-31021 |
— | ||
|
28110
|
28110
28110-40019 Housing Assy, Starter DriveSTARTER DRIVE [09.1971 - 05.1978] 12R..RY10,12 |
28110-40019 |
US $41.20 |
||
| replacement | |||||
|
28110
|
28110
28110-40030
Housing Assy, Starter Drive
[09.1971 - 05.1978] 12R..RY10,12 |
28110-40030 |
— | ||
|
28110
|
28110
28110-40030
Housing Assy, Starter Drive
[05.1978 - 02.1979] 12R..RY10,12 |
28110-40030 |
— | ||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[09.1971 - 02.1979] 12R,5R..RY1# |
28111-51011 |
— | ||
|
28113
|
28113
28113-41011
Lever, Starter Pinion Drive
[09.1971 - 02.1979] 12R,5R..RY1# |
28113-41011 |
— | ||
|
28114
|
28114
28114-41011
Pin, Starter Drive Lever Set
[09.1971 - 02.1979] 12R,5R..RY1# |
28114-41011 |
— | ||
|
28117
|
28117
28117-41012
Rubber(For Starter Yoke)
[09.1971 - 02.1979] 12R..RY10,12 |
28117-41012 |
— | ||
|
28118
|
28118
28118-41012
Plate(For Starter Yoke)
[09.1971 - 02.1979] 12R,5R..RY1# |
28118-41012 |
— | ||
| replacement | |||||
|
28118
|
28118
28118-41013
Plate(For Starter Yoke)
[09.1971 - 02.1979] 12R,5R..RY1# |
28118-41013 |
— | ||
|
28120
|
28120
28120-36040
Yoke Assy, Starter
[11.1975 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28120-36040 |
— | ||
|
28120
|
28120
28120-89101
Yoke Assy, Starter
[09.1971 - 11.1975] 12R,5R..RY1# 12V 0.8KW |
28120-89101 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-36040
Yoke Assy, Starter
[09.1971 - 11.1975] 12R,5R..RY1# 12V 0.8KW |
28120-36040 |
— | ||
|
28121
|
28121
28121-36040 Coil, Starter Field[11.1975 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28121-36040 |
US $100.46 |
||
|
28121
|
28121
28121-40014 Coil, Starter FieldSTARTER FIELD [09.1971 - 11.1975] 12R,5R..RY1# 12V 0.8KW |
28121-40014 |
US $78.62 |
||
| replacement | |||||
|
28121
|
28121
28121-36040 Coil, Starter Field[09.1971 - 11.1975] 12R,5R..RY1# 12V 0.8KW |
28121-36040 |
US $100.46 |
||
|
28123
|
28123
28123-40012
Core, Starter Pole
[09.1971 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28123-40012 |
— | ||
|
28130
|
28130
28130-21011
Frame Assy, Starter Commutator End
[09.1971 - 02.1979] 12R,5R..RY1# |
28130-21011 |
— | ||
|
28131
|
28131
28131-20010
Bush, Commutator End Frame
[09.1971 - 02.1979] 12R,5R..RY1# STD |
28131-20010 |
— | ||
|
28131
|
28131
90099-10039
Bush, Commutator End Frame
[09.1971 - 02.1979] 12R,5R..RY1# U/S 0.3 |
90099-10039 |
— | ||
|
28131
|
28131
90099-10040
Bush, Commutator End Frame
[09.1971 - 02.1979] 12R,5R..RY1# U/S 0.5 |
90099-10040 |
— | ||
|
28132
|
28132
28132-41010
Cover, Starter Bearing(For Drive Housing)
[09.1971 - 11.1975] 12R..RY10,12 |
28132-41010 |
— | ||
| replacement | |||||
|
28132
|
28132
28166-41010
Cover, Starter Bearing(For Drive Housing)
[09.1971 - 11.1975] 12R..RY10,12 |
28166-41010 |
— | ||
|
28132
|
28132
28166-41011
Cover, Starter Bearing(For Drive Housing)
[11.1975 - 02.1979] 12R,5R..RY1# |
28166-41011 |
— | ||
|
28133
|
28133
28132-41011
Cover, Bearing(For End Frame)
[09.1971 - 02.1979] 12R,5R..RY1# |
28132-41011 |
— | ||
|
28136
|
28136
28136-41011
Plate, Starter Lock
[09.1971 - 02.1979] 12R,5R..RY1# |
28136-41011 |
— | ||
|
28138
|
28138
28138-41011
Rubber(For Starter Bearing Cover)
[09.1971 - 02.1979] 12R,5R..RY1# |
28138-41011 |
— | ||
|
28140
|
28140
28140-41012
Holder Assy, Starter Brush
[09.1971 - 11.1975] 12R..RY10,12 |
28140-41012 |
— | ||
| replacement | |||||
|
28140
|
28140
28140-41013
Holder Assy, Starter Brush
[09.1971 - 11.1975] 12R..RY10,12 |
28140-41013 |
— | ||
|
28140
|
28140
28140-41013
Holder Assy, Starter Brush
[11.1975 - 02.1979] 12R,5R..RY1# |
28140-41013 |
— | ||
|
28142
|
28142
28142-21010
Brush, Starter
[09.1971 - 02.1979] 12R,5R..RY1# |
28142-21010 |
— | ||
|
28143
|
28143
28143-40010
Spring, Starter Brush
[09.1971 - 02.1979] 12R..RY10,12 |
28143-40010 |
— | ||
| replacement | |||||
|
28143
|
28143
28143-40040
Spring, Starter Brush
[09.1971 - 02.1979] 12R..RY10,12 |
28143-40040 |
— | ||
|
28150
|
28150
28150-23010 Switch Assy, Magnet StarterMAGNET STARTER [11.1975 - 05.1978] 12R..RY10,12 |
28150-23010 |
US $112.11 |
||
| replacement | |||||
|
28150
|
28150
28150-23011 Switch Assy, Magnet StarterMAGNET STARTER [11.1975 - 05.1978] 12R..RY10,12 |
28150-23011 |
US $115.02 |
||
|
28150
|
28150
28150-23011 Switch Assy, Magnet StarterMAGNET STARTER [05.1978 - 02.1979] 12R..RY10,12 |
28150-23011 |
US $115.02 |
||
|
28150
|
28150
28150-41011
Switch Assy, Magnet Starter
[09.1971 - 11.1975] 12R..RY10,12 |
28150-41011 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-33020 Switch Assy, Magnet Starter[09.1971 - 11.1975] 12R..RY10,12 |
28150-33020 |
US $135.41 |
||
|
28160
|
28160
28160-40014 Armature Assy, Starter[09.1971 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28160-40014 |
US $234.42 |
||
|
28162
|
28162
28162-41011
Spring, Starter Brake
[09.1971 - 02.1979] 12R,5R..RY1# |
28162-41011 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[09.1971 - 02.1979] 12R,5R..RY1# |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[09.1971 - 02.1979] 12R,5R..RY1# |
90099-07047 |
— | ||
|
28181
|
28181
28181-20010
Terminal, Starter
[09.1971 - 05.1972] 12R..RY1# |
28181-20010 |
— | ||
| replacement | |||||
|
28181
|
28181
28181-20011
Terminal, Starter
[09.1971 - 05.1972] 12R..RY1# |
28181-20011 |
— | ||
|
9009220604
|
9009220604
90092-20604
Nut, Wire Adjusting, No.1
|
90092-20604 |
— | ||
| replacement | |||||
|
9009220604
|
9009220604
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
|
9009220801
|
9009220801
90092-20801
New Genuine Part
|
90092-20801 |
— | ||
| replacement | |||||
|
9009220801
|
9009220801
90099-05809
New Genuine Part
|
90099-05809 |
— | ||
|
9009900102
|
9009900102
90099-00102
New Genuine Part
|
90099-00102 |
— | ||
|
9009900111
|
9009900111
90099-00111
New Genuine Part
|
90099-00111 |
— | ||
|
9009900879
|
9009900879
90099-00879
Screw, W/washer(For Bearing Cover Setting)
|
90099-00879 |
— | ||
|
9009901090
|
9009901090
90099-01090
New Genuine Part
|
90099-01090 |
— | ||
|
9009902169
|
9009902169
90099-02169
New Genuine Part
|
90099-02169 |
— | ||
|
9009904884
|
9009904884
90099-04884
Bolt(For Starter Commutator End Frame Setting)
|
90099-04884 |
— | ||
|
9011610019
|
9011610019
90116-10019 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10019 |
US $2.48 |
||
|
9011610021
|
9011610021
90116-10021 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10021 |
US $2.62 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161241030
|
9161241030
91612-41030 Bolt (for Transmission Control Cable Bracket) |
91612-41030 |
US $2.18 |
||
| replacement | |||||
|
9161241030
|
9161241030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9411000800
|
9411000800
94110-00800
Nut(for Steering Damper)
|
94110-00800 |
— | ||
| replacement | |||||
|
9411000800
|
9411000800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9454101000
|
9454101000
94541-01000 New Genuine Part |
94541-01000 |
US $3.05 |
||
